Example Function Blocks for Data Exchange
2. Exchanging Analog Signal Data
This function block is registered and connected
to input an analog signal from Monitor Plus.
The following settings are made in this example.
ITEM
Data area
Leading address
Number of Control blocks
Number of Operation blocks
Number of External Controller
blocks

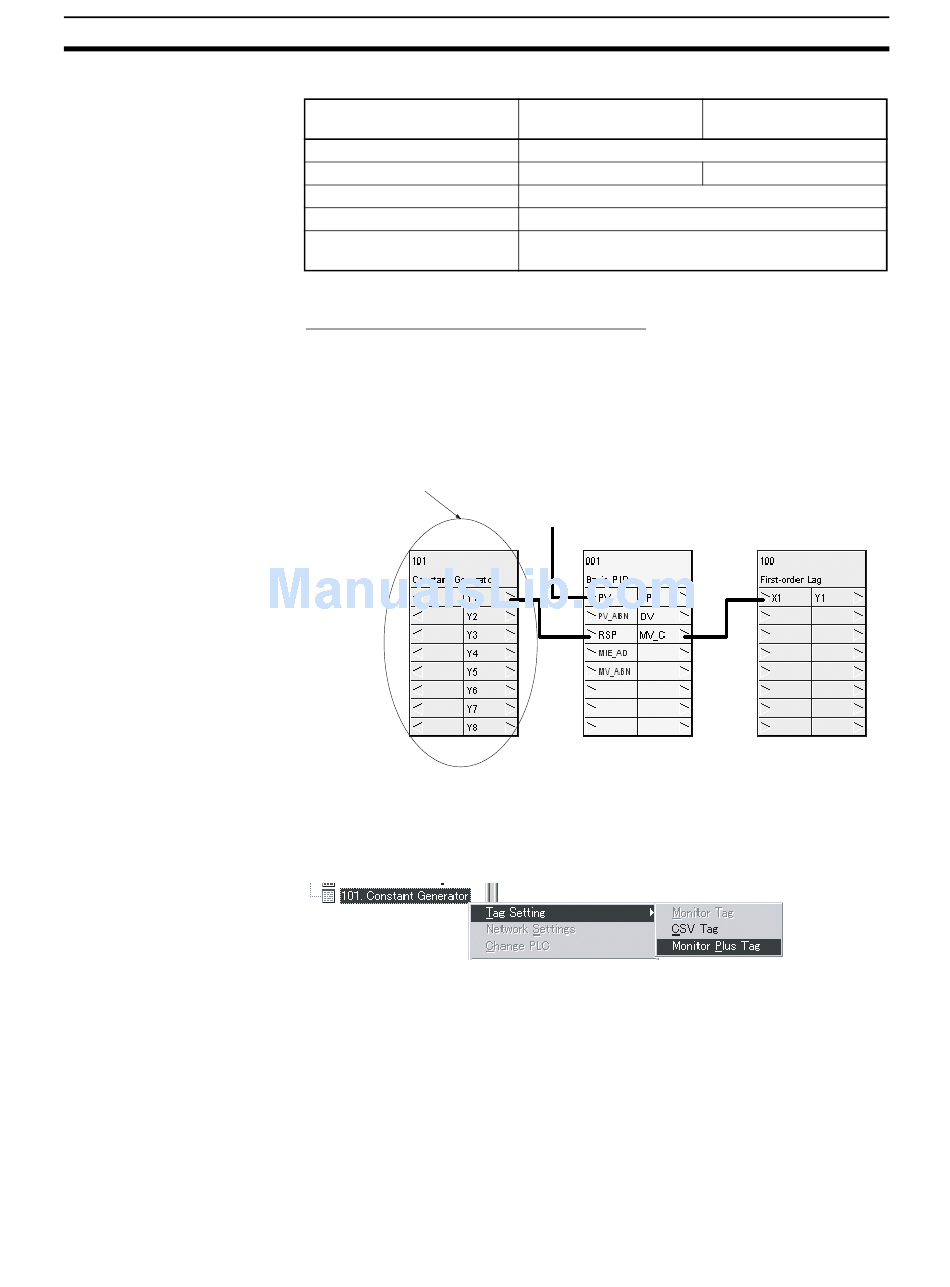

2-1 Setting Analog Data from Monitor Plus
Example: Setting the Basic PID block's RSP value from Monitor Plus
This step registers a function block that inputs an analog signal from Monitor
Plus to the Basic PID block. In this case, an analog input is being sent from
Monitor Plus, so the Constant Generator (Block Model 166) is registered and
connected.
Setting the Tag for Monitor Plus
This step sets the tags for Monitor Plus needed to set an analog signal in the
Constant Generator (Block Model 166) from Monitor Plus. This tag is specified
from Monitor Plus to set the analog value.
Send All Blocks
(Block Model 462)
3:D (DM area)
00000
32 (default setting)
5 (Five are used in this example.)
0
PV
(Feedback from
the whole system)
Section 3-2
Receive All Blocks
(Block Model 461)
10000
65
