Segment Program 2 Screens

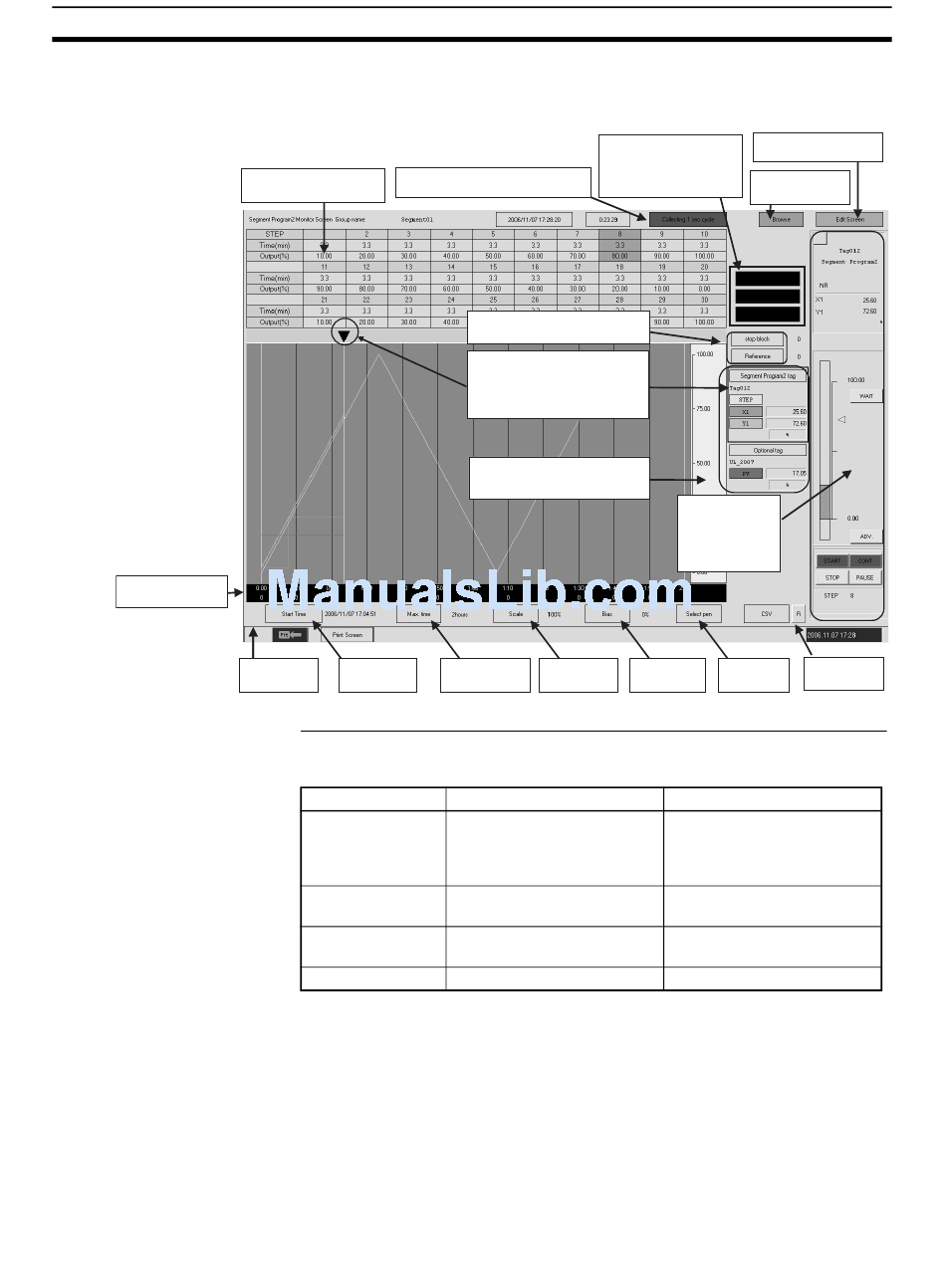

4-11-2 Segment Program 2 Monitor Screen Examples and Operations

Horizontal axis display
Top line: Hour and minutes
Bottom line: Day
112
Segment Program 2 present values are displayed in a trend graph.
Shows segment data collection status.
Click to display details for any step.
Click to display the Collection Status Monitor Dialog
Steps being executed are displayed in
Box.
green.
Time scroll
Sets the time from
Shifts one half screen which data will be
to the past. displayed.
Data That Can Be Monitored on the Segment Program 2 Monitor Screen
The following data can be displayed simultaneously on the Segment Program
2 Monitor Screen.
Data
Step data
Program output Y1
(ITEM 008)
Reference input X1
(ITEM 007)
Optional tag
Note Step Data Display
When the Segment Program 2 Monitor Screen is displayed first, the step data
is not displayed. (Step data is displayed by starting segment data collection.)
To check in advance the step data executed on the Segment Program 2 Mon-
itor Screen, move to the Segment Program 2 Edit Screen.
With the move to the Segment Program 2 Edit Screen, new Segment Program
2 step data is received from the Loop Controller and the display is updated on
the Segment Program 2 Monitor Screen.
The following displays will be shown for
the Segment Program 2 status.
• WAIT: Waiting
• GOAL: Segment finished
• Input error: An input error occurred.
Used to change the following parameter settings.
• Stop block operation command (ITEM 000)
• Reference input disable (ITEM 020)
Data values (default: present values) at the point
displayed by this mark are displayed in the frame.
The mark can be moved by dragging it with the
cursor.
Press the F5 Key to return the mark to the present
position.
The graph vertical axis display (upper and lower
limits and division number) can be set for each
selected tag (Segment Program 2 tags or optional
tags).
Sets the maximum Used to zoom the
width for the time axis scale displayed.
displayed on the screen.
Color of line on graph
Yellow
Light blue
Green
Purple
Section 4-11
Click to move to the Segment
Program 2 Edit Screen.
Click to browse Segment
Program 2 trend files
collected previously.
The faceplate for the
Segment Program 2 block
is displayed.
For details on the faceplate,
refer to 4-7-2 Basic
Displays and Operations.
Used to add bias to Used to select the Time scroll
the display. pen to be displayed. Shifts one half screen
to the future.
Details
Step data in the Loop Control-
ler is displayed on the screen
in advance, overlapping other
tag values.
---
---
Specify any tag
