Creating Graphic Screens
Common Settings for
Graphic Objects
Showing or Hiding Tag
Settings
172
3. The image file selected from the menu will be displayed for the image ob-
ject.
The following procedure can also be used to display an image on the Graphic
Screen.
1. Copy the image using another drawing program and then select Edit -
Paste (Ctrl+V) in the Graphic Screen Creation Window to paste the image.
2. Select Edit - Create/Paste Objects in the Graphic Screen Creation Win-
dow, and then specify and insert the image file.
This section describes the settings made in common for graphic objects.
Graphic object displays are deleted according to tag values.

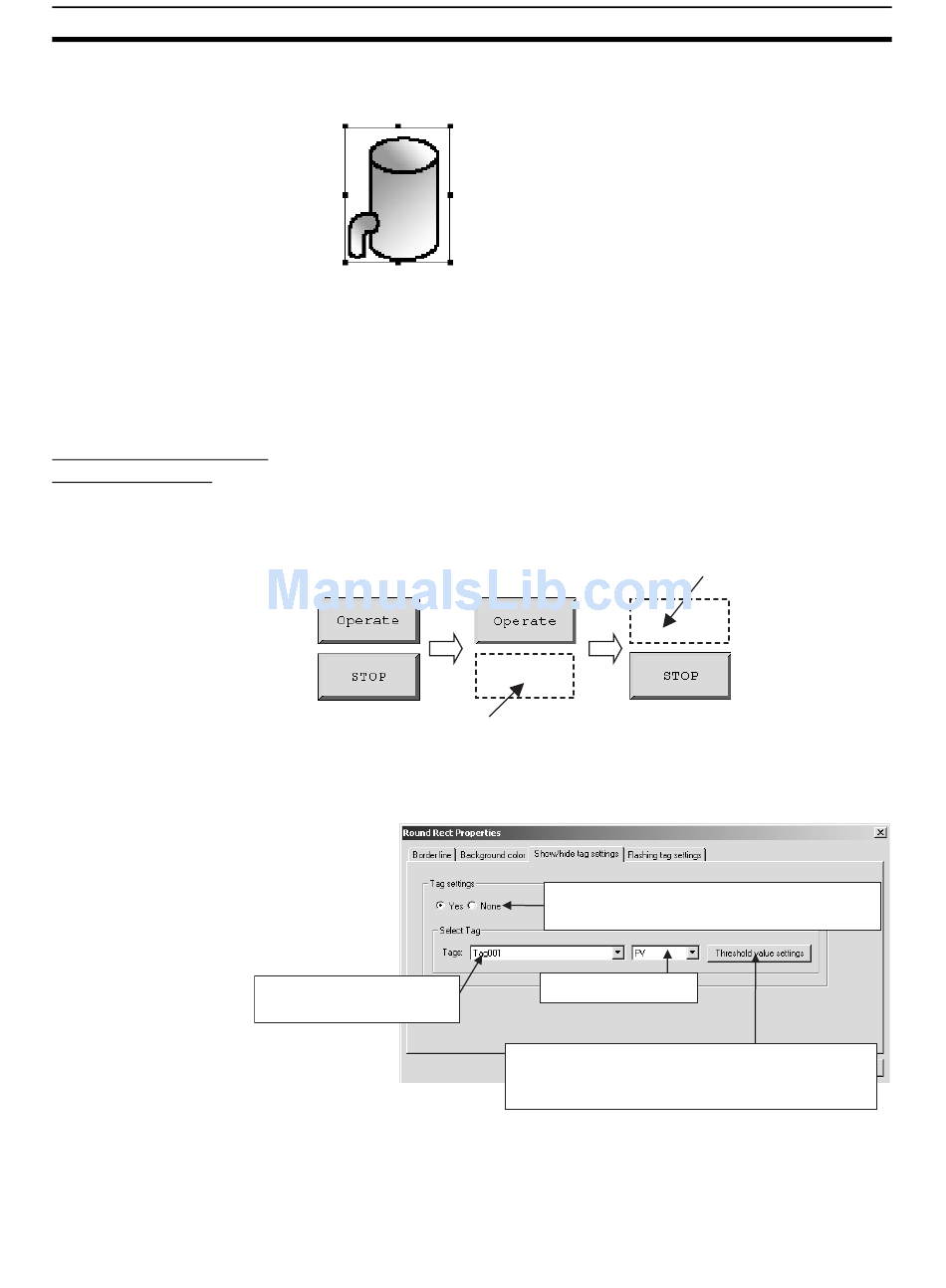

Example: Displaying Usable Switches Only
Switches to start and
stop a pump
Example: Figure (Rectangle with Rounded Corners)
Show/Hide Tag Settings Tab
Select the tag name for control-
ling the graphic object display.
Hidden while
pump is stopped
Select whether the show/hide tag settings function
is to be used.
Select the tag ITEM.
Set the condition for the graphic object to be displayed.
The screen displayed will depend on the tag type (contact
ITEM or analog ITEM). (See note.)
Section 5-4
Hidden during pump
operation
