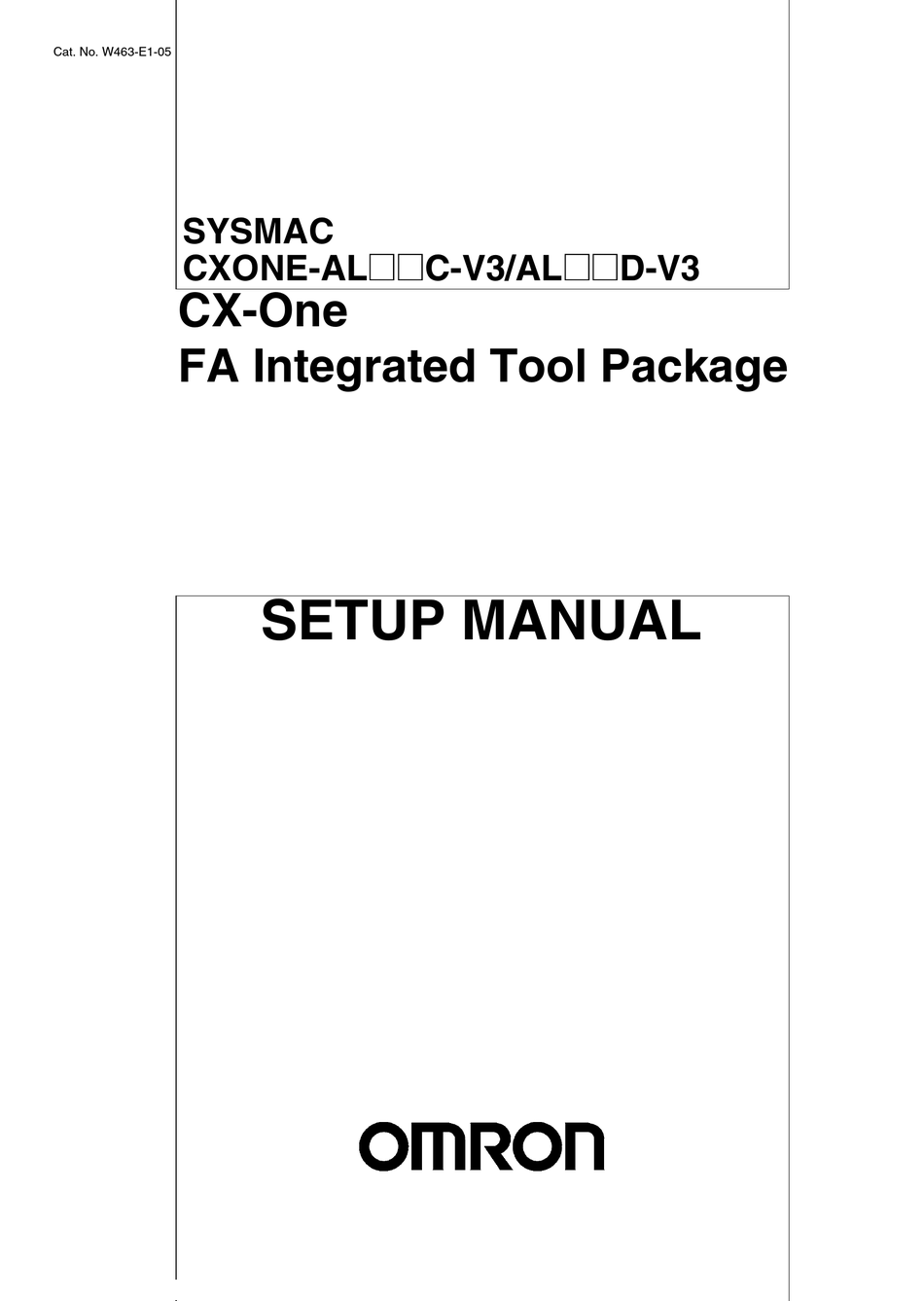

Cat. No. W463-E1-05
SYSMAC
CXONE-AL@@C-V3/AL@@D-V3
CX-One
FA Integrated Tool Package
SETUP MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX-ONE - SETUP 02-2009 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron CX-ONE - SETUP 02-2009

Summary of Contents for Omron CX-ONE - SETUP 02-2009

  • Page 1 Cat. No. W463-E1-05 SYSMAC CXONE-AL@@C-V3/AL@@D-V3 CX-One FA Integrated Tool Package SETUP MANUAL...
  • Page 2 CXONE-AL@@C-V3/AL@@D-V3 CX-One FA Integrated Tool Package Setup Manual Revised February 2009...
  • Page 4  OMRON, 2008 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of OMRON.

  • Page 6: Table Of Contents

    Overview ........
  • Page 7 TABLE OF CONTENTS viii...
  • Page 8 Please read this manual carefully and be sure you understand the information provided before attempting to install or operate the CX-One. Be sure to read the precautions provided in the following section. Precautions provides general precautions for using the CX-One.
  • Page 10 Warranty and Limitations of Liability WARRANTY (1) The warranty period for the Software is one year from either the date of purchase or the date on which the Software is delivered to the specified location. (2) If the User discovers a defect in the Software (i.e., substantial non-conformity with the manual), and returns it to OMRON within the above warranty period, OMRON will replace the Software without charge by offering media or downloading services from the Internet.
  • Page 11 Application Considerations SUITABILITY FOR USE THE USER SHALL NOT USE THE SOFTWARE FOR A PURPOSE THAT IS NOT DESCRIBED IN THE ATTACHED USER MANUAL.
  • Page 12 The license fee of the Software does not include service costs, such as dispatching technical staff. ERRORS AND OMISSIONS The information in this manual has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.

  • Page 14: Precautions

    Intended Audience ........

  • Page 15: Intended Audience

    (DeviceNet Master/Slave or CompoWay/F Slave), the oper- ating mode of the wrong node is changed, or the other node is not in a suit- able status to receive the program or parameter data or the operating mode change.
  • Page 16 Safety Precautions Observe the following precautions when using the CX-One. • When saving or opening a project file, always confirm the location of the folder and the file name before executing the save or open. The CX-One automatically switches the folder when saving and opening.
  • Page 17 Safety Precautions xviii...

  • Page 18: Overview

    CX-One Features ........

  • Page 19: Overview Of Cx-One

    The CX-One FA Integrated Tool Package integrates all of the Support Soft- ware for OMRON PLCs and Components. Although previously it was neces- sary to purchase, install, run, and connect online to the PLC separately for the Support Software for each Unit, the CX-One now provides an integrated development environment based on the CPS (Component and Network Pro- file Sheet) for each OMRON Unit or Component.

  • Page 20: Confirmation Of Cx-One Package Contents

    Installable Support Software Other included data CX-One Ver. 3.1 CXONE-AL@@C- CX-Programmer Ver. 8 • OMRON Function Blocks (FB) V3/AL@@D-V3 • Smart Active Parts (Smart Active Parts) CX-Integrator Ver. 2 • CPS files CX-Simulator Ver. 1 • Manual (PDF) CX-Designer Ver. 3 CX-Motion Ver.
  • Page 21 Confirmation of CX-One Package Contents Section 1-2 CX-One Contents The contents of CX-One are listed in the following table. Please confirm that you have received everything. CXONE-AL@@C-V3/CXONE-AL@@D-V3 CX-One FA Integrated Tool Package Installation Disks (CXONE-AL@@C-V3: CD-ROM) 3 disks Installation Disks (CXONE-AL@@D-V3: DVD) 1 disk CX-One Introduction Guide (Cat.
  • Page 22 The Online Registration Dialog Box will be displayed even if online registration has already been completed. If this happen, select the Do not display this dia- log again option and click the Exit Button. Also use this procedure in the fol- lowing cases.

  • Page 23: Support Software In Cx-One

    Support Software in CX-One 1-3-1 Support Software in CX-One and Reference Manuals The following tables lists the Support Software that can be installed from CX- One along with the startup methods and the reference manuals for each. Support Software Outline...
  • Page 24 Application software that automatically out- Started by selecting Exe- Faceplate Auto-Builder for Builder for NS puts screen data as project files for NS- cute - Create Tag File - NS Operation Manual (Cat. series PTs from tag information in function Start NSFP from the CX- No.
  • Page 25 1-3-2 Starting Support Software in CX-One Support Software in CX-One can be started from the I/O tables in the CX-Pro- grammer, from the Network Configuration Window in the CX-Integrator, or from the Tools Menus as shown in the following diagram. This is called the Specialized Support Tool startup function and it is enabled when the CX-Pro- grammer and other Support Software is installed from the CX-One.

  • Page 26: System Requirements

    • New project files are automatically created for the newly opened Support Software. Starting with or without If Open - Save As is selected after starting Support Software, the save to Inheriting Settings folder will be the same as the one used with the CX-Programmer.
  • Page 27 Microsoft for Windows Vista (WinHlp32.exe) is installed. Refer to the Microsoft homepage listed below or contact Microsoft for details on installing the file. (The download page is automatically displayed if the Help files are opened while the user is connected to the Inter- net.) http://support.microsoft.com/kb/917607/en-us 2) The following restrictions apply to some application operations.
  • Page 28 Always installed. (See note 1.) Note (1) Approximately 420 MB of unused space is required in the system drive (e.g., the C drive). (2) If the complete CX-One package is installed, approximately 2.5 GB of hard disk space will be required (including workspace required for instal- lation).
  • Page 29 System Requirements Section 1-4...

  • Page 30: Installation And Uninstallation

    2-1-2 Installing the CX-One........CX-One Maintenance ......... . .

  • Page 31: Installing The Cx-One

    Installation procedure. • The CX-One cannot be installed from a network drive, such as a CD drive or hard disk drive shared on a network. Always install the CX-One from a CD drive on the computer onto which the software is being installed.
  • Page 32 English (United States). When the OK Button is clicked, a splash window for the CX-One will be dis- played, followed by the Setup Wizard. 3. If the CX-Server is already installed on the computer, the following dialog box will be displayed as a prompt to delete the older version of the CX- Server.
  • Page 33 Dialog Box When an Earlier Version of Other Support Software Is Installed Click the OK Button and uninstall the earlier version of the Support Soft- ware. If the Cancel Button is clicked, CX-One installation will be canceled. 4. The CX-One Setup Wizard will be started. Click the Next Button.
  • Page 34 5. The License Agreement Dialog Box will be displayed. Read the license agreement completely and if you accept all of the terms, select the I accept the terms of the license agreement Option and click the Next Button. 6. The User Information Dialog Box will be displayed.
  • Page 35 Installing the CX-One Section 2-1 7. The Regional Information Dialog Box will be displayed. Select the region in which the software was purchased and click the Next Button. 8. The Choose Destination Location Dialog Box will be displayed. Select the destination location and click the Next Button. By default, the CX-One will be installed in C:\Program Files\OMRON\CX-One\.
  • Page 36 (1) CX-One installation will require approximately the same amount of time (approximately 15 to 40 minutes) regardless of whether Complete or Cus- tom is selected. As a rule, select Complete and install the entire package at the same time provided that there is sufficient disk space available.
  • Page 37 @ CX-Server (Selected and grayed out.) @ PLC Tools (Selected and grayed out.) 10. If Complete was selected or if Custom was selected and the Smart FB Li- brary feature was selected, the Choose Destination Location of the OMRON FB Library Dialog Box will be displayed.
  • Page 38 Installing the CX-One Section 2-1 Specify the location to add a shortcut in the program folder of the Windows Start Menu and click the Next Button. 12. The Ready to Install the Program Dialog Box will be displayed. Click the Install Button. The Installer will start the installation.
  • Page 39 Installing the CX-One Section 2-1 14. The following message will be displayed. Click the Continue Anyway But- ton. 15. The following dialog box will appear after the USB device driver has been installed.
  • Page 40 Click the Finish Button. Installation of the CX-One will be continued. 16. The following dialog box will be displayed. Replace the installation disk (CD-ROM) as instructed by the message and click the OK Button. This dialog box is not displayed if the software is being installed from a DVD. Alternatively:...
  • Page 41 Select to restart the computer manually at a later time. Select the desired option and click the Finish Button. If the Yes, I want to restart my computer now Option is selected, the computer will be restarted and then the Readme file will be displayed.

  • Page 42: Cx-One Maintenance

    Files\OMRON. By default, the project files and other files that were creat- ed by the Support Software (e.g., .cxp project files for CX-Programmer) will be in this directory. If this data is to be used by the CX-One, we rec- ommended moving the files to suitable folders after installing CX-One.
  • Page 43 CX-Server bundled with the CX-One, install only the CX-Position and NOT the CX-Server. (A message will be displayed if the version is lower.) If a version of CX-Server that is lower than the version with the CX-One is installed, the CX-One will not operate properly.
  • Page 44 Clear the selections for features that are to be deleted. • Select the features to be added. • Be sure that all features that are not to be deleted are selected. • Clear the selections for features to be removed. Note Any Support Software feature that is not selected here will be deleted from the compute.
  • Page 45 CX-One Support Software has been deleted by accident. 1,2,3... 1. Insert disk 1 of the CX-One installation disks (CD-ROM) into the CD-ROM drive. 2. The Choose Setup Language Dialog Box will be displayed and the lan- guage of the operating system running on the computer will be selected automatically.
  • Page 46 CX-One Maintenance Section 2-2 3. A splash window for the CX-One will be displayed, and the re-installation process will start. The CX-One Installation Wizard will be displayed. Select the Repair Option and click the Next Button. The previously installed CX-One Support Software will be re-installed.
  • Page 47 Section 2-2 2-2-3 Removing all the Support Software in the CX-One Use the following procedure to delete all of the Support Software in the CX- One from the computer. Note The CX-Server will not be deleted from the computer even if all CX-One Sup- port Software is deleted.
  • Page 48 5. The following dialog box will be displayed to confirm that all CX-One soft- ware is to be removed. Click the Yes Button to start the Uninstaller that will delete the CX-One and then follow the messages in the dialog boxes to de- lete the CX-One.
  • Page 49 CX-Server. Note (1) Do not uninstall the CX-Server if there are other programs on the com- puter that use it as the communications driver, e.g., the CX-Programmer. If the CX-Server is uninstalled, it will no longer be possible to use these other programs.
  • Page 50 CX-One Maintenance Section 2-2 3. An uninstall confirmation dialog box will be displayed. Click the Yes Button. 4. The CX-Server will be uninstalled. When the uninstallation has been completed, the following dialog box will be displayed. Click the Finish Button. The Add/Remove Programs Dialog Box will be displayed again.
  • Page 51 CX-One Maintenance Section 2-2...

  • Page 52: Application Upgrades Using Auto Update

    3-2-2 Starting Auto Update ........

  • Page 53: Outline

    CX-One Support Soft- ware are automatically found. The CX-One installed on the personal computer can be updated to the latest version by installing the updates that are found. • The auto update function is automatically enabled when the CX-One is installed.

  • Page 54: Starting Auto Update

    Click the OK Button. 2. The applicable updates will be searched for. 3. The CX-One Upgrade Utility will be started and then a list of installed ap- plications will be displayed. Click to display applicable updates.
  • Page 55 Note The updates that will be displayed will depend on the CX-One ver- sion and individual applications installed on the personal computer. • Click the Download only Button to save the update files to the computer for later installation. For details, refer to Downloading Update Files for Later Installation later in this section.
  • Page 56 Taiwan Korea South-east Asia, India, the Pacific region Note If you have not registered, click click here to jump to the user reg- istration website. 7. Click the Install Button to download the selected updates. (If more than one update has been selected, they will be downloaded one-by-one in the order listed.)

  • Page 57: Checking Update Results

    2. The Browse For Folder Dialog Box will be displayed. Select the folder in which to save the update files and click the OK Button. Downloading the update files will be started. 3. Once the update files have been downloaded, a message saying the download has been completed will be displayed in the CX-One Upgrade Utility Dialog Box.

  • Page 58: Periodic Notification Of Auto Updates

    2.00_6 Note The update names depend on the application and update version. Click the History Button in the CX-One Upgrade Utility Dialog Box to display a list of updates and applications installed on the computer. Each version number can be checked.

  • Page 59: Enabling Periodic Notification Of Auto Updates

    Use the following procedure to enable periodic notification of auto updates. Priodic update notification is enabled/disabled and the notification schedule settings are made using this procedure. 1. To start CX-One Upgrade Utility, select Program − OMRON − CX-One − 1,2,3... CX-One Auto Update from the Windows Start Menu.

  • Page 60: Update Notification

    If periodic notification of auto updates is enabled, new updates will be searched for at the first login after the set time has elapsed. The CX-One Upgrade Utility will be started if any applicable update is found. There will be...
  • Page 61 Periodic Notification of Auto Updates Section 3-3...

  • Page 62: Revision History

    Revision History A manual revision code appears as a suffix to the catalog number on the front cover of the manual. Cat. No. W463-E1-05 Revision code The following table outlines the changes made to the manual during each revision. Page numbers refer to the previous version.
  • Page 63 Revision History...
