Creating Graphic Screens
Creating Graphic Screens
1,2,3...
Saving Graphic Screens
1,2,3...
Graphic objects are placed on Graphic Screens. The object placed on a
Graphic Screen in this example is a data box.

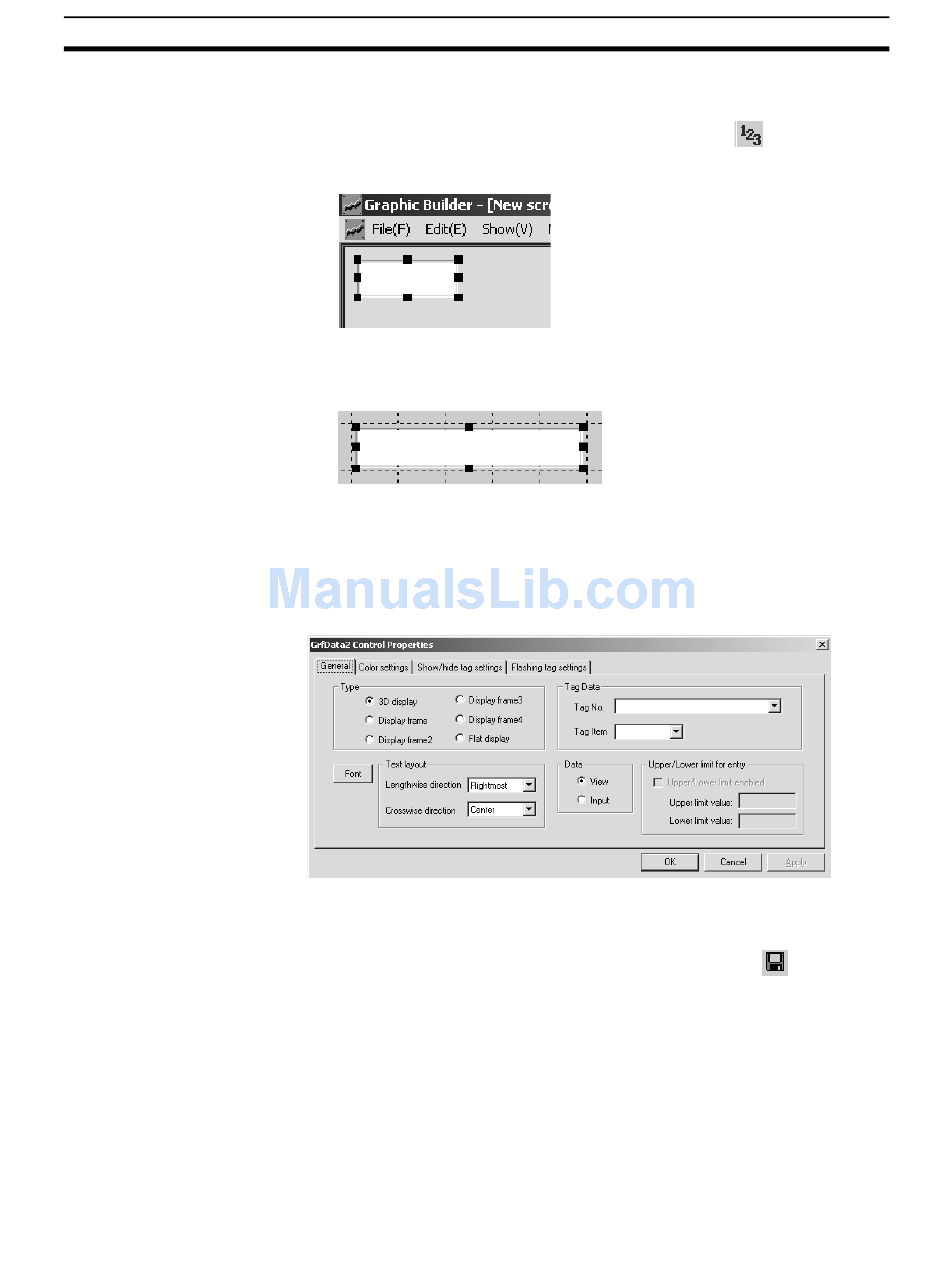

1. Select Insert Functional Object - Data (or click the
ject Toolbar).
The data box will be displayed on the top left of the screen as shown below.
2. Double-click the data box to select it, and drag it to the display position.
3. Drag any of the eight points on the data box frame to enlarge or reduce its
size.
4. Right-click the data box and select Properties - GrfData2 Control Object
from the pop-up menu.
5. The GrfData2 Control Properties Dialog Box will be displayed. Make the
settings for the data box and click the OK Button.
For details on setting graphic objects, refer to 5-4-6 Setting Graphic Ob-
jects.
6. Place other graphic objects using the same procedure as above.
Graphic Screens that have been created are saved one by one.
1. Select Save or Save As from the File Menu, or click the
2. The following dialog box will be displayed. Input the file name and click the
Save Button.
One Graphic Screen will be saved (with a GRF file name extension).
Section 5-4
icon on the Ob-
icon.
149
