Example Function Blocks for Data Exchange

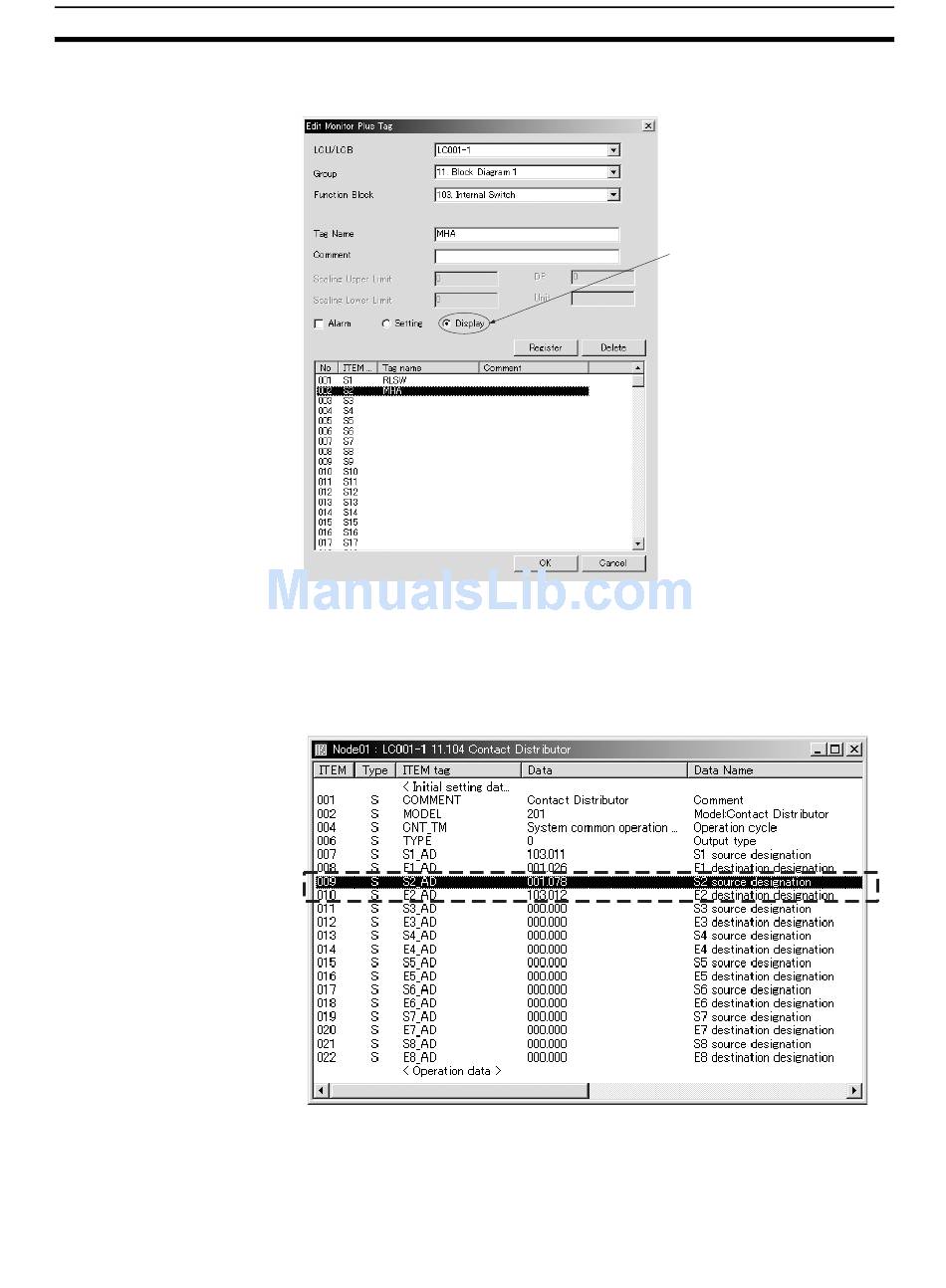

1,2,3... 1. Set the tag for Monitor Plus in the Internal Switch (Block Model 209) block's
S2 ITEM. Set the tag type to Display. Set the tag name to MHA.
2. Set the Contact Distributor block's S2_AD ITEM (S2 source designation)
to the Basic PID block's MHA ITEM (High MV Limit Output). In this case,
S2_AD is set to 001078.
3. Set the Contact Distributor block's E2_AD ITEM (E2 destination) to the In-
ternal Switch (Block Model 209) block's S2 ITEM. In this case, E2_AD is
set to 103012.
