Batch Trend Screens
Note
CSV File Output
Automatic Saving

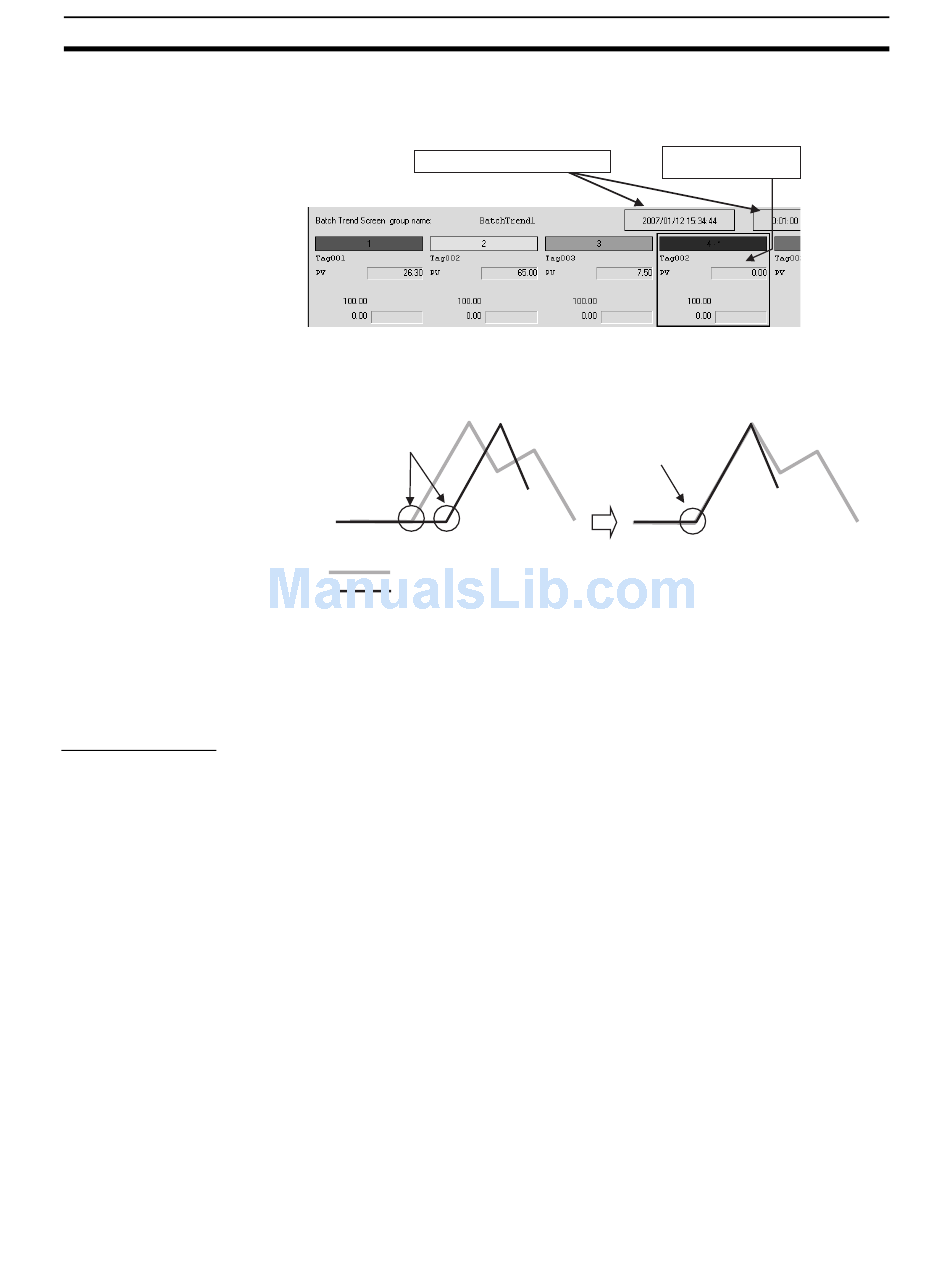

4. The status of the past batch trend files for the selected pen will be dis-
played. While a batch trend file is being referenced, the Batch Trend
Screen will appear as shown below.
The time and the elapsed time are displayed for
the batch trend file collection for the selected pen.
Use the time shift setting in the Pen Settings Dialog Box to shift the graph for
past and currently collected trend data as shown below.
The time for starting
the data collection is
shifted.
: Past trend data
: Currently collected trend data
5. To end the batch trend file reference status, click the Browse Button to dis-
play the Pen Settings Dialog Box and select the Browse collecting data op-
tion.
The batch trend file reference status will be ended when moving to another
screen.
Data collected using the Batch Trend Screen (data grouped by date, time, or
tag number) can be output in CSV (Comma Separated Values) file format
either automatically or manually.
The following settings are used when configuring screens (i.e., when register-
ing trend screens).
• Automatic save enable
• Save filter name and save destination folder
The CSV file is automatically saved according to these settings when trend
data collection stops (when the trigger tag condition is not satisfied, or when a
batch stop is requested manually).
An asterisk is displayed next to the
pen number where the past batch
trend file is being referenced.
The data collection start times
are matched using the time
shift function.
