Trend Screens
1,2,3...
98
• Save period (1, 2, 3, 4, 6, 8, 10, 12, 18, 20, 24, 48, 72, 96, 120, or 240 h)
• Save file name and folder
Once automatic saving has been enabled and the monitor process has been
started (by clicking the Run Button in the Main Window or the Run Button in
the Setup Dialog Box), the automatic save function will be started. An CSV file
will be saved periodically on the hour at the specified save period. Refer to
Registering Trend Screens under 5-5 Screen Configuration for details on
automatic save settings.
Manual Saving
Use the following procedure.

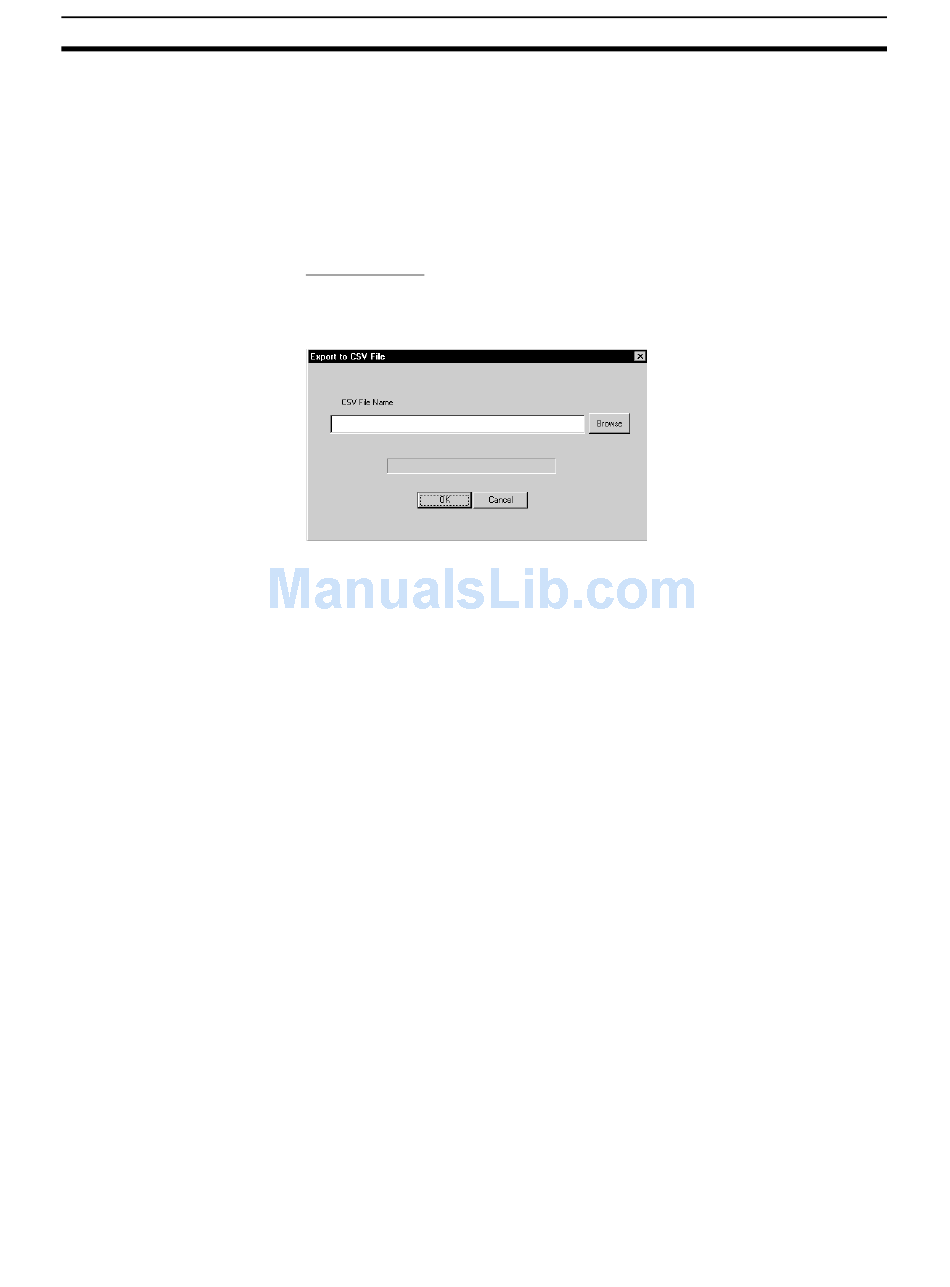

1. Press the CSV Button to display the Export to CSV File Dialog Box.
2. Specify a name for the CSV file, and click the OK Button. A CSV file will be
created. (By clicking the Browse Button, the CSV file can be created in a
desired folder. The default filename for Realtime Trend data is Trrl.csv and
the default filename for Historical Trend data is Trhl.csv.) The contents of
CSV files created are as follows:
Realtime Trend
Real-time Trend(carriage return)
<Screen_name>(carriage return)
<Date_exported>(comma)<Time_exported>(carriage return)
(comma)(comma)<Tag_name_1>(comma)<Tag_name_2>(comma)...(comma
)<Tag_name_8>(carriage return)
(comma)(comma)<ITEM_tag_1>(comma)<ITEM_tag_2>(comma)...(comma)
<ITEM_tag_8>(carriage return)
<Date_of_trend_data>(comma)<Time_of_trend_data>(comma)<Data_1>(co
mma)<Data_2>(comma)...(comma)<Data_8>(carriage return)
Note Data for tag names that have not been registered will be 0.
Historical Trend
Historical Trend(carriage return)
<Screen_name>(carriage return)
<Date_exported>(comma)<Time_exported>(carriage return)
(comma)(comma)<Tag_name_1>(comma)<Tag_name_2>(comma)...(comma
)<Tag_name_8>(carriage return)
(comma)(comma)<ITEM_tag_1>(comma)<ITEM_tag_2>(comma)...(comma)
<ITEM_tag_8>(carriage return)<Date_of_trend_data>(comma)<Time_of_tre
nd_data>(comma)
<Data_1>(comma)<Data_2>(comma)...(comma)<Data_8>(carriage return)
Note Data for tag names that have not been registered will be 0.
Example: The following screen shows how Realtime Trend data exported
to spreadsheet software (e.g., Microsoft Excel) will be displayed.
