Trend Screens
Changing Pen Settings
1,2,3...

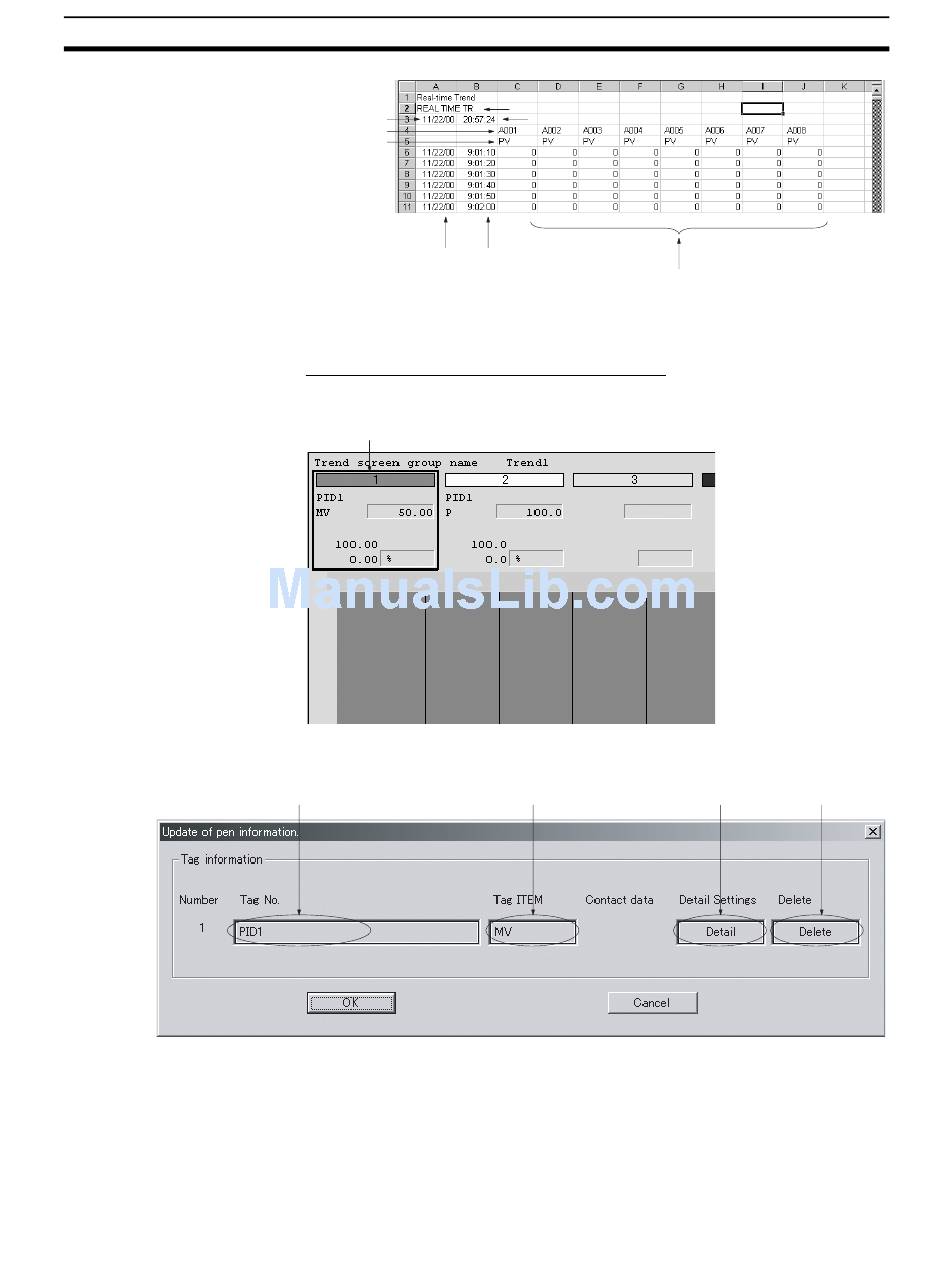

Date exported
Tag name
ITEM tag
Data of trend data
Pens can be changed, deleted, or added to Trend Screens without shutting
down the CX-Process Monitor Plus.
Changing/Deleting Pens from the Dialog Box
1. Double-click the pen selection area.
Double-click.
2. The following dialog box will be displayed. Click where indicated by num-
bers 1 to 4 in the following diagram to set the items.
(1)
(1) Tag Name Selection for CSV Tag
Displays a list of tags registered in CX-Process Monitor Plus.
(2) ITEM Tag Selection
Set the type of ITEM to use to narrow the ITEM list displayed for the
tag names above.
Screen name
Time exported
Time of trend data
ITEM tag data
(2)
Section 4-9
(3) (4)
