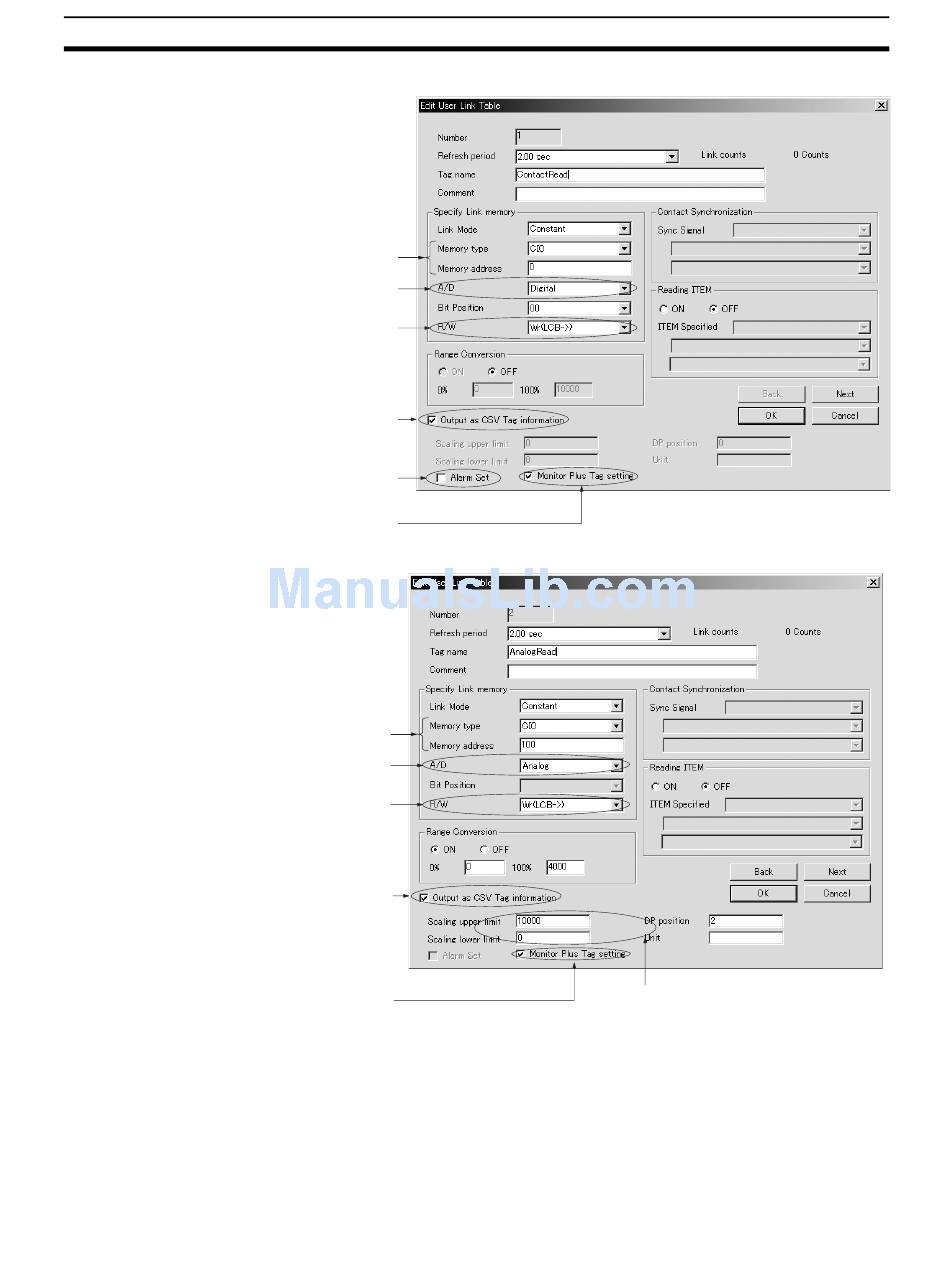

Data Exchange Method
Setting/Monitoring Digital
Data through the User
Link Table
Setting/Monitoring Analog
Data through the User
Link Table
Note
Specify the CPU
Unit's data area.
Select Contact or
Analog.
When monitoring,
select Wr (LCB").
When setting,
select Rd ("LCB).
Always select this
option.
Select this option
when specifying
an alarm tag.
Always select this
option.
Specify the CPU
Unit's data area.
Select Contact or
Analog.
When monitoring,
select Wr (LCB").
When setting,
select Rd ("LCB).
Always select this
option.
Always select this
option.
1. The link memory values can be read directly in Monitor Plus when the R/
W setting is set to Wr (LCB → ) and reading from the ITEM is disabled.
When reading the link memory values directly this way, set the Link Mode
to an external sync and set the external sync contact to the System Com-
mon Block's 020: U0 (always output 0) ITEM.
Section 3-1
Set the range for analog data.
Always make these settings.
