– Using a Cylinder Dial Bore Gauge - VAS6078- measure in a
diagonal sequence at three positions transversely -A- and lon‐
gitudinally -B-.
♦ Deviation from specified size: maximum 0.08 mm
Basic Dimension
in mm
5.4

New Connecting Rod, Separating

New connecting rods might not be separated at the location
where they should be. If the connecting rod bearing cap cannot
be removed by hand, proceed as follows:
– Label which cylinder goes with the connecting rod -item 11-
⇒ Item 11 (page 78) .

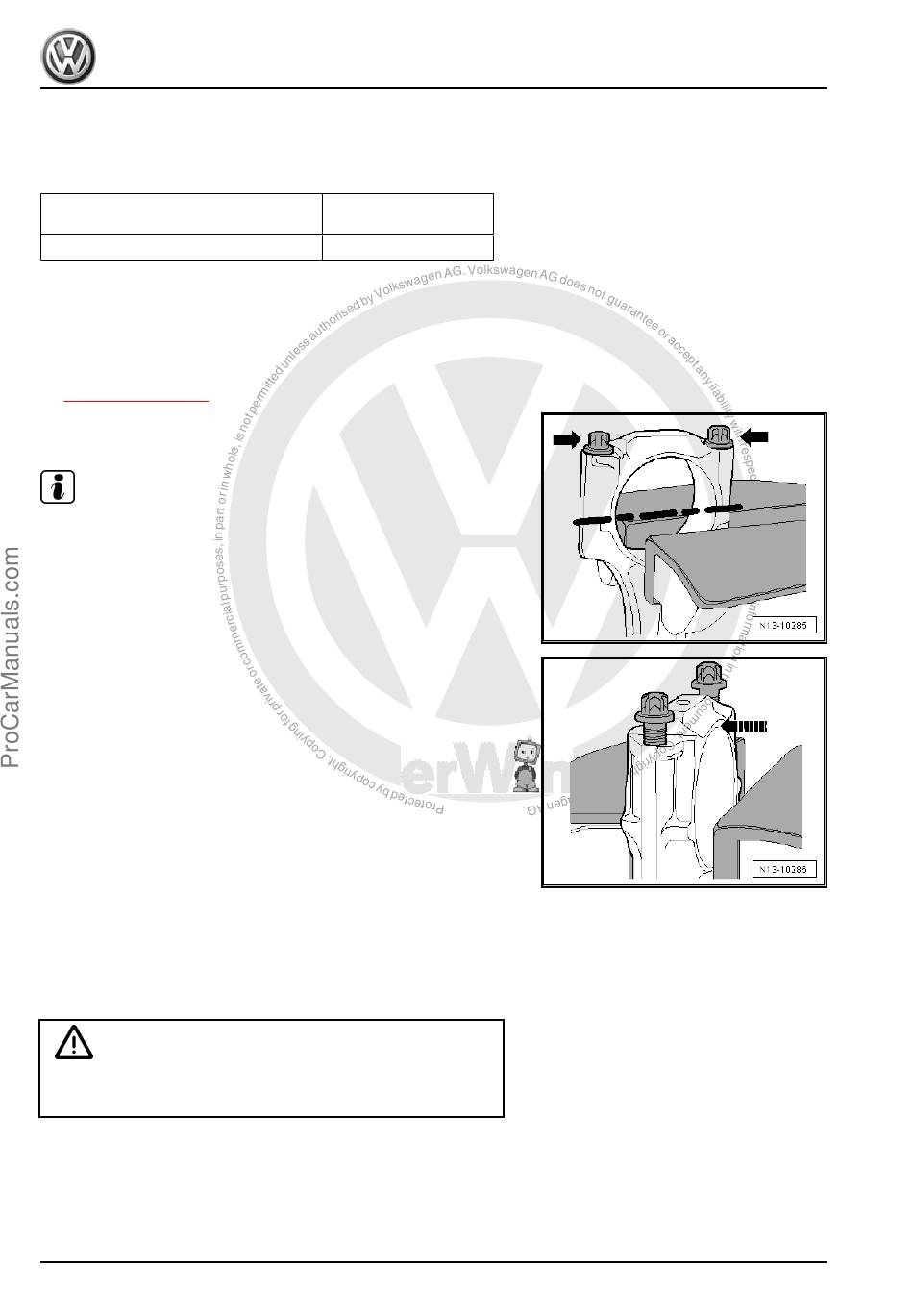

– Lightly clamp the connecting rod in a vise equipped with alu‐
minum protective pads.
Note
Clamp the connecting rod lightly to prevent damaging it.
♦
Clamp the connecting rod below the dotted line.
♦
– Loosen the bolts -arrows- approximately 5 turns.
– Carefully tap against the connecting rod bearing cap in direc‐
tion of -arrow- with a plastic hammer until the cap is loose.
5.5 Connecting Rods, Checking Radial
Clearance
Special tools and workshop equipment required
♦ Plastigage
®
Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Connecting Rod
Procedure
– Remove the connecting rod bearing cap.
84
Rep. Gr.13 - Crankshaft, Cylinder Block
Cylinder Bore Diame‐
ter
82.51
