Coolant Pipes

⇒ 3.1 Overview - Coolant Pipes , page 241
⇒ 3.2 Front Coolant Pipes, Removing and Installing ,
page 241 .
⇒ 3.3 Upper Coolant Pipes, Removing and Installing ,
page 242 .
3.1

Overview - Coolant Pipes

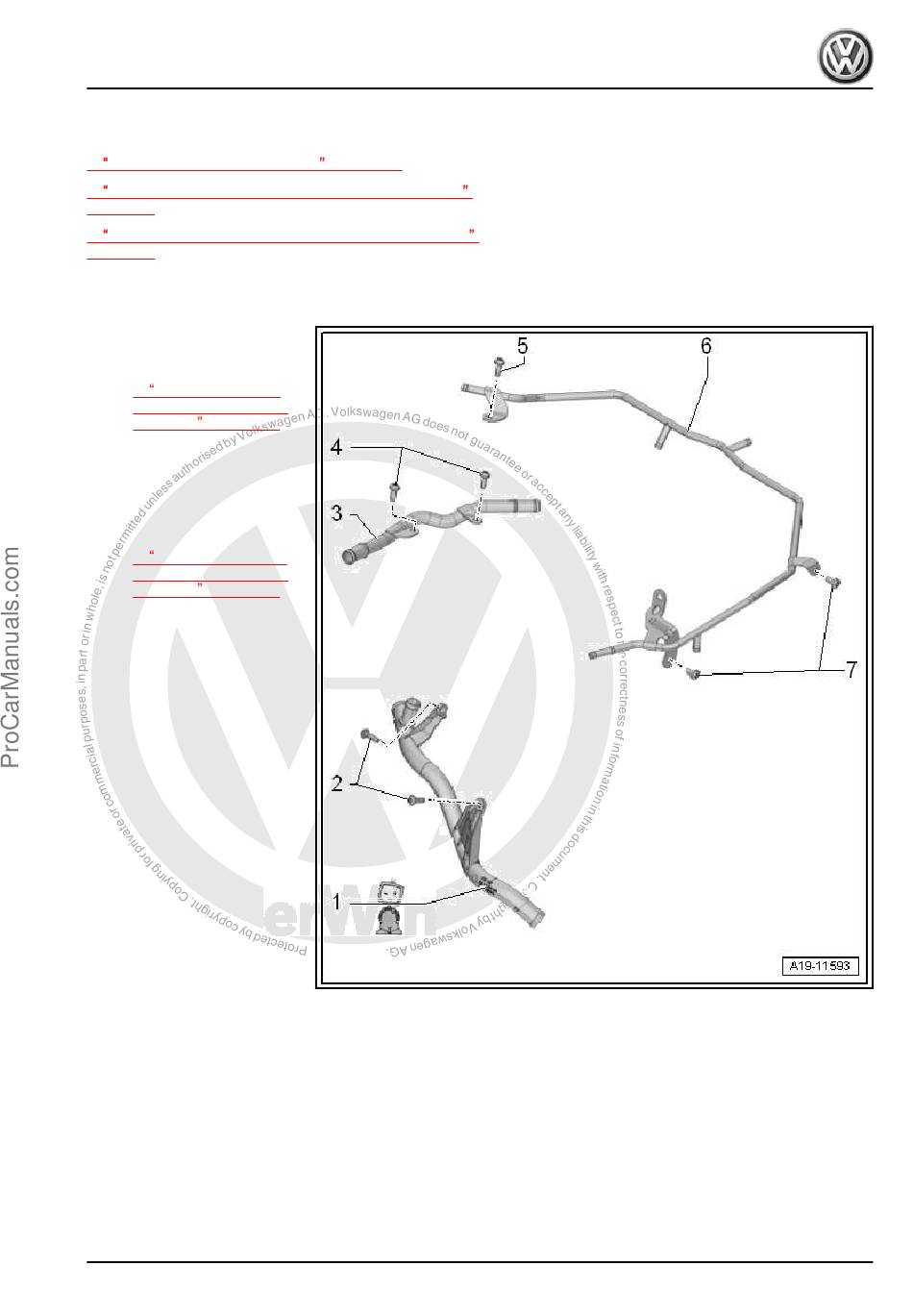

1 - Front Coolant Pipe
❑ Removing and instal‐
ling. Refer to
⇒ 3.2 Front Coolant
Pipes, Removing and
Installing , page 241
2 - Bolts
❑ 6 Nm
3 - Upper Coolant Pipe
❑ Removing and instal‐
ling. Refer to
⇒ 3.3 Upper Coolant
Pipes, Removing and
Installing , page 242
4 - Bolts
❑ 9 Nm
5 - Bolt
❑ 9 Nm
6 - Coolant Pipe
7 - Bolts
❑ 9 Nm
3.2 Front Coolant Pipes, Removing and In‐
stalling
Special tools and workshop equipment required
♦ Hose Clamps - Up To 25mm - 3094-
♦ Hose Clip Pliers - VAS6362-
Removing
– Remove the bolts -1 and 3-.
