Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
13 –

Crankshaft, Cylinder Block

1

Cylinder Block, Belt Pulley Side

⇒ 1.1 Overview - Cylinder Block, Belt Pulley Side , page 44
⇒ 1.2 Ribbed Belt, Removing and Installing , page 46
⇒ 1.3 Ribbed Belt Tensioner, Removing and Installing ,
page 47
⇒ 1.4 Vibration Damper, Removing and Installing , page 47
⇒ 1.5 Auxiliary Components Bracket, Removing and Installing ,
page 53
⇒ 1.6 Engine Support, Removing and Installing , page 55
1.1

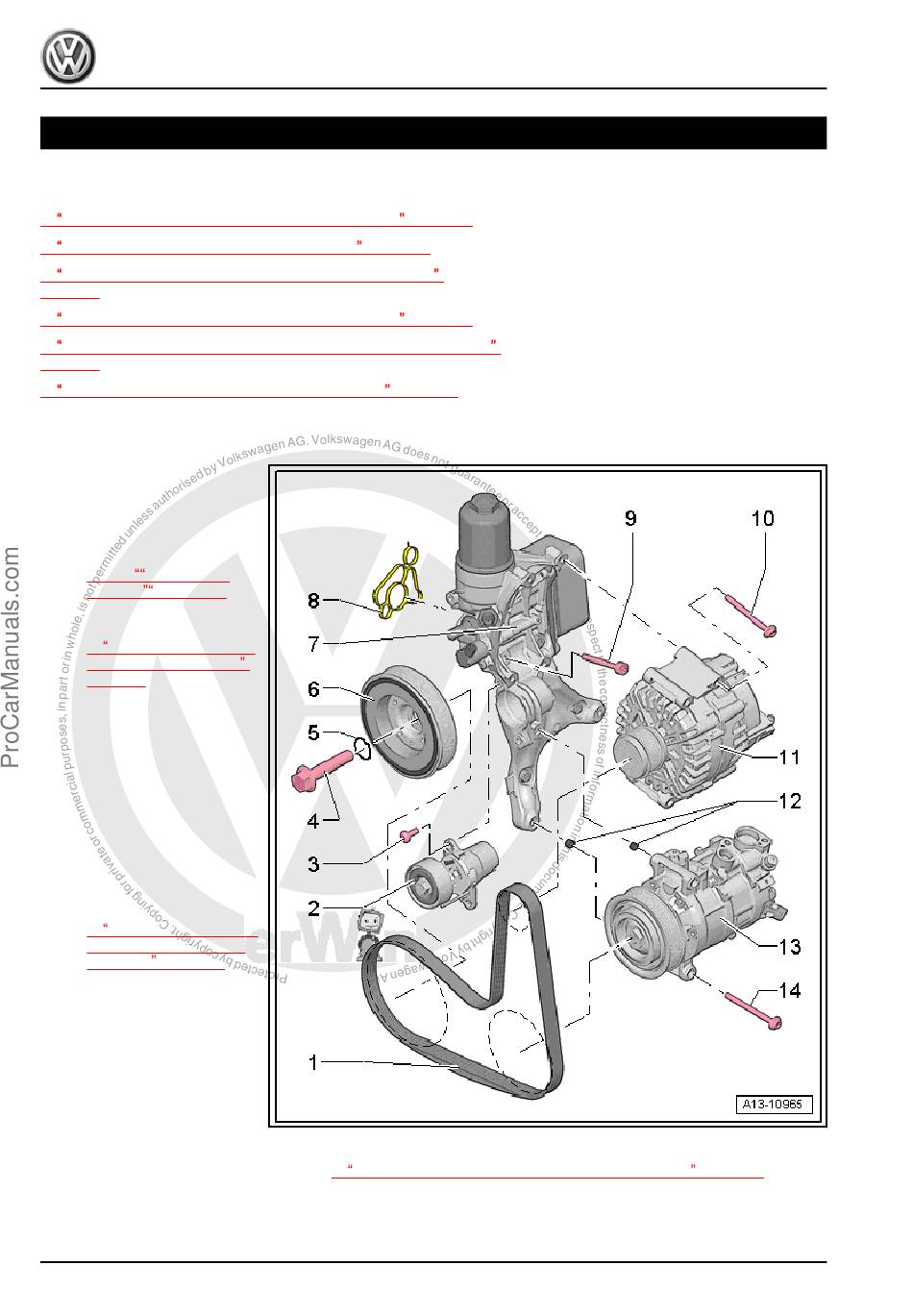

Overview - Cylinder Block, Belt Pulley Side

1 - Ribbed Belt
❑ Check for wear
❑ Do not kink
❑ Ribbed belt routing. Re‐
fer to
⇒ Fig. Ribbed Belt
Routing , page 46
❑ Removing and instal‐
ling. Refer to
⇒ 1.2 Ribbed Belt, Re‐
moving and Installing ,
page 46 .
❑ When installing, make
sure it is seated correct‐
ly on the pulleys
2 - Ribbed Belt Tensioning
Damper
❑ To release tension on
ribbed belt, pivot using a
wrench.
❑ Secure using Locking
Pin - T10060A-
❑ Removing and instal‐
ling. Refer to
⇒ 1.3 Ribbed Belt Ten‐
sioner, Removing and
Installing , page 47
3 - Bolt
❑ 8 Nm + 45° turn
❑ Replace after removing
4 - Bolt
❑ 150 Nm + 90° turn
❑ Replace after removing
❑ Use the Counterhold -
Pulley - T10475- to loosen and tighten
❑ Removing and installing. Refer to
5 - O-Ring
❑ Not a replacement part; supplied with the bolt
44
Rep. Gr.13 - Crankshaft, Cylinder Block
.
⇒ 1.4 Vibration Damper, Removing and Installing , page 47 .
