Overview - Auxiliary Cooler - Volkswagen Golf 2015 Repair Manual

8 - Air Guide
9 - Air Guide
10 - Radiator Mount
11 - Condenser
❑ Removing and installing. Refer to ⇒ Heating, Ventilation and Air Conditioning; Rep. Gr. 87 ; Refrigerant
Circuit; Condenser, Removing and Installing .
12 - Rubber Bushing
❑ For the charge air cooler
13 - O-Ring
❑ Replace after removing
❑ Coat with coolant
14 - Clamp
❑ For Engine Coolant Temperature Sensor on Radiator Outlet - G83-

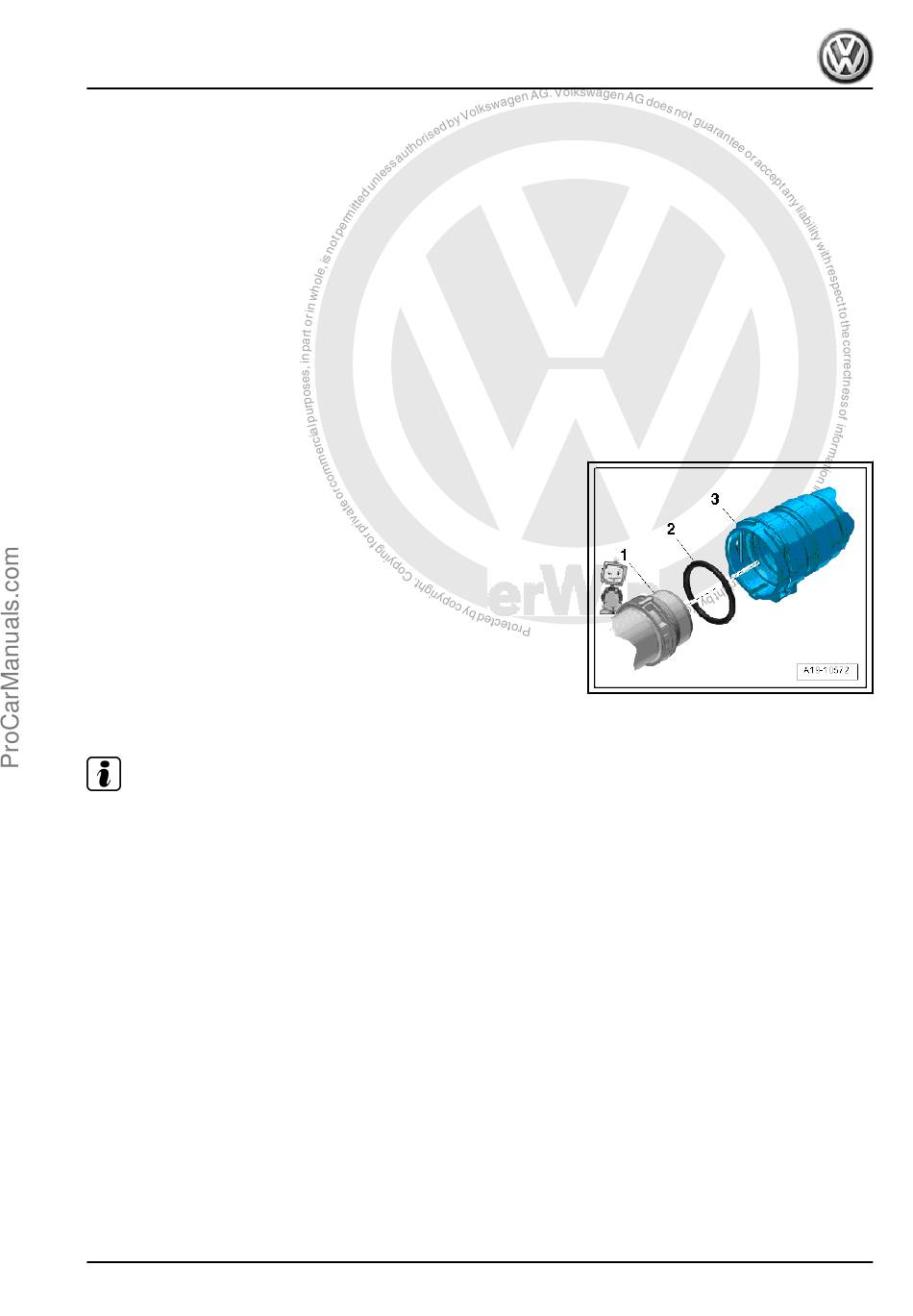

Connect the Coolant Hose to the Coupling
– Remove the old O-ring -2- in the coolant hose -3-.
– Coat the new O-ring with coolant and insert it in the coolant
hose.
– Press the coolant hose on to the coolant pipe -1- until you hear
it engage.
– Press the coolant hose on again and pull to make sure the
connection is engaged correctly.
4.2

Overview - Auxiliary Cooler

Note
®
For vehicles with a DSG
an auxiliary cooler is installed front right.
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
transmission depending on the version
Golf 2015 ➤ , Golf Variant 2015 ➤
4. Radiator/Coolant Fan
