Cylinder Block, Transmission Side

⇒ 2.1 Overview - Cylinder Block, Transmission Side ,
page 57
⇒ 2.2 Flywheel, Removing and Installing , page 58
⇒ 2.3 Sealing Flange, Removing and Installing, Transmission
Side , page 59
2.1

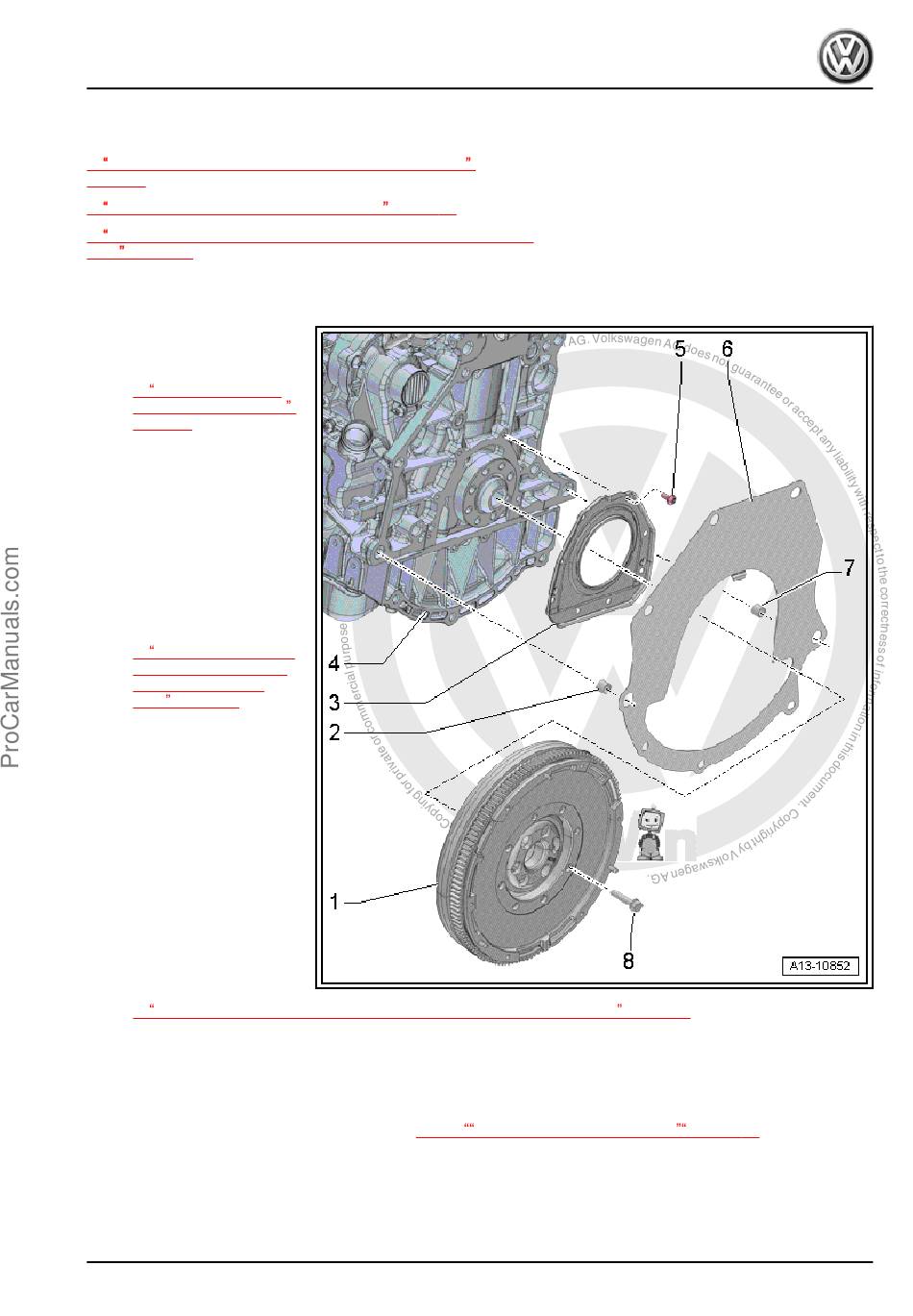

Overview - Cylinder Block, Transmission Side

1 - Flywheel
❑ Removing and instal‐
ling. Refer to
⇒ 2.2 Flywheel, Re‐
moving and Installing ,
page 58 .
❑ It is possible to install in
one position only, the
holes are offset.
2 - Alignment Sleeve
3 - Sealing Flange, Transmis‐
sion Side
❑ With seal
❑ Replace after removing
❑ Removing and instal‐
ling. Refer to
⇒ 2.3 Sealing Flange,
Removing and Instal‐
ling, Transmission
Side , page 59 .
❑ Do not oil or grease the
sealing lip of seal
❑ Wipe off any oil on the
crankshaft bearing pin
with a clean cloth before
installing.
❑ Guide sleeve may only
be removed after the
sealing flange has been
slid onto the crankshaft
pin.
4 - Cylinder Block
5 - Bolt
❑ Tightening specification
and sequence. Refer to
⇒ 2.3 Sealing Flange, Removing and Installing, Transmission Side , page 59
6 - Intermediate Plate
❑ Illustration does not correspond to version in vehicle.
❑ Must be located on dowel sleeves
❑ Be careful not to damage or bend when installing
❑ Is hooked in at sealing flange. Refer to
7 - Alignment Sleeve
8 - Bolt
❑ 60 Nm + 90° turn
❑ Replace after removing
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
⇒ Fig. Installing Intermediate Plate , page 58
