4.6.2 Coolant Fan 2 - V177- , Removing and
Installing
Removing
Note
During installation, all cable ties must be installed at the same
location.
– Remove the fan shroud. Refer to
⇒ 4.5 Fan Shroud, Removing and Installing , page 249

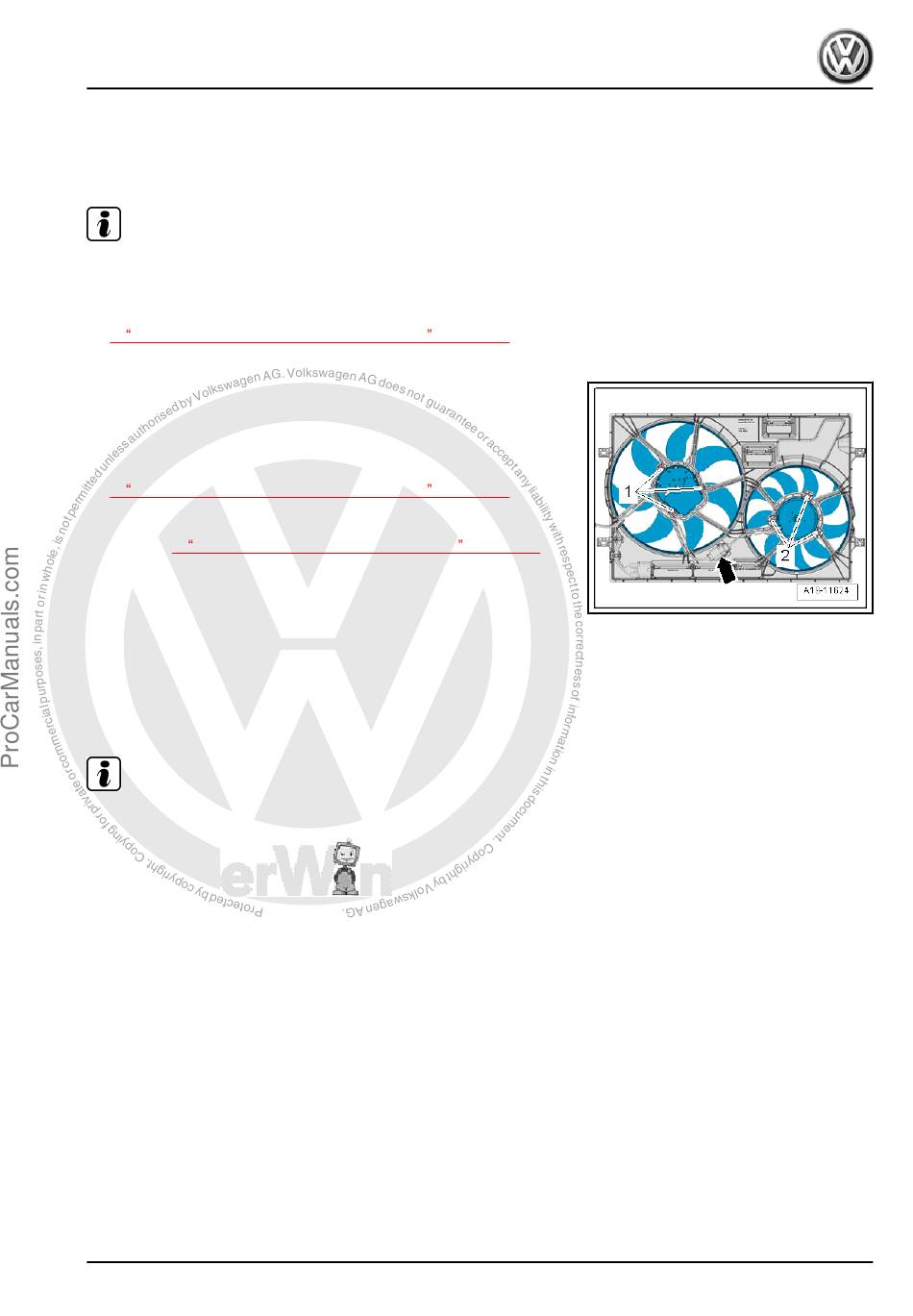

– Disconnect the connector -arrow-.
– Remove the bolts -2-, and remove the Coolant Fan 2 - V177- .
Installing
Install in reverse order of removal. Note the following:
– Install the fan shroud. Refer to
⇒ 4.5 Fan Shroud, Removing and Installing , page 249
Tightening Specifications
♦ Refer to ⇒ 4.1 Overview - Radiator/Coolant Fan , page 244
4.7 Auxiliary Cooler, Removing and Instal‐
ling
Special tools and workshop equipment required
♦ Hose Clamps - Up To 25mm - 3094-
Note
®
For vehicles with a DSG
an auxiliary cooler is installed front right.
Removing
– Remove the right front wheel. Refer to ⇒ Suspension, Wheels,
Steering; Rep. Gr. 44 ; Wheels and Tires .
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
– Remove right front wheel housing liner. Refer to ⇒ Body Ex‐
terior; Rep. Gr. 66 ; Wheel Housing Liner; Front Wheel Hous‐
ing Liner, Removing and Installing .
– Remove the front bumper cover. Refer to ⇒ Body Exterior;
Rep. Gr. 63 ; Front Bumper; Bumper Cover, Removing and
Installing .
