Engine, Installing - Volkswagen Golf 2015 Repair Manual

Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015

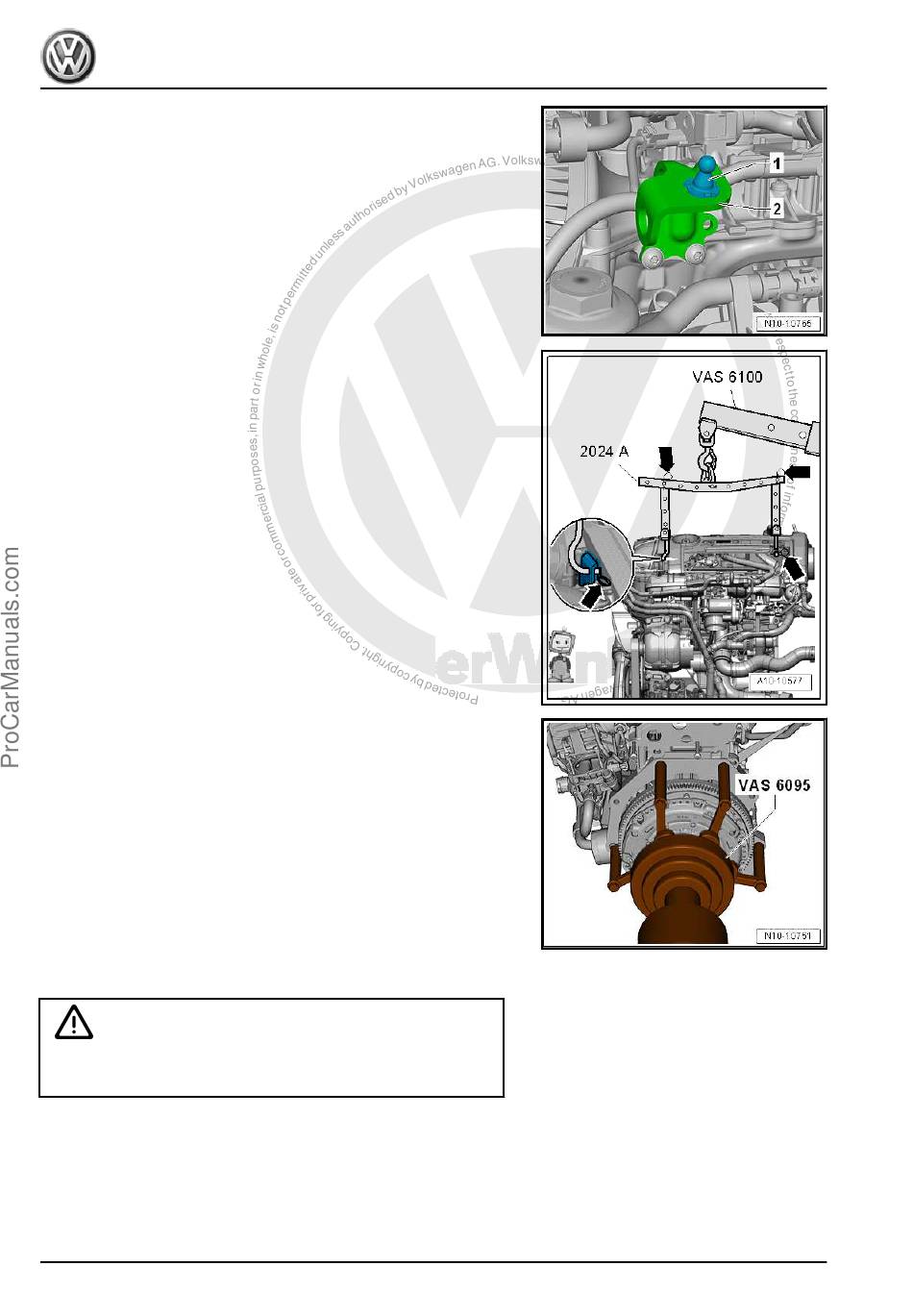

– Unclip the right engine cover mount -1-.
– Hook the Engine Sling - 2024A- to the engine and to the Shop
Crane - VAS6100- .
– To be aligned to the center of gravity of the engine assembly,
the hole rails must be inserted as shown in the illustration.
– Secure the mounting hooks and pins on the engine support
bridge using securing pins -arrows-.
– Lower the engine from the Engine and Gearbox Jack -
VAS6931- using the Shop Crane - VAS6100- .
– Remove the transmission alignment sleeve and secure the
transmission side of the engine on the Engine And Transmis‐
sion Holder - VAS6095- .
1.4

Engine, Installing

Caution
This procedure contains mandatory replaceable parts. Refer
to component overview prior to starting procedure.
Mandatory Replacement Parts
♦ Bolts - Transmission Mount
♦ Bolts - Engine to Transmission
24
Rep. Gr.10 - Engine Assembly
