Intake Manifold, Removing And Installing - Volkswagen Golf 2015 Repair Manual

Golf 2015 ➤ , Golf Variant 2015 ➤
Engine Mechanical, Fuel Injection and Ignition - Edition 04.2015
4.3 Intake Manifold, Removing and Instal‐
ling
Special tools and workshop equipment required
♦ Torx Socket - T30 - T10347-
♦ Flare Nut Attachment - 17mm - T10456-
If the intake manifold is removed or replaced, the Intake Manifold
Runner Position Sensor - G336- must be adapted to the Engine
Control Module - J623- .
Removing
– Disconnect the battery. Refer to ⇒ Electrical Equipment; Rep.
Gr. 27 ; Battery; Battery, Disconnecting and Connecting .
– Remove the engine cover. Refer to
⇒ 3.1 Engine Cover, Removing and Installing , page 38

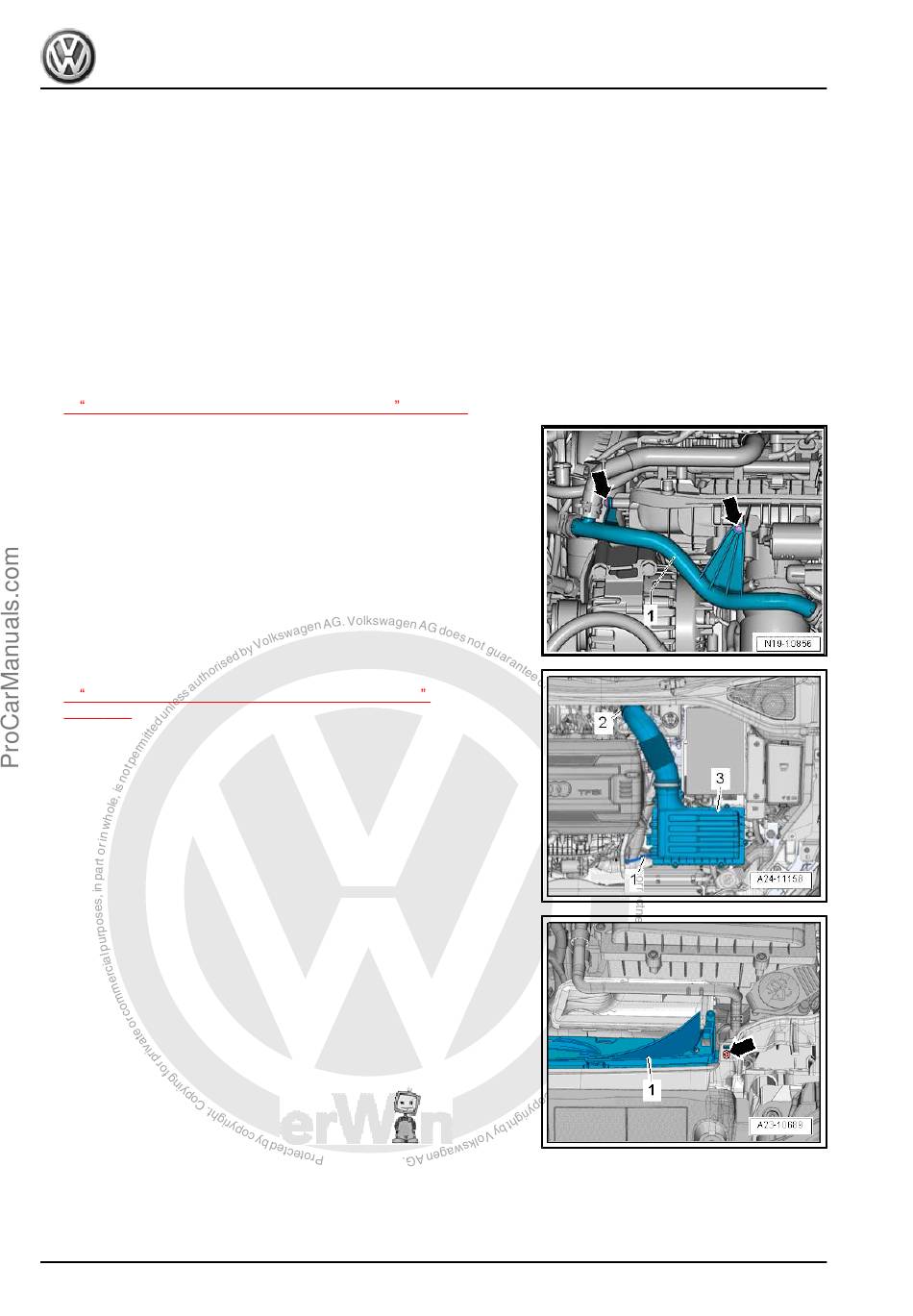

– Remove the bolts -arrows-.
– Remove the air filter housing -3-. Refer to
⇒ 3.2 Air Filter Housing, Removing and Installing ,
page 294 .
– Remove the left and right bolt -arrow-.
– Unclip and remove the lower section -1- of the air duct.
– Remove the noise insulation. Refer to ⇒ Body Exterior; Rep.
Gr. 66 ; Noise Insulation; Overview - Noise Insulation .
