Side view

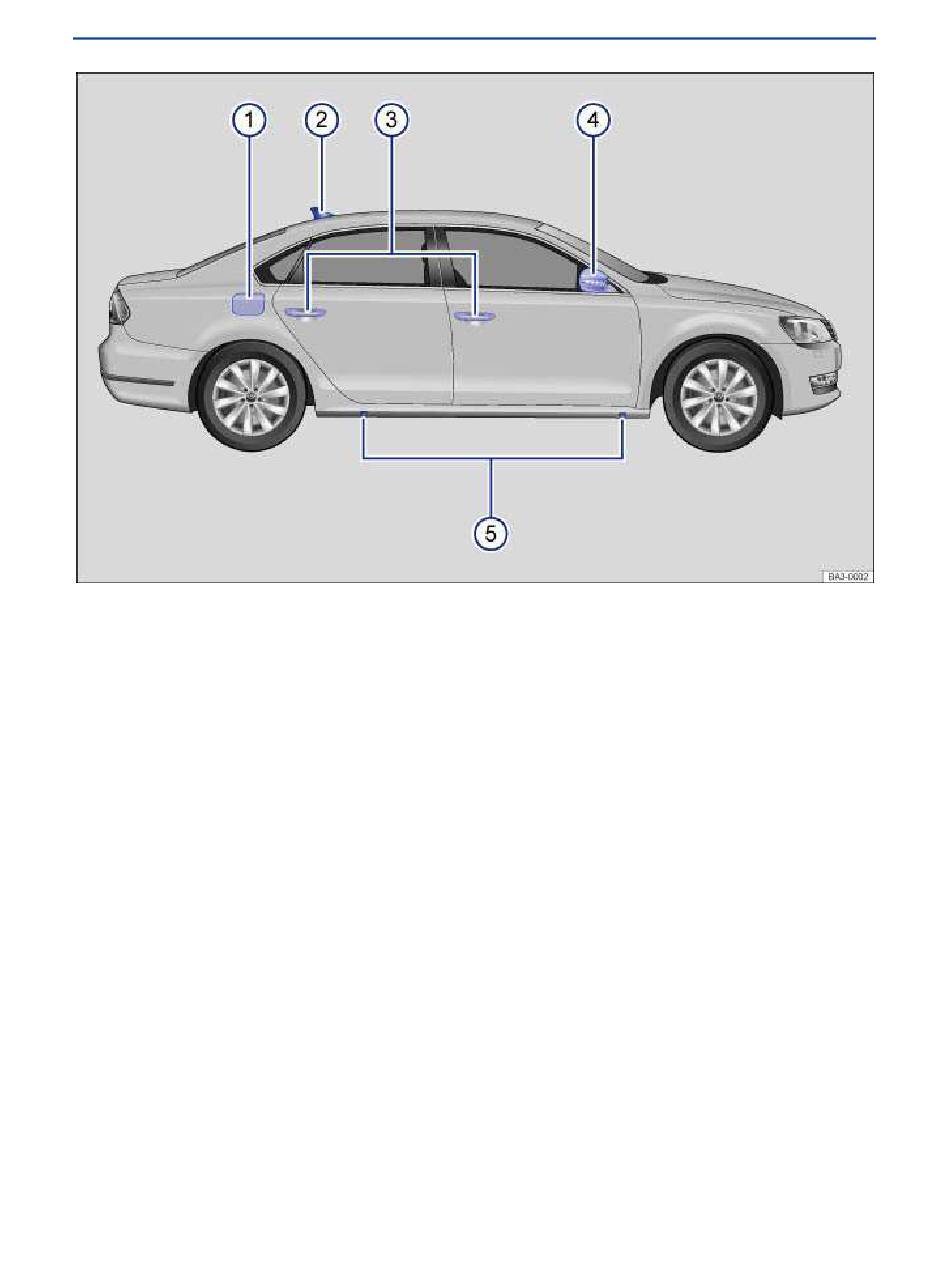

Fig. 1 Vehicle side overview.
Key to
fig.
1:
(1)
Fuel filler flap
(2)
Roof antenna
(3)
Outside door handles
(4)
Outside mirror
– Additional turn signal light
(5)
Lift points for the jack

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PASSAT 2013 and is the answer not in the manual?

Questions and answers

Jean Stripinis
March 30, 2025

Power steering fluid

0
1 comments:
Mr. Anderson
March 30, 2025

The recommended power steering fluids for a 2013 Volkswagen Passat include:

- VW G 002 000
- VW G 004 000 M2
- VW TL 52146
- MOPAR CHF 11-S (Article number: 68088485AB)
- Fluids meeting DIN 51524-2 and ISO 7308 standards

These fluids are typically full synthetic and compatible with hydraulic power steering systems.

This answer is automatically generated

0
Adrian D Hazelton
August 8, 2025

My oil pressure light comes on after about 45 minutes of driving. My car is a 2013

0
