C-## Frequency Control Functions - GE Ecomagination AF-600 FP Programming Manual

Parameter Description

3.4 C-## Frequency Control Functions

3.4.1 C-0# Frequency Control Functions
C-01 Jump Frequency From [Hz]
Array [4]
Range: Function:
0 Hz [0 - par. F-15 Some systems require that certain output
*
Hz] frequencies or speeds are avoided due to
resonance problems in the system. Enter
the lower limits of the speeds to be
avoided.
C-02 Jump Speed From [RPM]
Array [4]
Range: Function:
0 RPM [0 - par. F-17 Some systems require that certain
*
RPM] output frequencies or speeds are
avoided due to resonance problems in
the system. Enter the lower limits of the
speeds to be avoided.
C-03 Jump Speed To [RPM]
Array [4]
Range: Function:
0 RPM [0 - par. F-17 Some systems require that certain
*
RPM] output frequencies or speeds are
avoided due to resonance problems in
the system. Enter the upper limits of the
speeds to be avoided.
C-04 Jump Frequency To [Hz]
Array [4]
Range: Function:
0 Hz [0 - par. F-15 Some systems require that certain output
*
Hz] frequencies or speeds are avoided due to
resonance problems in the system. Enter
the upper limits of the speeds to be
avoided.
DET-620D
AF-600 FP™ Programming Guide
C-05 Multi-step Frequency 1 - 8
Array [8]
Range:
0 %
*
100 %]

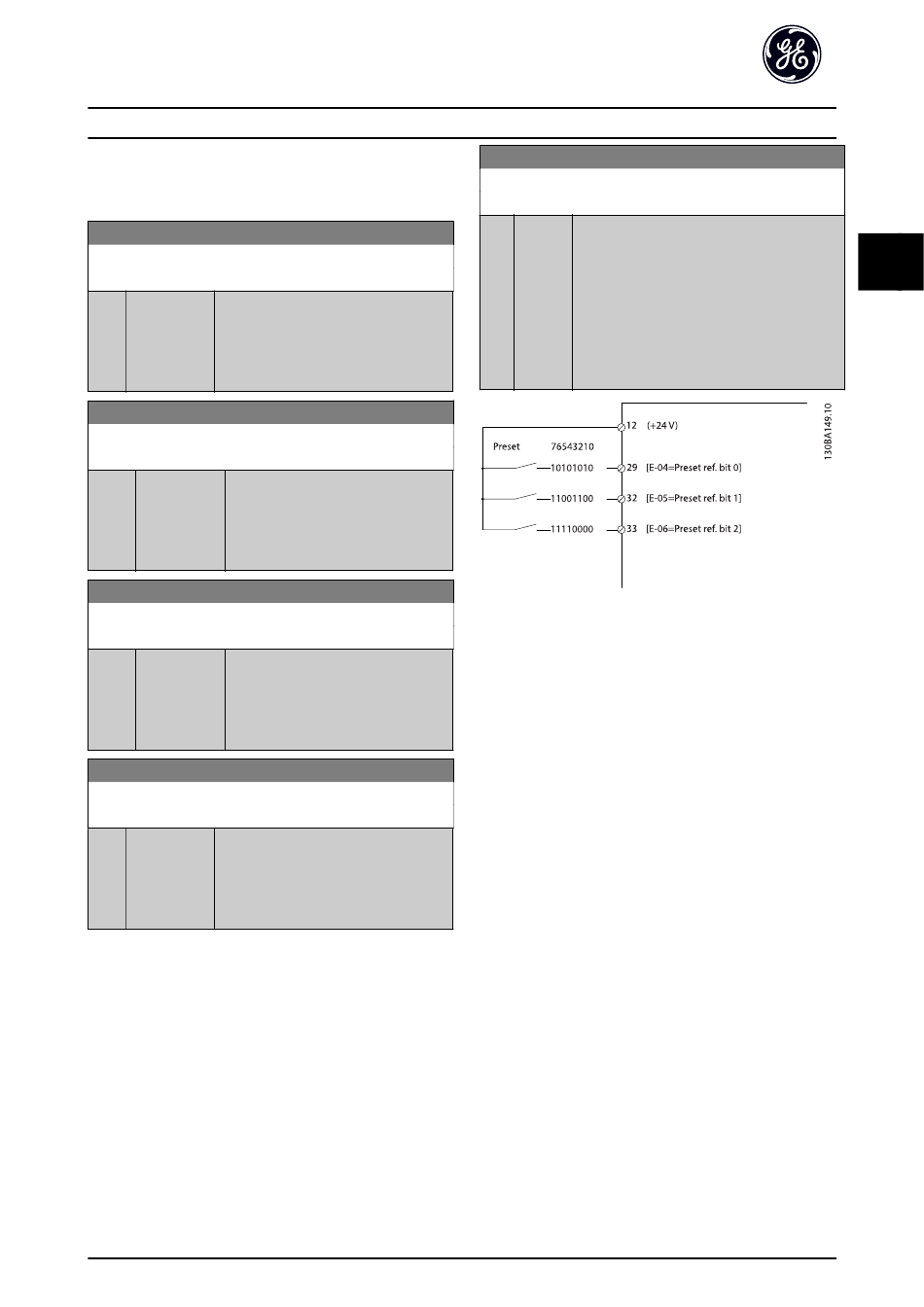

Illustration 3.18 Preset Reference Scheme
03/2016 All rights reserved.
Function:
[-100 - Enter up to 8 different preset references (0-7) in
this parameter, using array programming. The
preset reference is stated as a percentage of the
value Ref (parameter F-53 Maximum Reference,
MAX
for closed loop, see parameter CL-14 Maximum
Reference/Feedb.). When using preset references,
select preset reference bit 0/1/2 [16], [17], or [18]
for the corresponding digital inputs in parameter
group E-0# Digital Inputs.
