Parameter Description

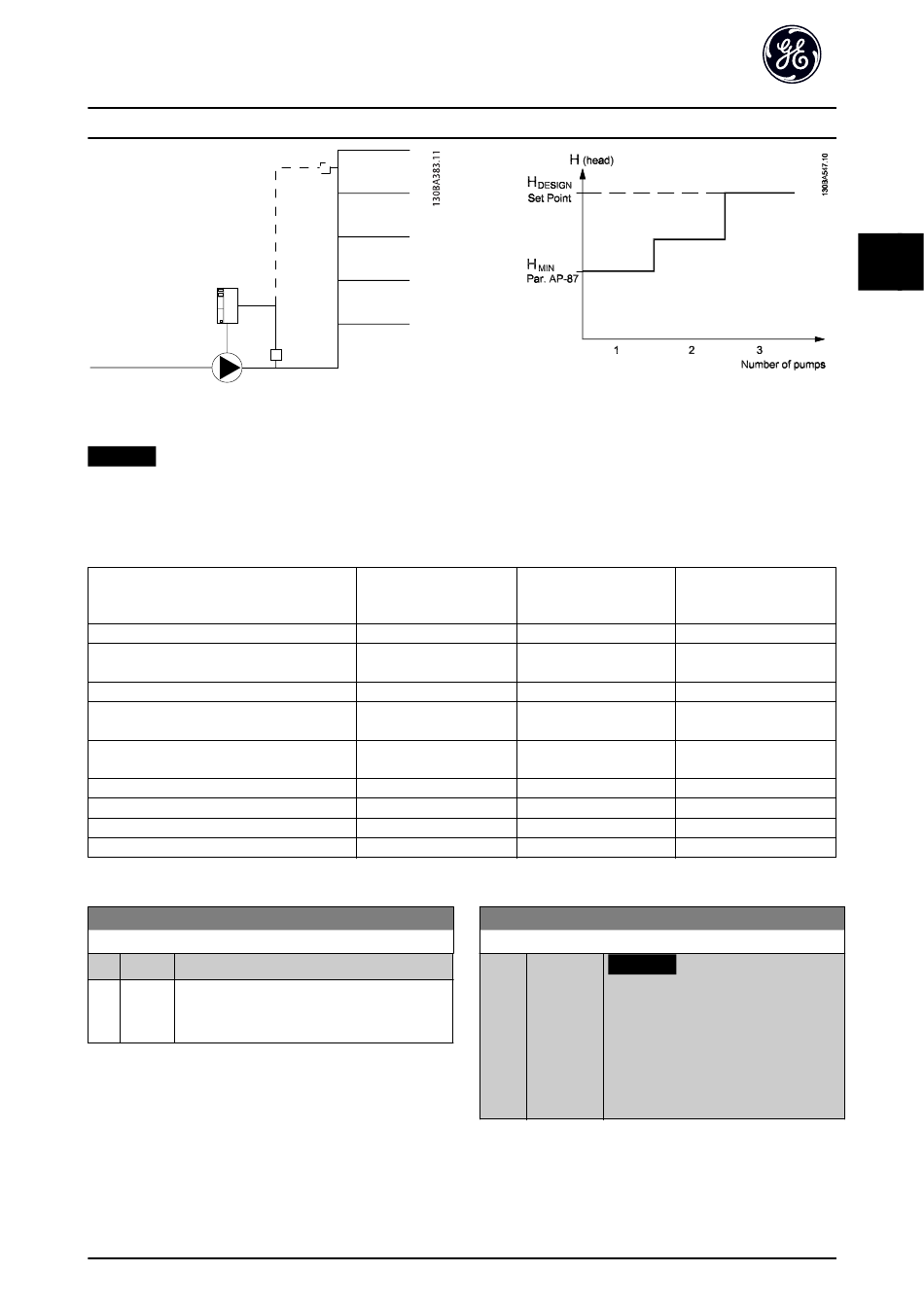

Illustration 3.44 Flow Compensation
NOTICE
When flow compensation is used with the Pump
Controller (parameter group PC-##), the actual setpoint
does not depend on speed (flow), but on the number of
pumps cut in. See Illustration 3.45:
Parameter used
Parameter AP-80 Flow Compensation
Parameter AP-81 Square-linear Curve Approxi-
mation
Parameter AP-82 Work Point Calculation
Parameter AP-83 Speed at No-Flow [RPM]/
Parameter AP-84 Speed at No-Flow [Hz]
Parameter AP-85 Speed at Design Point [RPM]/
Parameter AP-86 Speed at Design Point [Hz]
parameter AP-87 Pressure at No-Flow Speed
Parameter AP-88 Pressure at Rated Speed
Parameter AP-89 Flow at Design Point
Parameter AP-90 Flow at Rated Speed
Table 3.23 Number of Pumps
AP-80 Flow Compensation
Option: Function:
[0] Disabled Setpoint compensation not active.
*
[1] Enabled Setpoint compensation is active. Enabling this
parameter allows the flow-compensated setpoint
operation.
DET-620D
AF-600 FP™ Programming Guide
Illustration 3.45 Number of Pumps
There are 2 methods which can be employed, depending
upon whether or not the speed at system design working
point is known.
Speed at
design point
KNOWN
+
+
+
+
+
+
-
-
-
AP-81 Square-linear Curve Approximation
Range:
100 %
*
03/2016 All rights reserved.
Speed at
design point Pump controller
UNKNOWN
+
+
+
+
-
+
+
+
+
Function:
NOTICE
[0 - 100 %]
Not visible when running in cascade.
Example 1
Adjustment of this parameter allows the
shape of the control curve to be adjusted.
0=Linear
100%=Ideal shape (theoretical).
3 3
+
-
-
-
-
+
-
-
-
