How to Program

2 How to Program

2.1 Keypad

2.1.1 How to Operate Graphical Keypad

The keypad is divided into 4 functional groups:
1. Graphical display with status lines.
2. Menu keys and indicator lights (LEDs) - selecting
mode, changing parameters, and switching
between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Graphical display
The LCD display is backlit with a total of 6 alpha-numeric
lines. All data is displayed on the keypad, which can show
up to 5 operating variables while in Status mode.
Display lines:
a. Status line
Status messages displaying icons and graphics.
b. Line 1–2
Operator data lines displaying data and variables
defined or selected by the user. Press [Status] to
add 1 extra line.
c. Status line
Status messages displaying text.
DET-620D
AF-600 FP™ Programming Guide

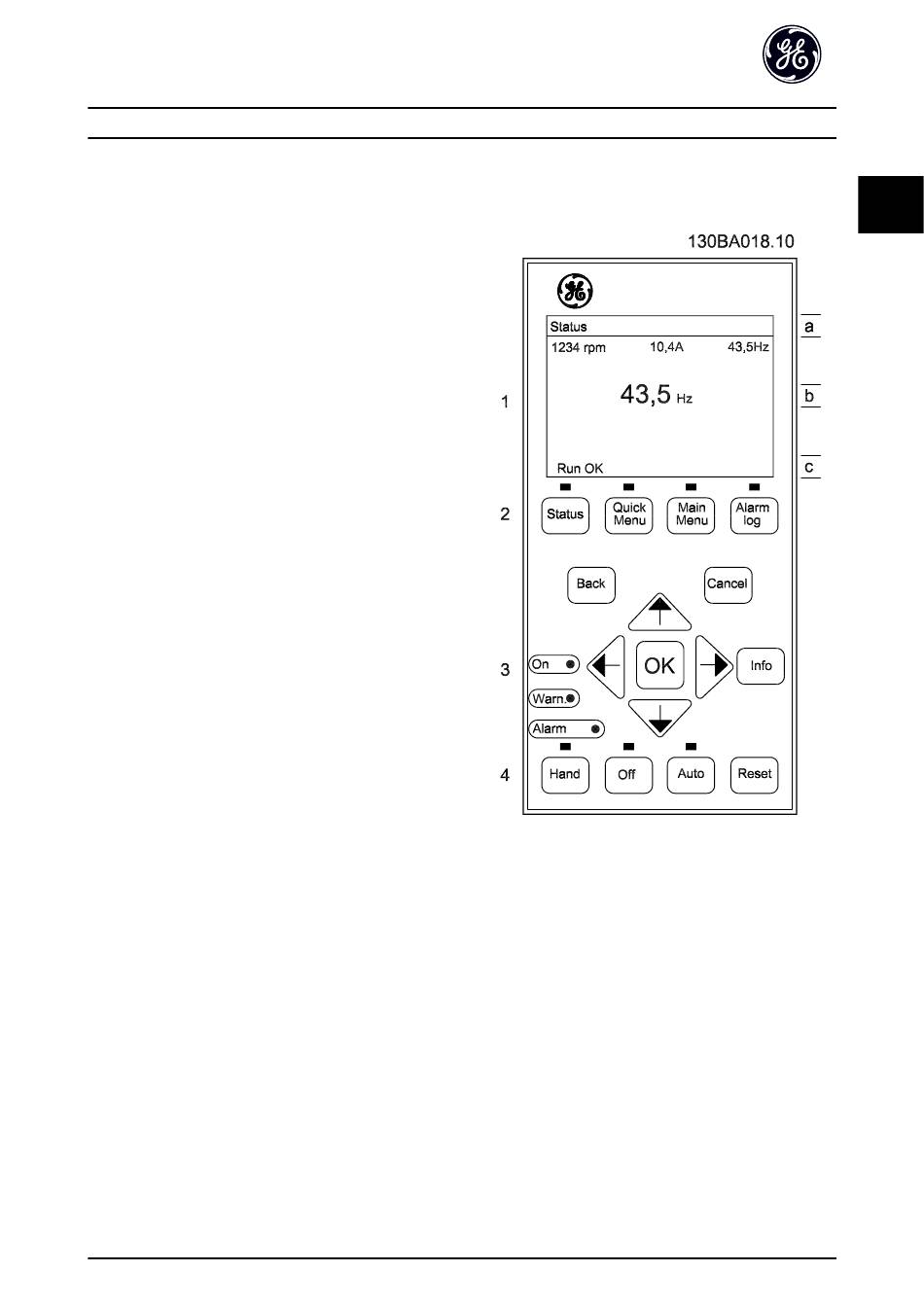

Illustration 2.1 LCP
The display is divided into 3 sections:
Top section
(a) shows the status when in Status mode, or up to 2
variables when not in Status mode, and in the case of
alarm/warning.
The number of the active set-up (selected as the active
set-up in parameter K-10 Active Set-up) is shown. When
programming in another set-up than the active set-up, the
number of the set-up being programmed appears to the
right in brackets.
Middle section
(b) shows up to 5 variables with related unit, regardless of
status. In case of alarm/warning, the warning is shown
instead of the variables.
