How to Program

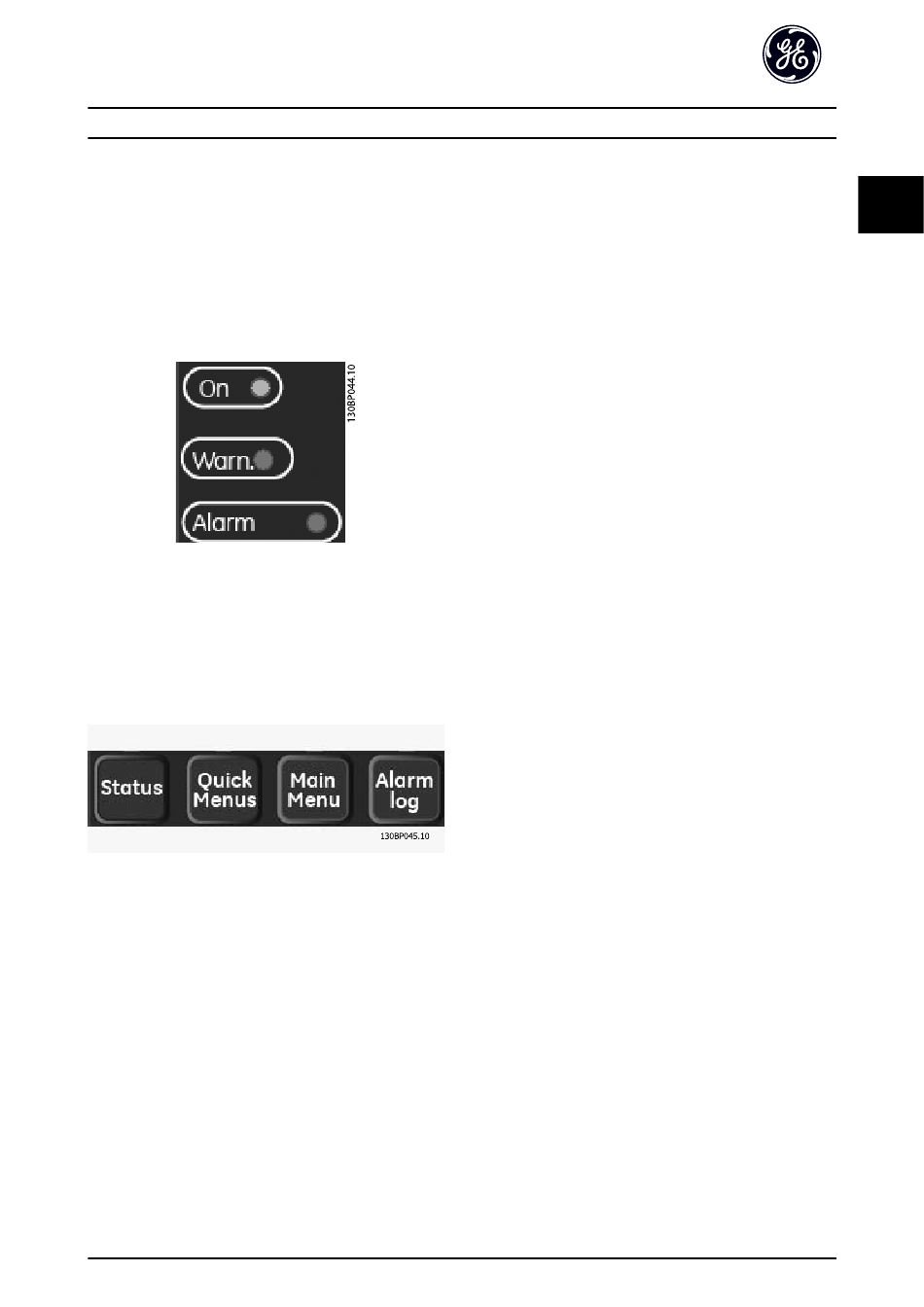

Indicator lights (LEDs)
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear in
the display.
The On LED is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or a
24 V external supply. At the same time, the backlight is on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
Illustration 2.6 Indicator Lights
Keys
Menu keys
The menu keys are divided into functions. The keys below
the display and indicator lights are used for parameter set-
up, including selection of display indication during normal
operation.
Illustration 2.7 Menu Keys
[Status]
[Status] indicates the status of the frequency converter
and/or the motor. 3 different readouts can be selected by
pressing the [Status] key:
•
5-line readouts.
•
4-line readouts.
•
Logic Controller.
Press [Status] to select the display mode or for changing
back to Display mode from either Quick Menu mode, Main
Menu mode, or Alarm mode. Also press [Status] to toggle
between single or double readout mode.
[Quick Menu]
[Quick Menu] allows quick set-up of the frequency
converter. The most common functions can be
programmed here.
DET-620D
AF-600 FP™ Programming Guide
The Quick Menu consists of
•
•
•
•
•
•
•
The Function Set-up provides quick and easy access to all
parameters required for most applications including:
•
•
•
•
Among other features, it also includes parameters for
selecting which variables to display in the keypad: digital
preset speeds, scaling of analog references, closed loop
single-zone and multi-zone applications, and specific
functions related to fans, pumps, and compressors.
The Quick Menu parameters can be accessed immediately
unless a password has been created via:
•
•
•
•
It is possible to switch directly between Quick Menu mode
and Main Menu mode.
[Main Menu]
Press [Main Menu] to program all parameters. The main
menu parameters can be accessed immediately unless a
password has been created via:
•
•
•
•
For most applications, it is not necessary to access the
main menu parameters. Instead, the Quick Menu, Quick Set-
up and Function Set-up provide the simplest and quickest
access to the most required parameters.
It is possible to switch directly between Main Menu mode
and Quick Menu mode.
Parameter shortcut can be carried out by pressing [Main
Menu] for 3 s. The parameter shortcut allows direct access
to any parameter.
03/2016 All rights reserved.
Quick Start
Fan Macros
Pump Macros
Compressor Macros
Closed Loop
Parameter Data Check
Trendings
Most VAV and CAV supply and return fans.
Cooling tower fans.
Primary, secondary, and condenser water pumps.
Other pump, fan, and compressor applications.
Parameter K-60 Main Menu Password.
Parameter K-61 Access to Main Menu w/o Password.
Parameter K-65 Quick Menu Password.
Parameter K-66 Access to Quick Menu w/o
Password.
Parameter K-60 Main Menu Password.
Parameter K-61 Access to Main Menu w/o Password.
Parameter K-65 Quick Menu Password.
Parameter K-66 Access to Quick Menu w/o
Password.
