Parameter Description
3 3

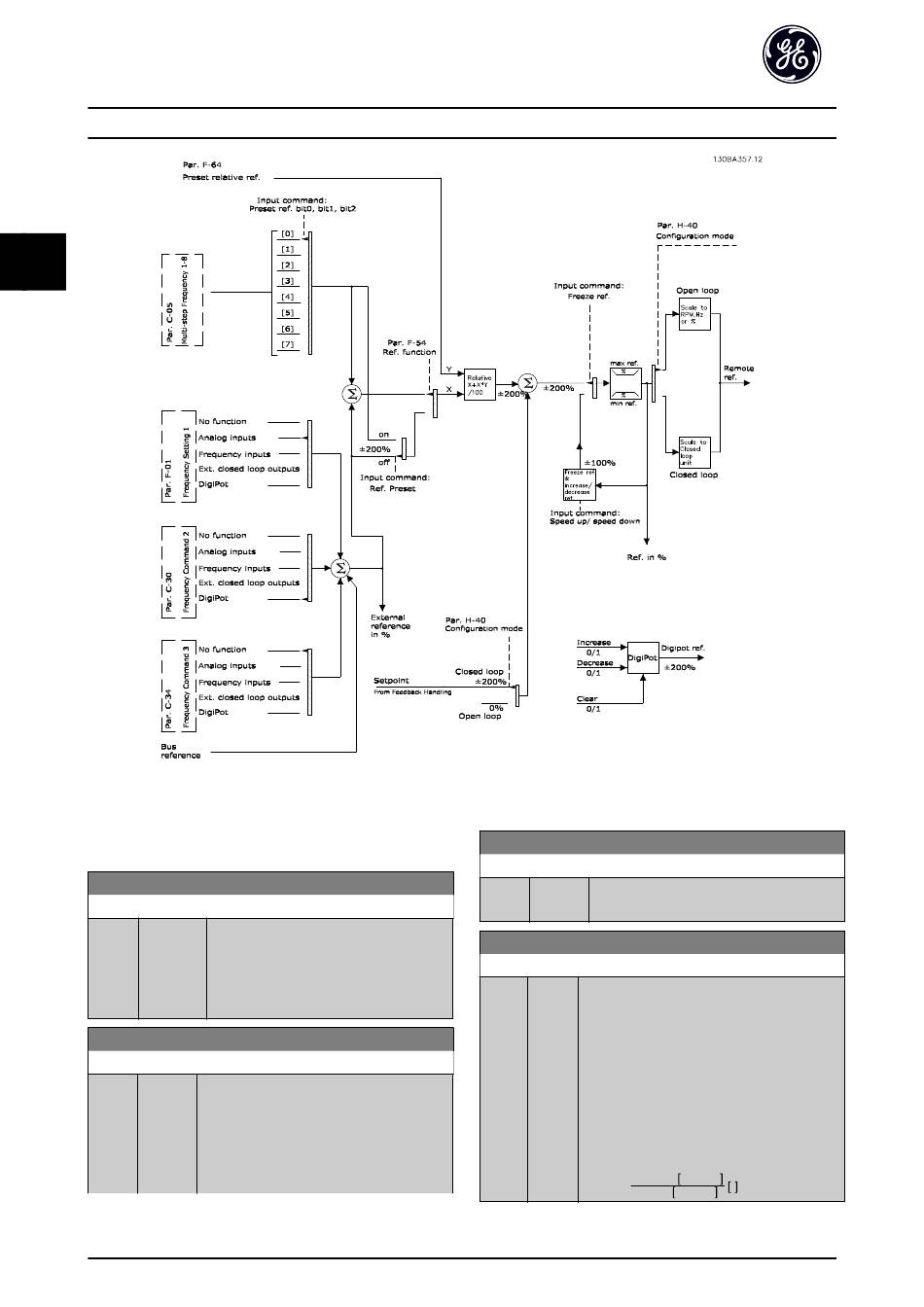

Illustration 3.19 Example of Open-loop Operation and Closed-loop Operation
3.4.2 C-2# Jog Setup
C-20 Jog Speed [Hz]
Range:
10.0 [0 - par.
Hz F-15 Hz]
*
C-21 Jog Speed [RPM]
Range:
300 [0 - par.
RPM F-17
*
RPM]
54
Function:
The jog speed is a fixed output speed at
which the frequency converter is running
when the jog function is activated.
See also parameter C-21 Jog Speed [RPM]
and parameter C-22 Jog Accel/Decel Time.
Function:
Enter a value for the jog speed n
a fixed output speed. The frequency
converter runs at this speed when the jog
function is activated. The maximum limit is
defined in parameter F-17 Motor Speed High
Limit [RPM].
03/2016 All rights reserved.
C-21 Jog Speed [RPM]
Range:
C-22 Jog Accel/Decel Time
Range:
20.00 [1 -
s 3600 s]
*
, which is
JOG
Function:
See also parameter C-20 Jog Speed [Hz] and
parameter C-22 Jog Accel/Decel Time.
Function:
Enter the jog ramp time, that is the
acceleration/deceleration time between 0 RPM
and the nominal motor speed (n
parameter P-06 Base Speed). Ensure that the
resulting output current required for the given
jog ramp time does not exceed the current
limit in parameter F-43 Current Limit. The jog
ramp time starts after activating a jog signal via
the keypad, a selected digital input, or the
serial communication port.
t jog × nnom par . P − 06
par . C − 22 = s
jog speed par . C − 21
