EM GUI orientation
If the card with the connectors that are part of an output configuration is missing, the card in the unit graphic
and the output configuration in the configuration list will be grayed out.
Also, if there is an existing output configuration but the card in the slot is of different type, then again the
configuration will be greyed out.

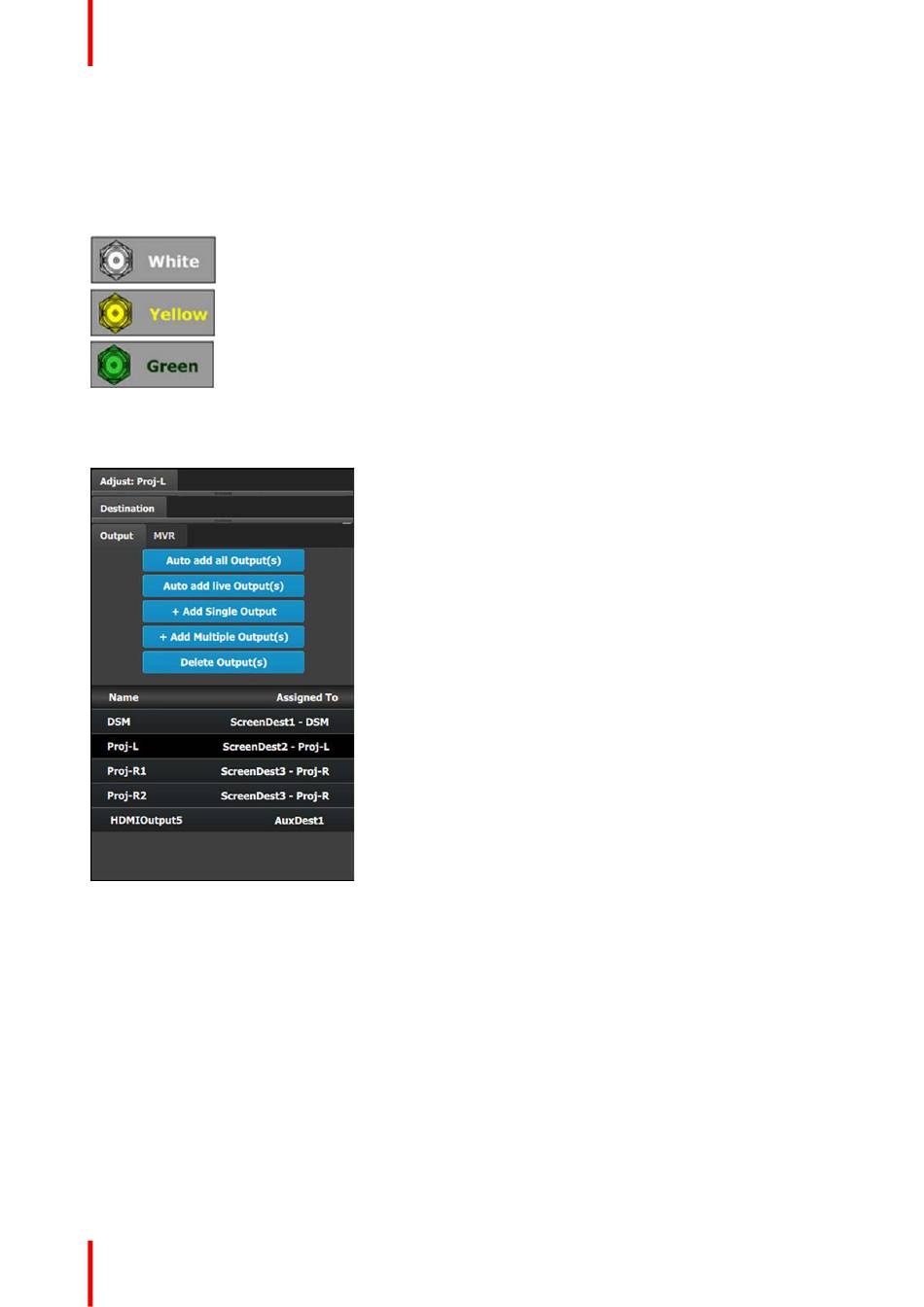

Output connector colors
Output configuration menu description
Output configuration menu is accessed by clicking on the Output tab.
How to Auto add Outputs
The "Auto add all Output(s)" button allows all 2K outputs that are not assigned to an output configuration to
automatically assign to an output configurations. Output connectors that are already assigned to output
configurations will not be affected. The picture below shows what occurs when the button is pressed. Since
there are 12 output connectors not assigned, all 12 Output configurations are automatically assigned.
92 R5909934 /00 E2 Lite and EC-40
Not added to system as grouped connector or single
connector
Not assigned to any output configuration
Assigned to an output configuration
This menu provides:
• Auto add all Output(s): A button to automatically
allocate all unassigned output connectors to an
Output configuration.
• Auto add live Output(s)
A button to automatically allocate all LIVE output
connectors (GREEN) to an output.
• + Add Single Output: A button to manually
allocate output connector(s) to an Output
configuration.
• + Add Multiple Output(s):A button to manually
allocate more than one connector to an Output
configuration.
• Delete Outputs: A button to delete unused or
obsolete Output(s).
• A list of all the Outputs already created on the
system (e.g. Output1 and Output2).
