EM GUI orientation
User Keys configuration menu description
Save to new User key
1. Select the layer whose parameters you want to store.
2. Using the menu, enable or disable the specific parameters that you wish to store (e.g., Type, Trans,
Effects, Key etc.). You can also enable all parameters using the ALL button.
3. Select the "Save to new User Key" button.
4. The User Key appears in the list.
5. Repeat from step 1 to store additional User Keys.
Overwrite User key
This button is enabled if a layer and a user key is selected. Pressing this button overwrites the layer data in the
selected user key but the name of the user key is not updated. The attributes saved are based on the selection
of the Enables boxes. If no boxes are checked, no user key is created.
146 R5909934 /00 E2 Lite and EC-40

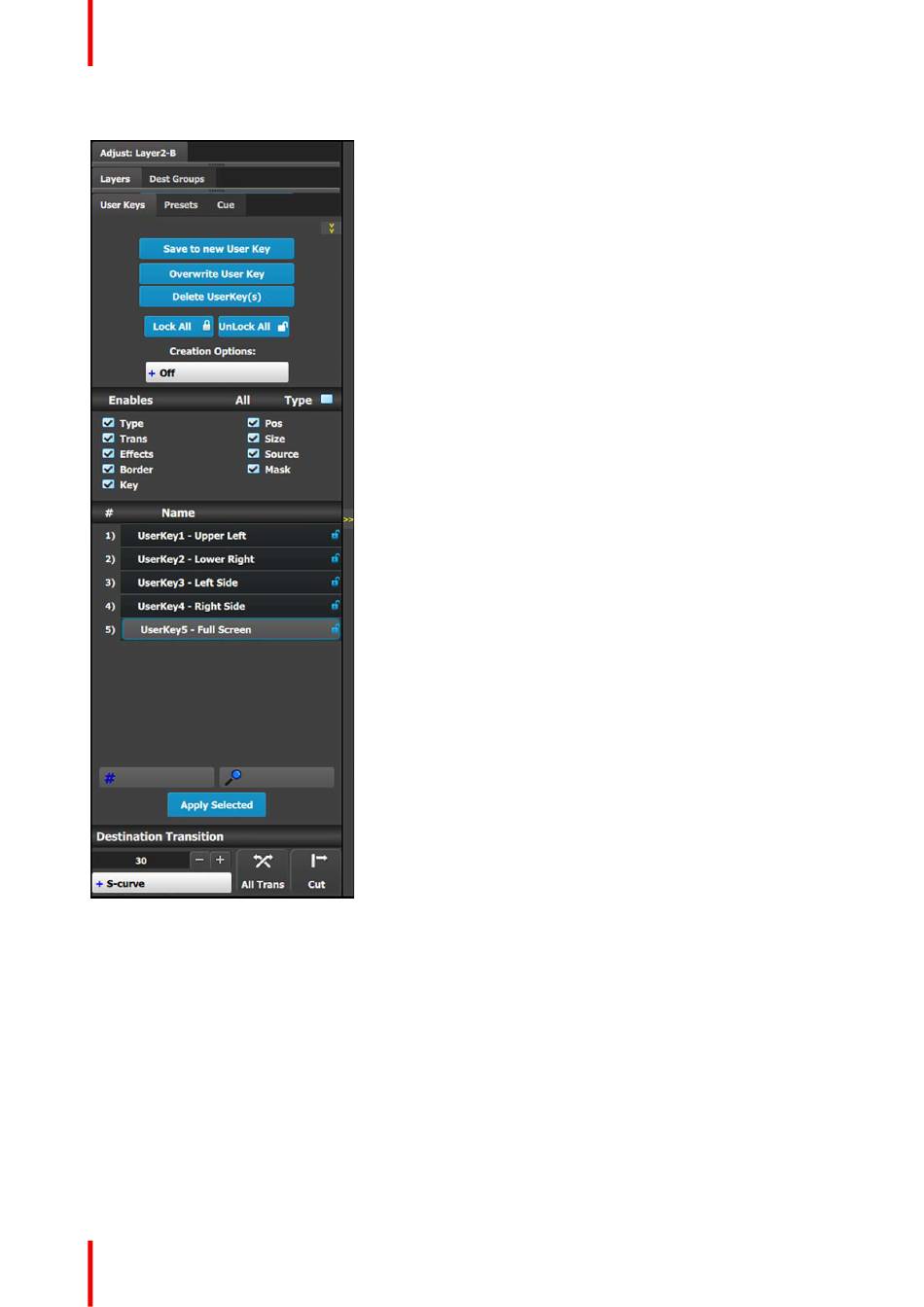

This menu provides:
• A numbered list of the available User Keys.
• A button to Save the attributes of a Layer as a new
User Key.
• A button to Overwrite the Layer data in the
selected User Key.
• A button to Delete one or more User keys.
• A button to Lock All the User Keys in the list.
• A button to Unlock All the User Keys in the list.
• Several attributes that can be enabled for use
during Save operation.
- Type: type of Layer—PIP or Key
- Trans: type of transition
- Effects: color and effects
- Border: On / Off and its parameters
- Key: Key parameters separated from Layer
type
- Pos: Position of Layer
- Size: Size of Layer
- Source: actual size of the Source inside the
PIP, as opposed to the Source file
- Mask: Masking parameters
• A search edit box for searching User Keys by
number and a search edit box for searching User
Keys by name.
