Barco ImagePRO–4K Quick Start Manual

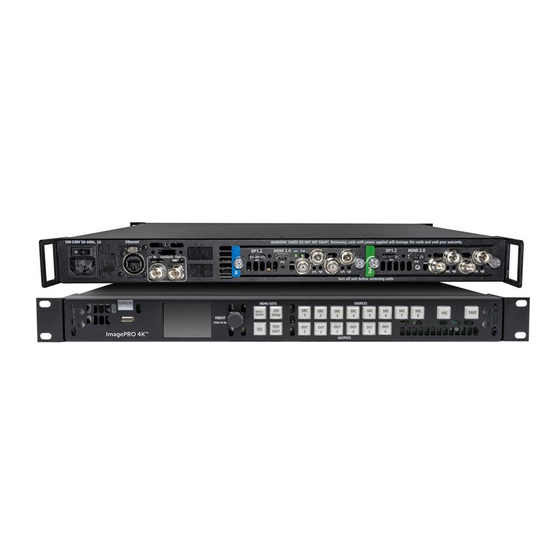

ImagePRO–4K Video Processor
Quick Start Guide - Setup
Ethernet
Connect to Event
Master Toolset or
External Controller
AC
Genlock
Connect to AC
BNC Input
power source
Quick install and setup
Getting started
Connect power — Ensure that power is properly connected
1
to the ImagePRO–4K.
Connect inputs — Connect all input sources to the
2
ImagePRO–4K.
Connect outputs — Connect the output(s) on the
3
ImagePRO–4K to your projector(s) or other target devices.
Turn on power — Turn on power to the ImagePRO–4K,
4
your projector(s), and to all peripheral equipment.
Note: To enter the Setup menu press the Adjust Knob.
Factory reset — If you are using the ImagePRO–4K for the
first time, or if you are using an ImagePRO–4K that has just
5
returned from an event, perform a full factory reset to restore
default system configurations.
Press the Adjust Knob to enter the Setup menu, then select
Reset / Factory on the display screen. Reset / Soft Reset
keeps the user settings.

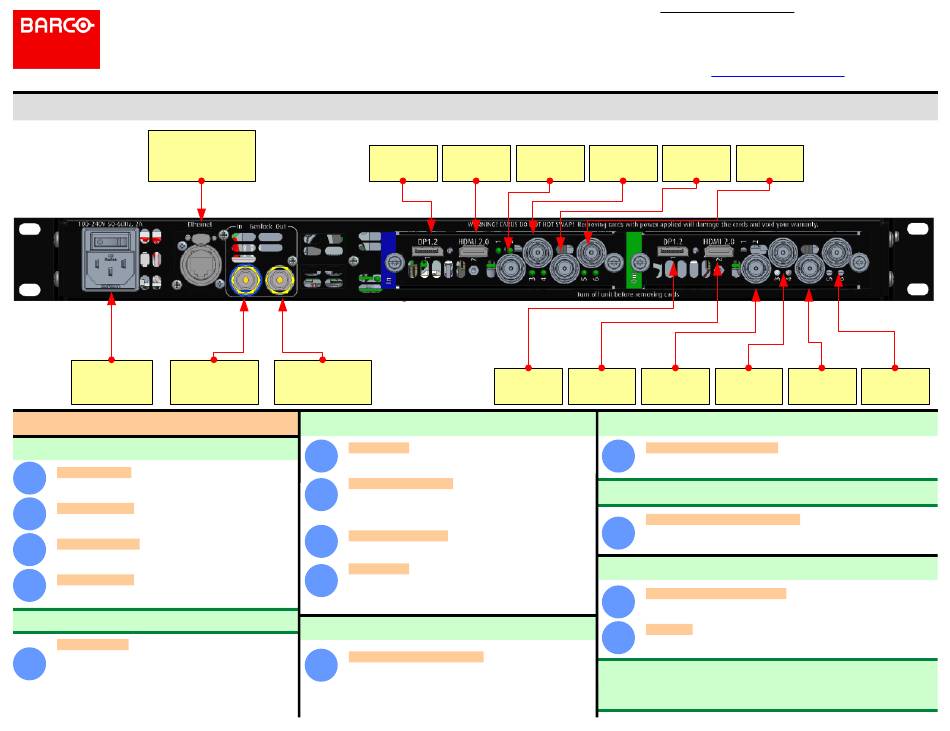

ImagePRO–4K Video Processor: Rear-Panel Setup
DP 1.2 HDMI 2.0
Input
Genlock
Generated
Reference Output
Setting up outputs
Native Rate — On the front panel, press the Adjust Knob to
6
enter the Setup menu, then select Setup / System menu and
select the desired Native Rate.
Assign primary output — If the primary output is DP,
7
proceed to the next step.
If your primary output is HDMI/SDI, go to Setup / Output /
AUX Adjustment and update the primary output.
Adjust output format — Go to Setup / Output / AUX
8
Adjustment and update the output format.
Test output — Turn on a test pattern, verify that you have an
9
image, and make any necessary adjustments. When
complete, turn off the test pattern.
Setting up an LED display
Position and adjust the image — Use the LED Setup Menu to
10
position the image on the LED wall or other display device,
scale the image, adjust Pan and Zoom settings, and save your
view.
12G SDI 12G SDI
Input Input Input
DP 1.2 HDMI 2.0
Output Output
Setting up inputs / source
11
Note: The ImagePRO–4K automatically acquires and configures inputs.
12
System settings
13
14
ImagePRO–4K User's Guide
For complete details on all installation and operations procedures, please
refer to the ImagePRO–4K User's Guide (R5906167).
Barco Technical Support:
USA: +1 (866) 374-7878
EMEA: +32 (56) 36 8019
40088 22726
China:
APAC: +603-78803362
Support: www.barco.com/en/support
12G SDI 12G SDI
Input Input
12G SDI 12G SDI 12G SDI
Output Output Output
Set and adjust inputs / source — Select inputs / sources and make any
necessary adjustments to color balance, timings, and so on.
Save input / source configurations — After adjusting an input / source,
save the input /source configuration.
Repeat steps 11 and 12 for each input / source.
Adjust and save system settings — Adjust system parameters such as
Ethernet settings and HDCP parameters.
Save All — Select Save All. Save All is the last menu item on the Setup
page. Save All writes system settings to non-volatile memory.
P/N 26-1602004-00, Rev 01
