EM GUI orientation
Layer
• Definition: A layer is one image stacked on top of another or a background.
• Features:
- Each mixer layer has two layers, Preview and Program. For complete flexibility, each layer can be
assigned to either PIP or Key functionality.
Image 6-30
- The mixing Background layer (BG) has the lowest priority.
- On any mixing layer, a PIP layer appears over backgrounds and under other layers of higher priority.
- PIP effects include mixes, resizing, and adjustable aspect ratio..
- A Key layer also appears over backgrounds and under other layers of higher priority. Key effects
include luminance keys and chroma keys.
• Adjustments:
- Layer Size & Position, Source Size & Position and Mask.
• Layer Effects
- Strobe, Flip, and Freeze.

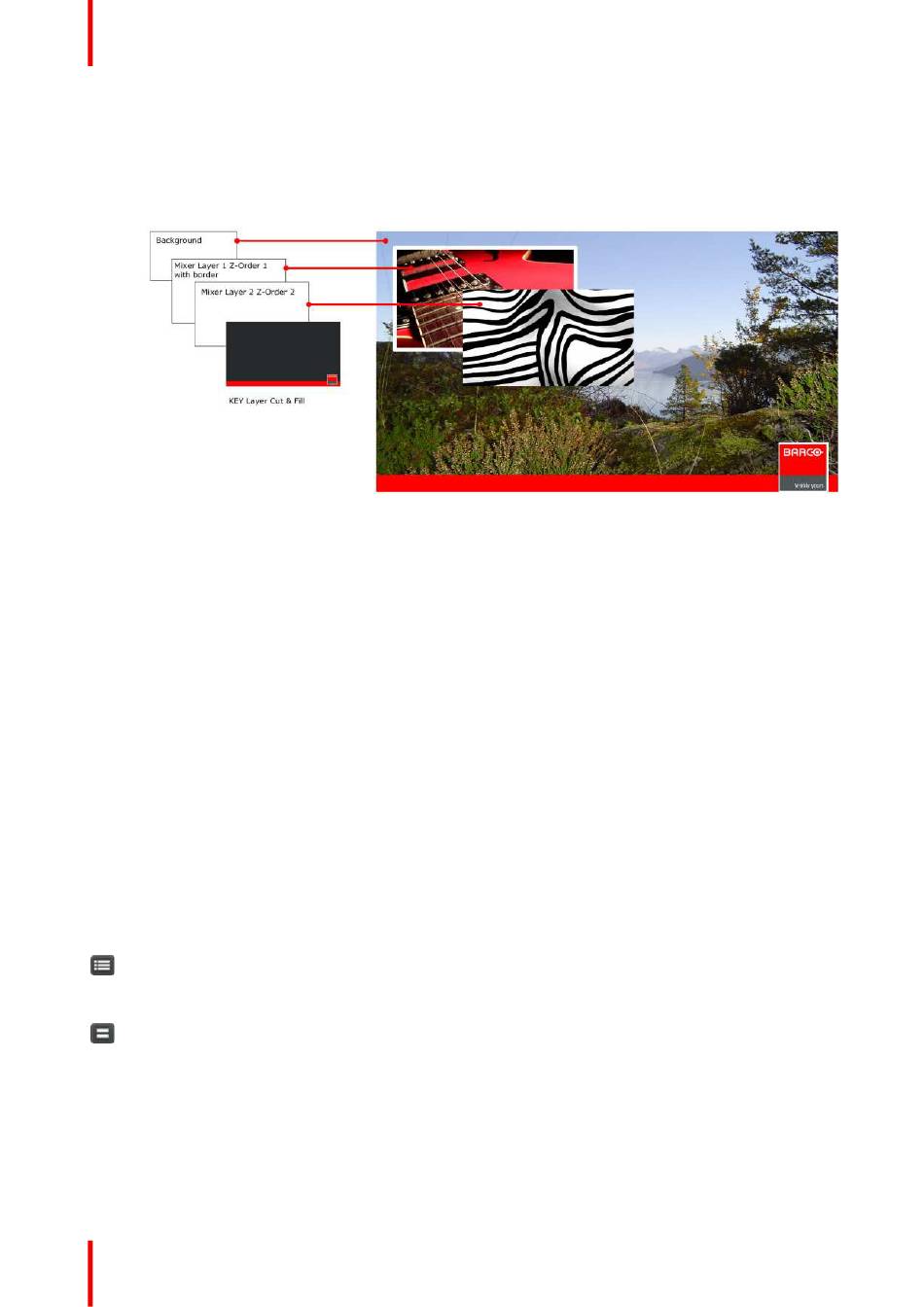

Input, Sources and layer example
Source Area description
In this menu, Sources defined in the Configuration menu are assigned to destinations via drag and drop
procedure. Each input has minimum one Source file, several can be created via copy original (Plus Icon) or
copy file (Double Page Icon).
There are 2 tabs in this section:
• Source: Lists Inputs and Sources available in the system. Sources are listed after the input and can be
view by clicking on the arrow next to the Input name. Stills and Destinations can also be used as sources.
• Background: Lists backgrounds and background still stores available for destinations.
For each of these lists two display modes are available. Toggle the view by clicking on appropriate icon:
List View
Thumbnail View
