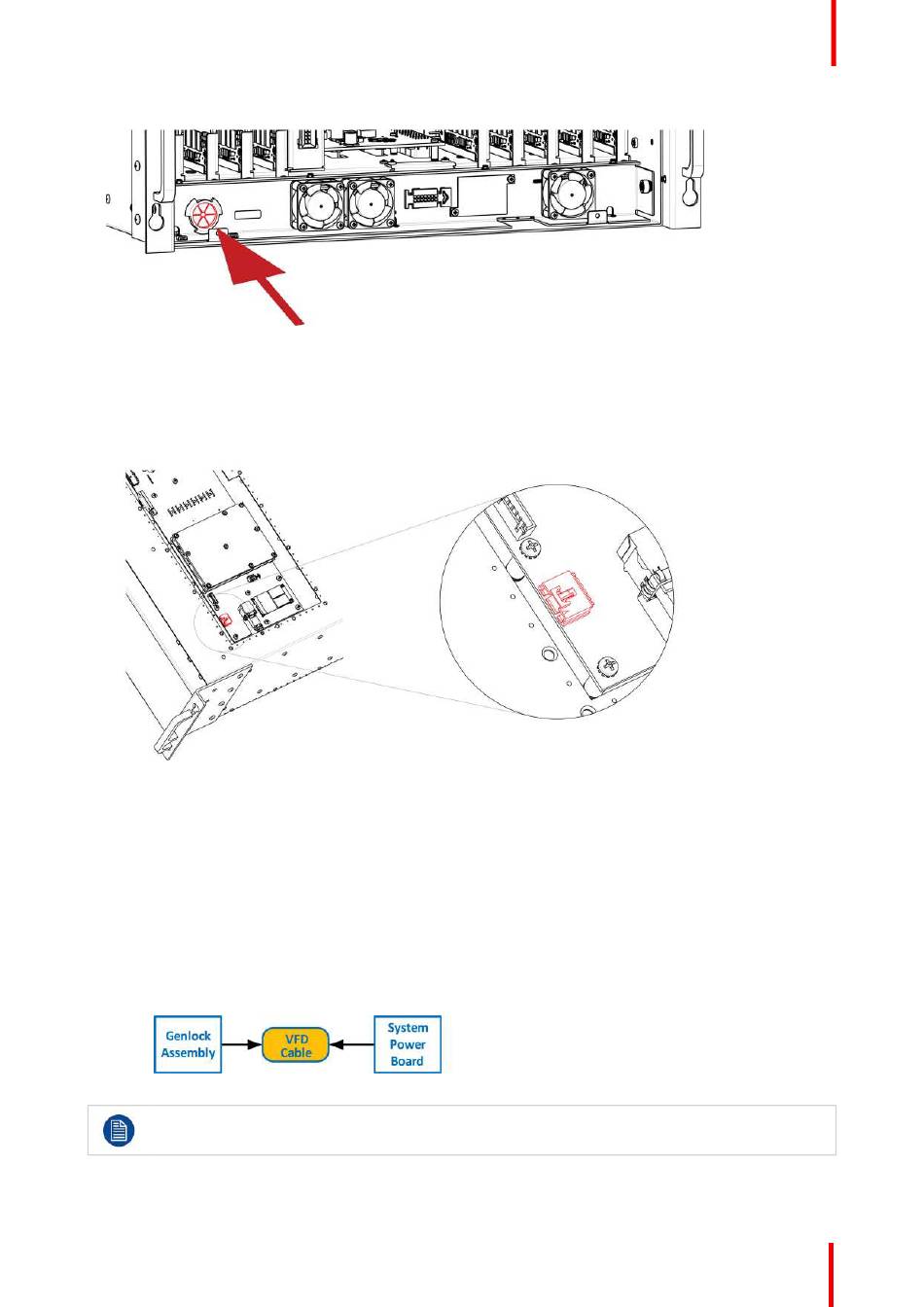

Image 13-70
4. Turn the unit upside down and remove the bottom panel (Follow the instructions provided in the bottom panel
removal section).
5. Locate the USB Extension cable that is plugged on the System-Power board.
Image 13-71
6. Unplug the USB Extension cable by gently pushing it out.
7. Pull the cable out of the unit.
How to install the USB Extension cable
To install the USB Extension cable follow the same procedure in the reverse order.

13.26 VFD Cable

Flow chart
Image 13-72
The flat ribbon VFD cable connects the VFD assembly to the System Power board. This procedure
provides instructions on how to disconnect the cable on both sides.
E2 Lite Maintenance
R5909934 /00 E2 Lite and EC-40 265
