E2 Lite Maintenance
Overview

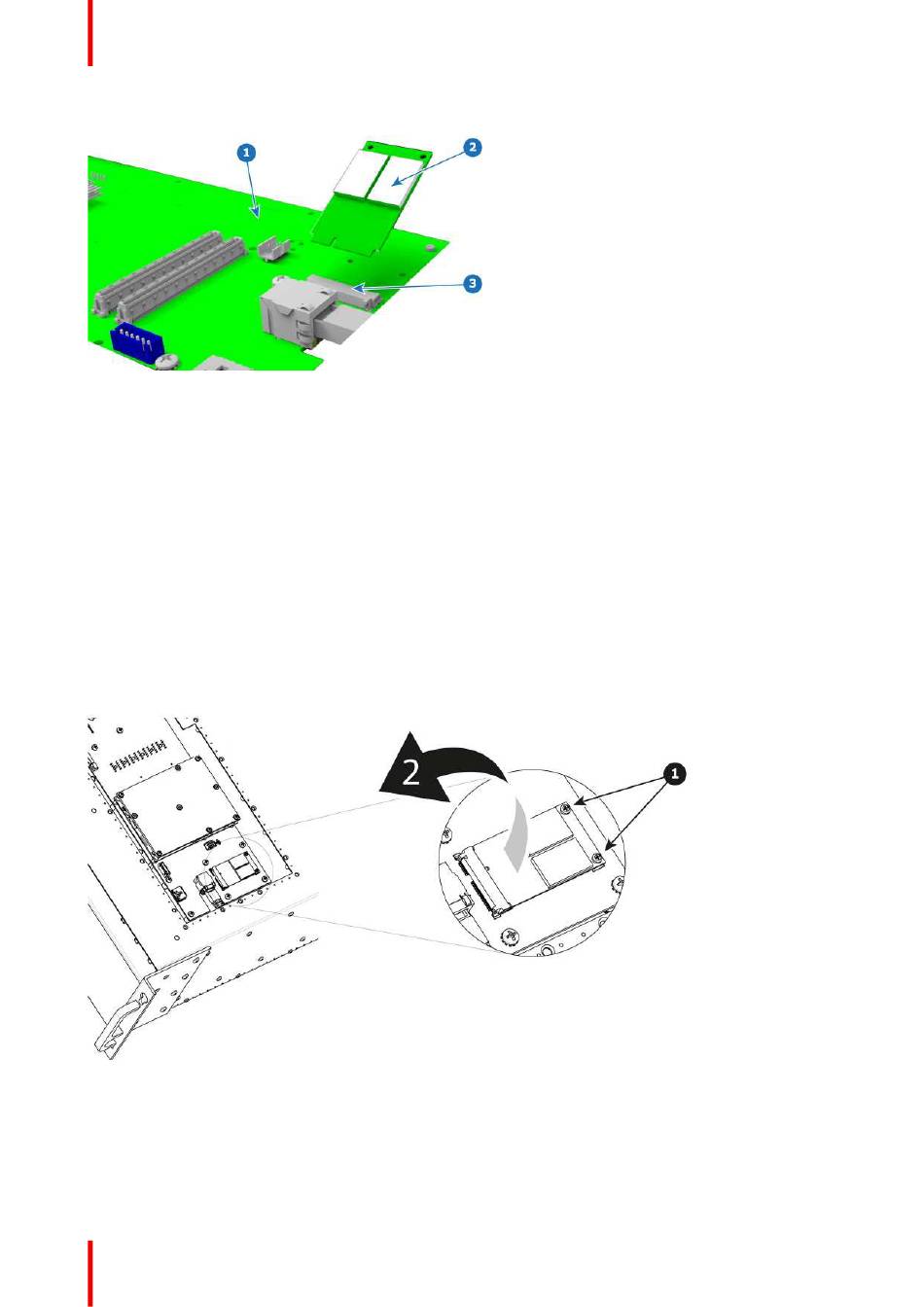

Image 13-48
1
System Power board
2
Solid State Memory card
3
Socket
Concerned parts
R767544K Solid State Memory
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Solid State Memory
1. Remove the 2 screws that hold the memory card.
2. Carefully remove the memory card from the socket.
Image 13-49
How to install the Solid State Memory
To install the Solid State Memory follow the same procedure in the reverse order.
