6.7 Configuration Menu

General
The Configuration menu is the module used to edit the Presentation Systems (creation, modification,
deletion). This page is the first page that appears when you launch the EM GUI software.
The user will use this page to add or remove devices to the selected system. The user also could modify the
parameters of these devices such as inputs, outputs, and destinations.
Description
The System configuration Menu is divided in 4 parts:

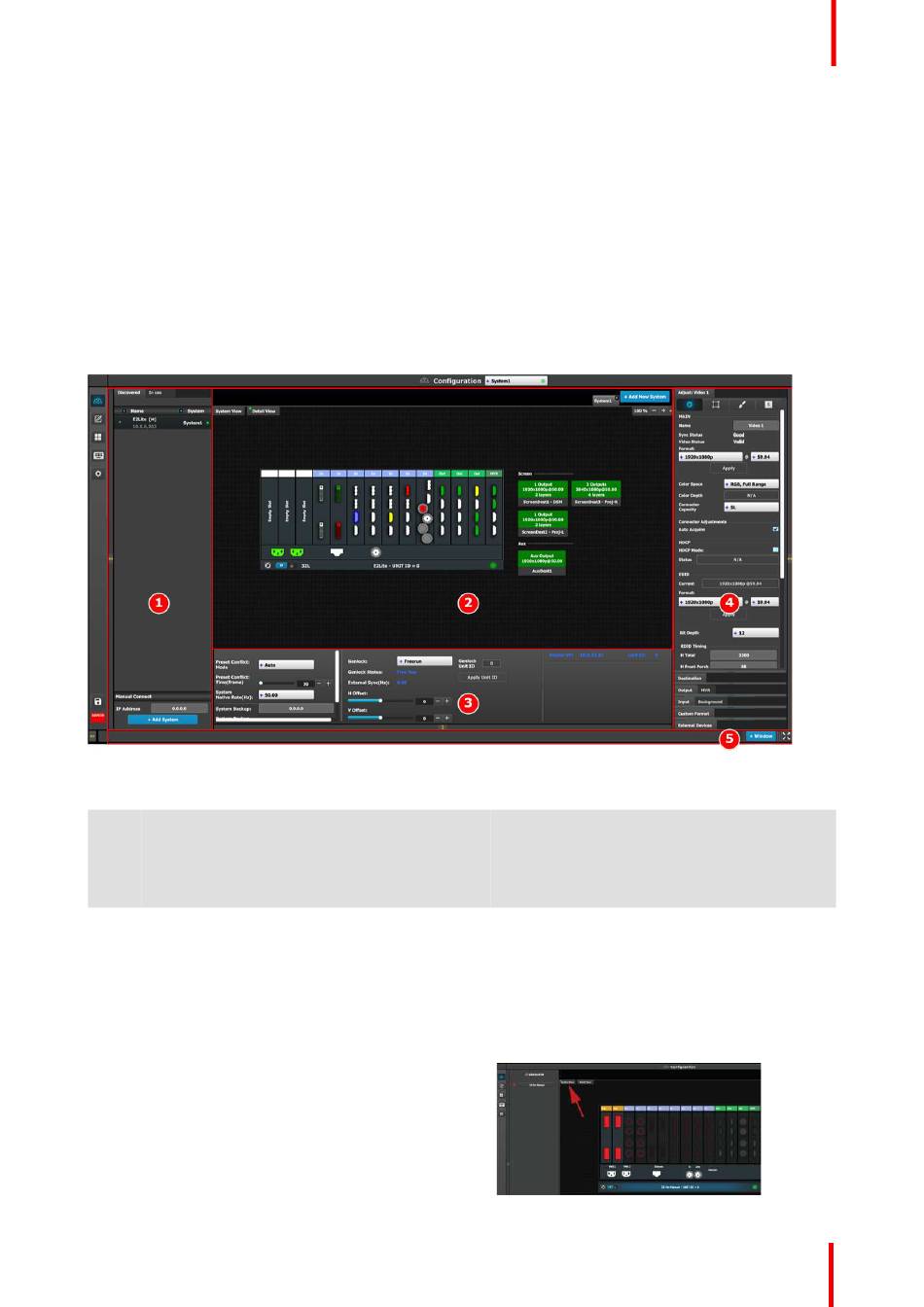

Image 6-6: System Configuration Menu
1 Network resource area
2 System diagram area
Available resources on the network are listed in
this area. There are 3 tabs in this section:
• Devices in use in the selected system.
• Discovered devices on the local network.
• Simulated devices.
The workspace has two different views, Detail
and System.
The selected systems details are graphically
represented in this area. To view a different
system you select the corresponding tab from
the top.
When the System is selected an overview of all
devices connected to one system is shown.
