EM GUI orientation
Description
80 R5909934 /00 E2 Lite and EC-40

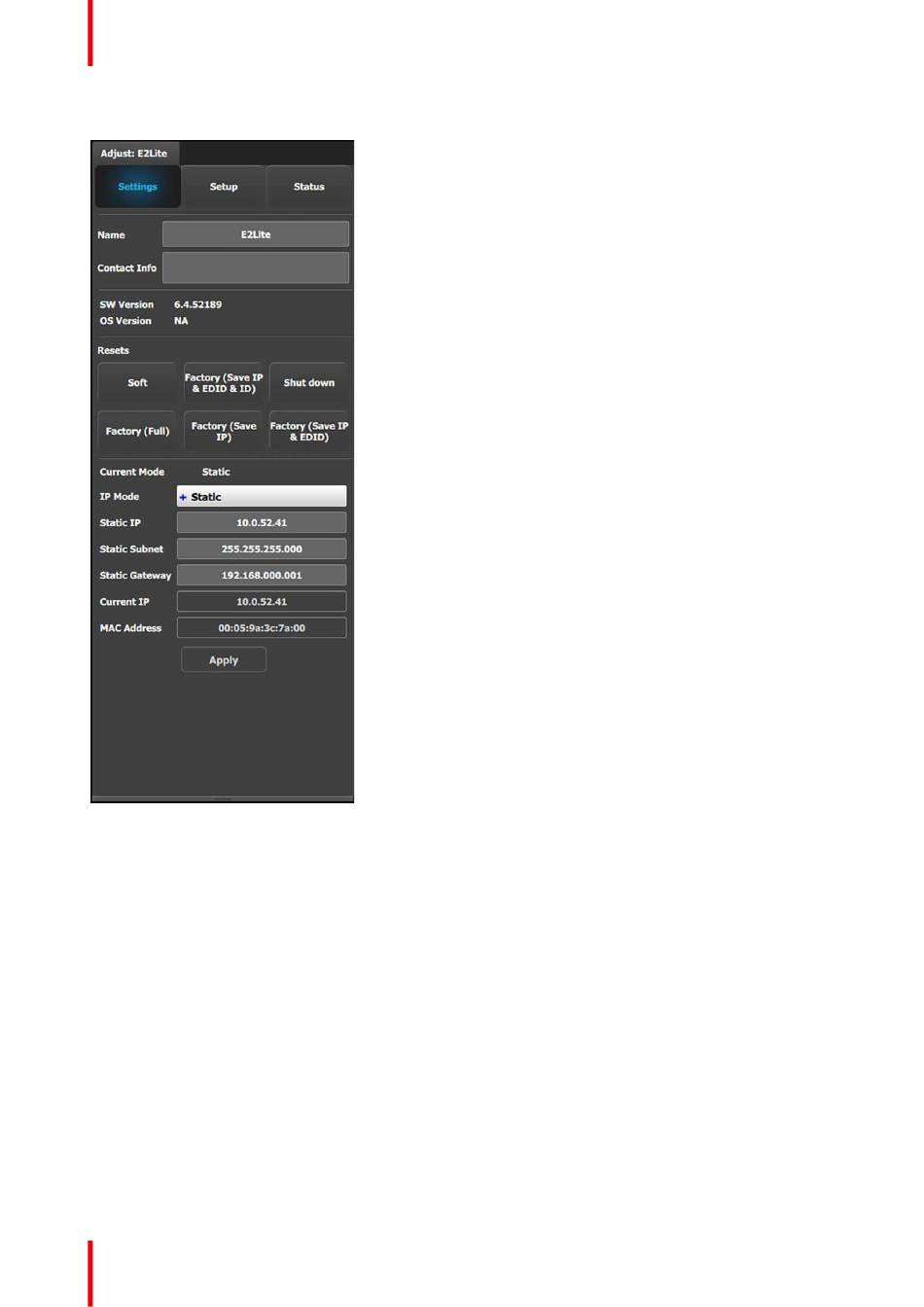

Settings tab:
• Name: The name of the unit can be edited here.
• Contact info: User information for contact person
responsible for the unit.
• SW Version: Unit's Firmware version.
• OS Version: Unit's OS version.
Note: The EM GUI has its Software version shown
in the Settings Page.
• Resets: (If the user selects one of the reset
options, a confirmation pop up appears.)
- Soft: Resets the unit without erasing any stored
settings, similar to a Power Off / On.
- Factory (Save IP & EDID & ID): Full factory
reset with the exception of keeping the Ethernet
setup (IP), the Input EDID settings, and the Unit
ID settings.
- Shut down: Powers down the unit.
- Factory (Full): Full factory reset erases all
stored settings.
- Factory (Save IP): Full factory reset with the
exception of keeping the Ethernet setup.
- Factory (Save IP & EDID): Factory reset, but
keep IP and Input EDID settings.
• Ethernet communication setup area.
IP Mode:
• E2 Lite = 192.168.0.175
If a DHCP IP address is required, the unit can be set to
accommodate that too.
The unit can also have a specific IP Address assigned
by the user to match a specific network environment.
The IP Address is changed by double-clicking on the
STATIC setting and assigning an allowed
configuration. For details on Network configurations
we refer to industry standard.
