EM GUI orientation
Description

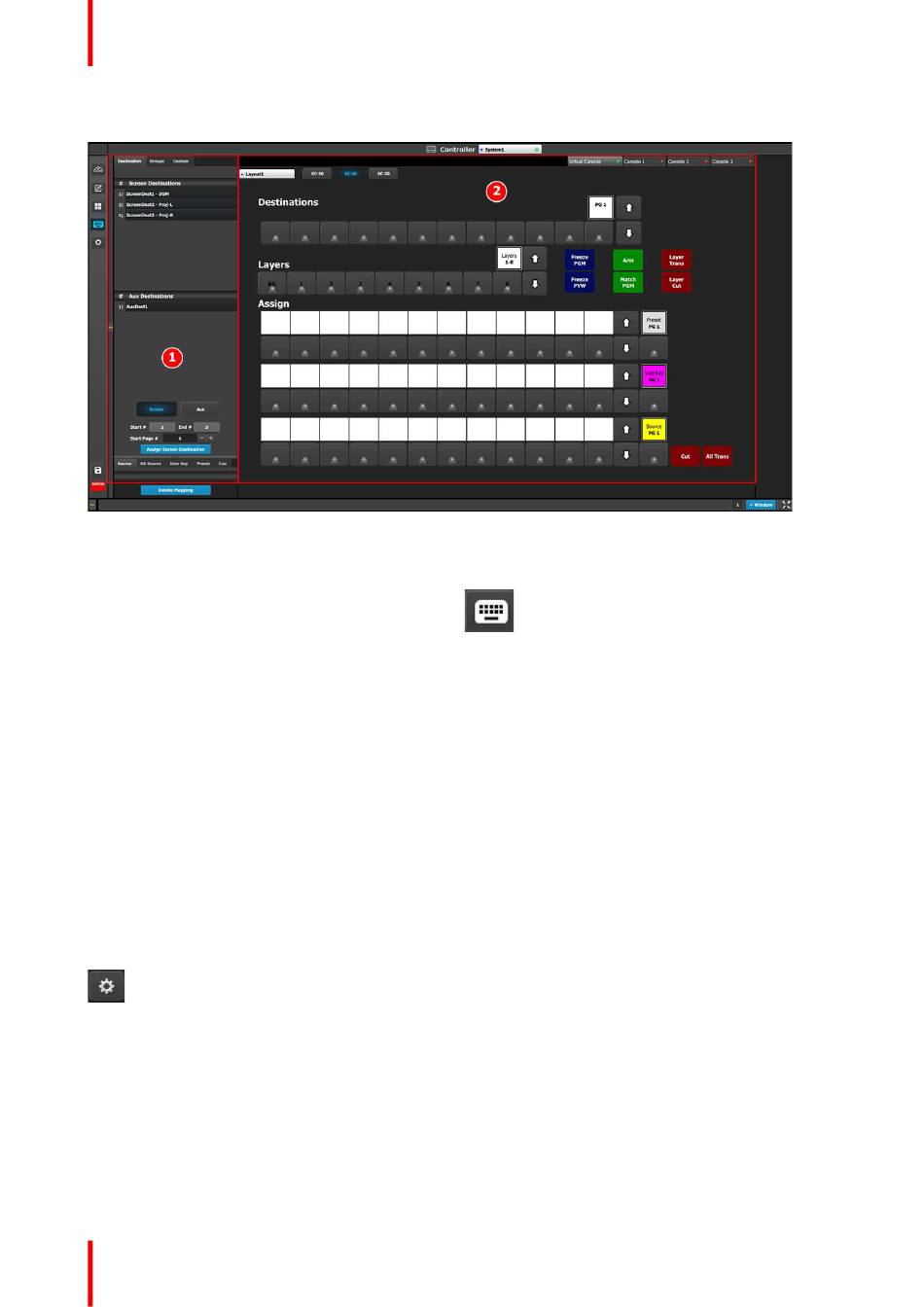

Image 6-72: Controller Menu Overview
1
Resources area
2
Virtual representation of the selected controller
This menu is accessible by clicking the Controller icon
The Controller setup page is divided in two parts. One list of available resources (right side of the page) and
one virtual representation of the selected controller.
The user can assign resources from the list onto controller buttons via drag and drop, or remove incorrect
mapping.
Refer to "Assigning resources to the desk ", page 212 for more information about the Controller Menu setup
page.

6.38 Settings Menu

General
The Settings menu provides access to the Event Master series processor web app that is built into the unit.
The app provides users with diagnostic reports, includes an FAQ section and contact information and supports
system backup / restore and new firmware installation.
Description
This menu is accessible by clicking the System Settings icon on the menu bar on the left side of the UI. If
there are no System / VPs connected in the system, this button is disabled.
162 R5909934 /00 E2 Lite and EC-40
in the menu bar on the left side of the UI.
