Barco NGS-D220 Quick Start Manual

4 User Guide

You can find the User Guide here:

1. Open the link https://www.barco.com/en/

2. Search for NGS-D220.

3. Select the link to NGS-D220 Lite / Product / Introduction / Input nodes

4. Select the tab Technical Downloads.

5. Open the User Guide.

OR:

In the NGS-D220 web interface, open Device Info > Help

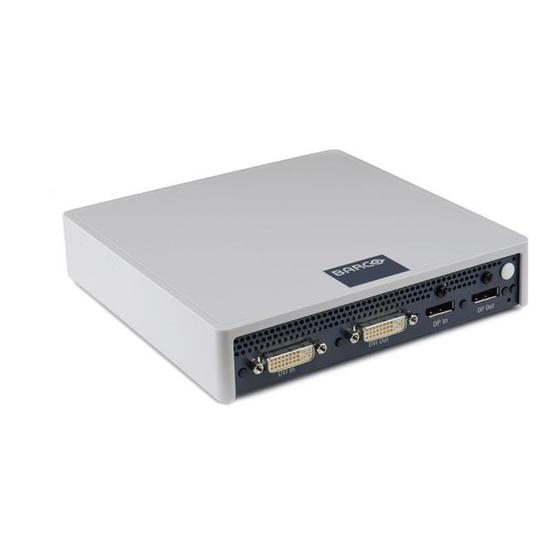

NGS-D220

What's in the box ?

Your Barco NGS-D220 comes with:

1. Mains cable for Europe

2. Mains cable for USA

3. External power supply (12V/60W)

Notes:

1. Keep your original packaging. It is designed for this device and is the ideal protection

during transport.

2. If any of the accessories is missing or damaged, contact Barco Customer Support for an

immediate replacement.

3. Do not place any weight on top of the unit. It is not designed to support weight and

internal components can be damaged if objects are placed on top of it.

NGS-D220

Quick Start Guide

K5903094-03

Table of Contents

Do you have a question about the NGS-D220 and is the answer not in the manual?

Page 1: User Guide
1. Keep your original packaging. It is designed for this device and is the ideal protection during transport. 2. If any of the accessories is missing or damaged, contact Barco Customer Support for an immediate replacement. 3. Do not place any weight on top of the unit. It is not designed to support weight and internal components can be damaged if objects are placed on top of it.
Page 2: Installation Diagram
3 Setup wizard Open your web browser to configure the NGS-D220. Enter the IP address of your NGS-D220 into the address bar of your web browser and trust the connection to access the web configuration. Setup steps: 1.
