6.14 Configuration Menu > Adjustment >
Background Configuration
General
Because the E2 Lite uses only Stills and mattes as backgrounds, the Background configuration controls are
disabled.

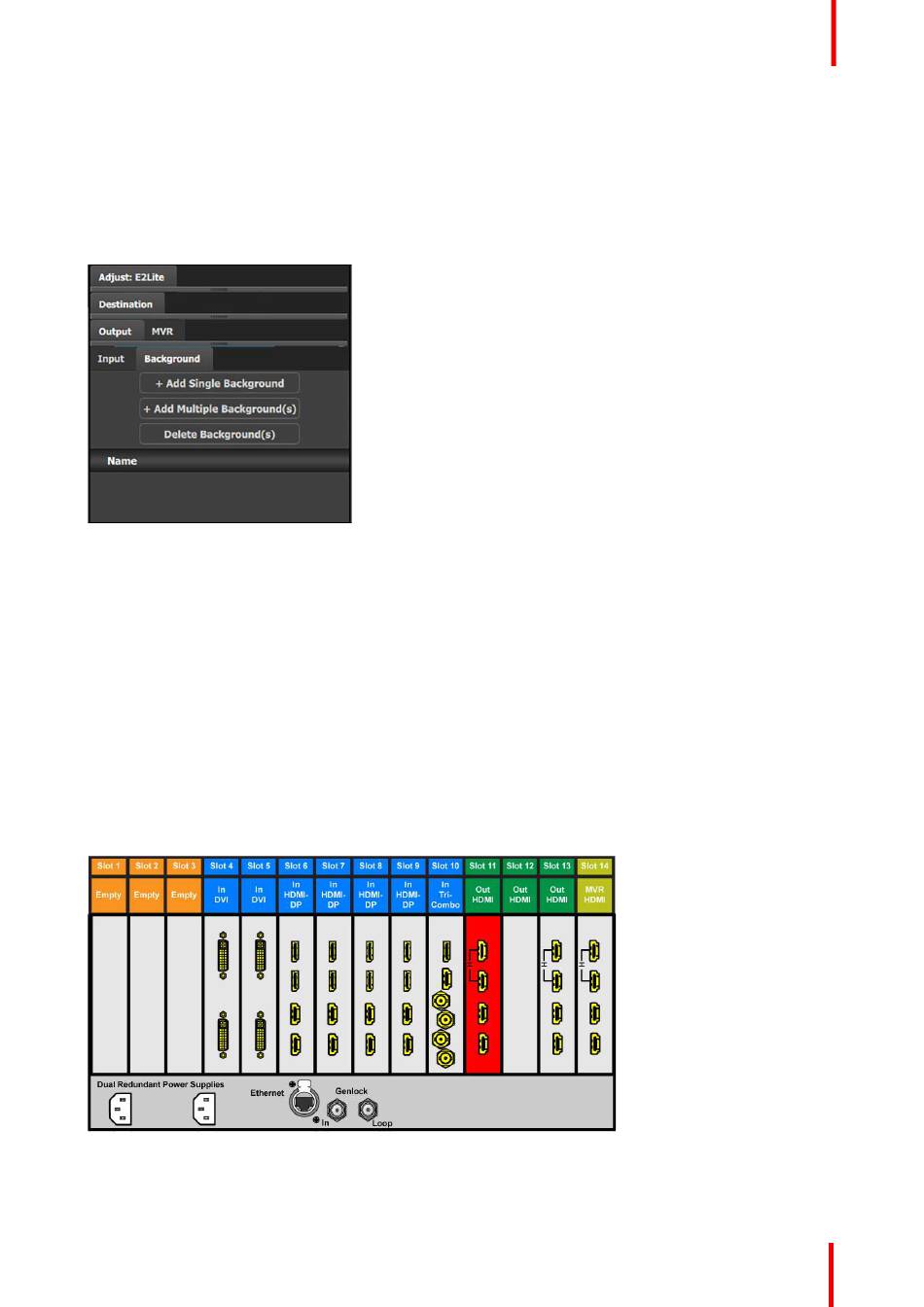

Image 6-17: Background configuration disabled
6.15 Configuration Menu > Adjustment > Output
Configuration
General
In the Output menu users can assign output connectors to configurations and adjust signal parameters to
match the display devices connected to the unit.
Output Card arrangement
On the E2 Lite model, the output cards occupy slots 11 through 13 and right justified to slot 13.
If there is an empty output slot, all output cards to the left of that empty slot will be red. Red indicates that
although the cards will operate properly, outputs from these cards will not be available at the Multiviewer.
Image 6-18: E2 Lite with an empty output-card slot
