as "Input 1, 2, 3....". Input configuration names can be renamed by double-clicking on the name and turning
the box blue.

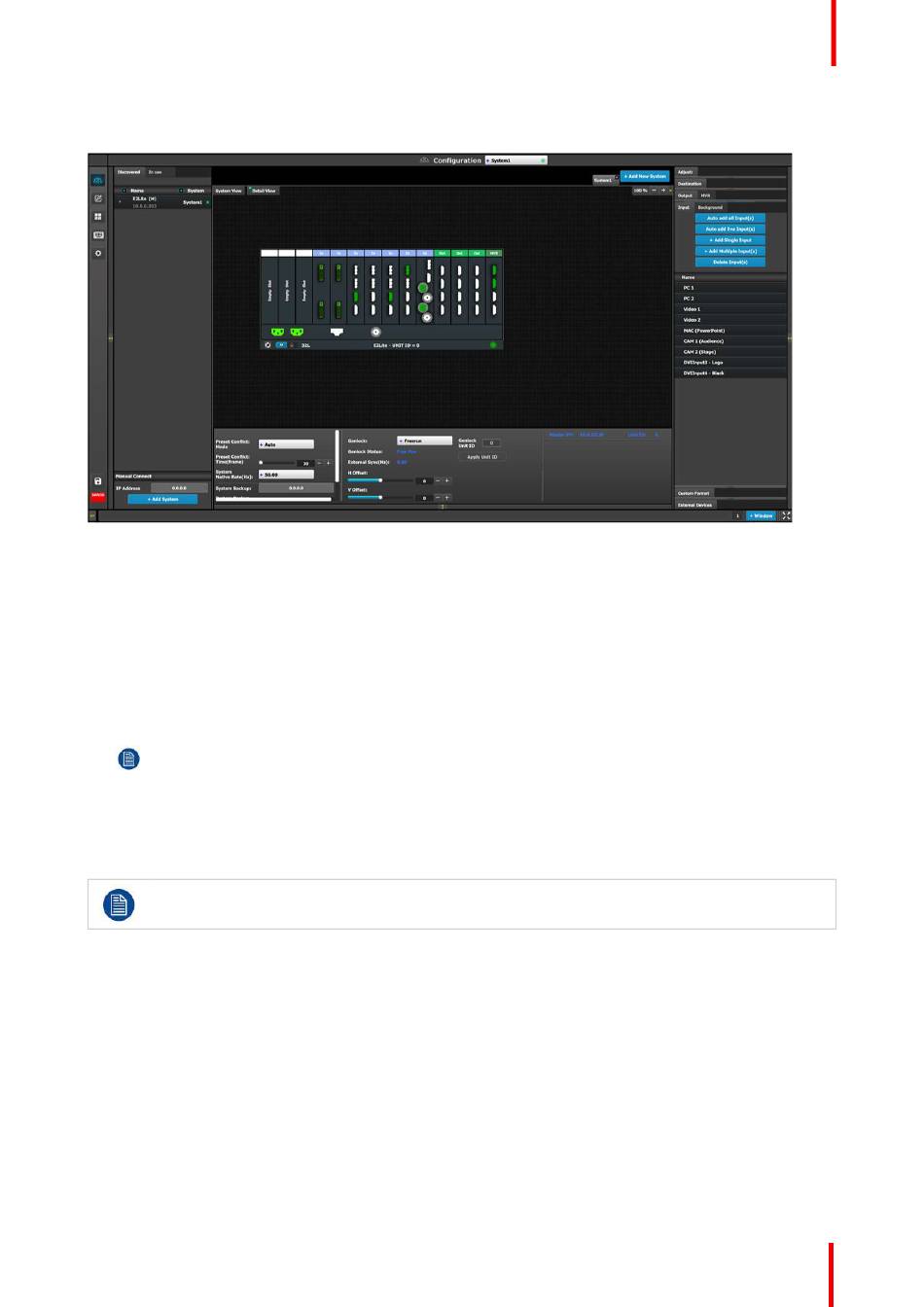

Image 6-15: Configuration menu, Adjustment area, Input
The auto add feature adds only up to 2K resolution inputs. 4K Inputs need to be assigned manually. See How
to add Input section below.
How to add Input
Inputs configurations can be added manually to unassigned connectors.
1. Click on the Add Input button.
The Add Input button is replaced by the Done Adding button (highlighted in blue).
2. In the System diagram area, click on the connector(s) that need to be assigned.
Note: If the input signal is 4K provided by the 4 SDI connectors, 4 SDI connectors need to be selected.
Connector(s) is immediately highlighted in blue.
3. The selection is completed by clicking the Done Adding button that is highlighted in blue.
A new Input is added in the input list.
To stop the add procedure without add new input, just click on the Done Adding button without
selecting an input.
How to delete Input
1. Click on the Delete Input(s) button
The Delete Input(s) button is replaced by the Delete Selected button (highlighted in red).
2. Click on the corresponding connector in the graphical area.
or
click in the "x" on the right hand side in the input configuration list.
Connector(s) is immediately highlighted in blue.
3. The deletion is completed by clicking the Delete Selected button.
