E2 Lite Maintenance
Overview

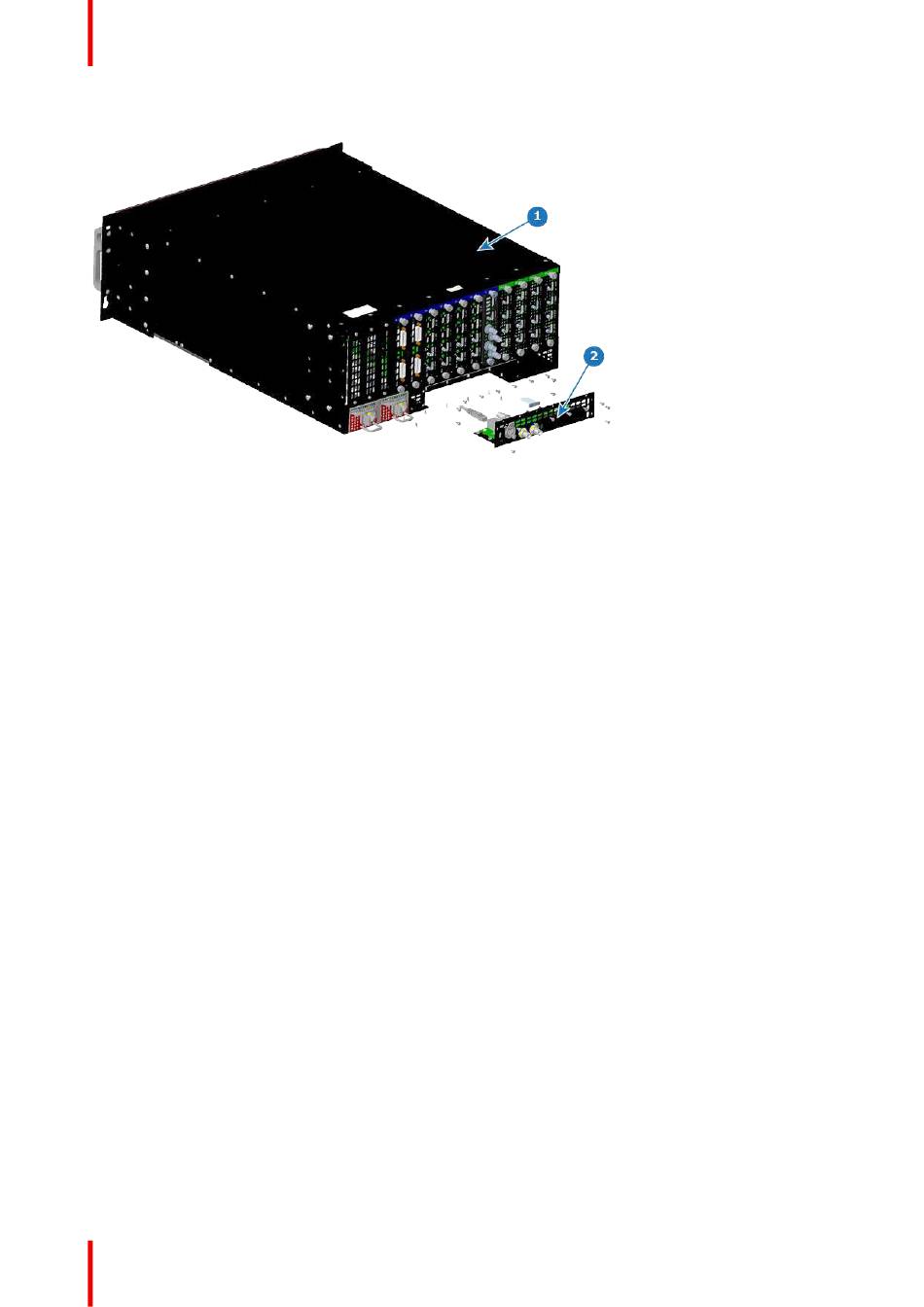

Image 13-63: Genlock assembly removal
1
Chassis
2
Genlock Assembly
Concerned parts
R767552K Genlock Assembly
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Genlock Assembly
1.
Remove the seven flat head screws (4-40 X .25) that attach the Genlock assembly to the rear side of the
chassis.
2.
Remove the ten pan head screws (4-40 X .25) that attach the Genlock assembly to the rear of the chassis.
260
R5909934 /00
