EM GUI orientation
138 R5909934 /00 E2 Lite and EC-40

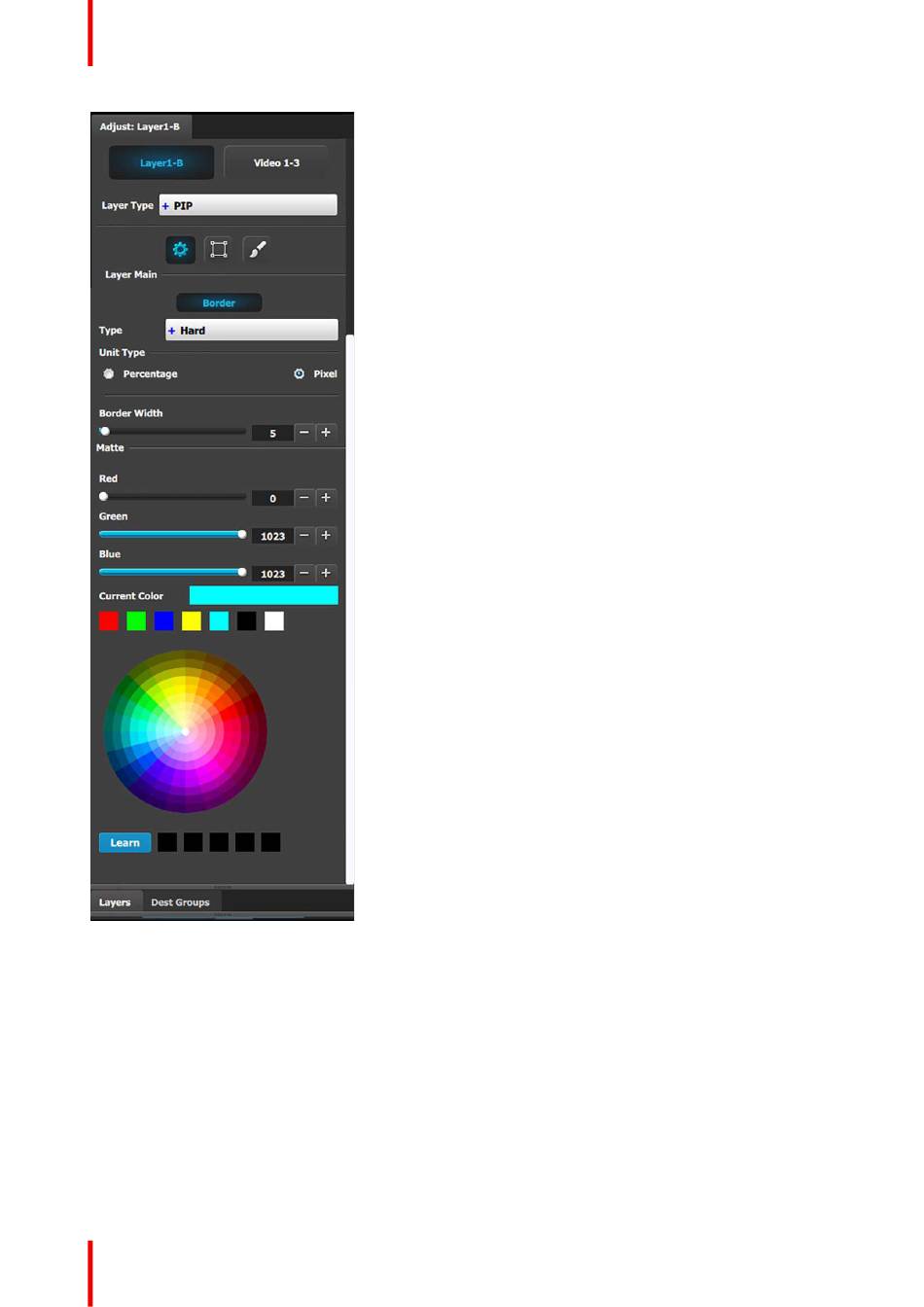

• Borders are enabled by selecting the type of to
apply.
Note: Only hard borders are available on the E2
Lite processor.
• Border width and color are selected by adjusting
the corresponding sliders or entering a figure in
the adjacent edit boxes. The border width can be
entered either in Percentage of the vertical size or
in pixels.
• The selected color is shown in the Current Color
bar. The color can also be stored by clicking in one
of the square boxes at the bottom of the menu
next to the Learn button. These boxes are quick
shortcuts to select that color for the Border.
• Another way to specify a color is to click on the
Color wheel. The slider values will change
accordingly as the mouse moves around the color
wheel.
• Learn: The "Learn" button in the bottom is a way
to store custom colors to be used for later. The
way to use this area is to:
a) Pick a color to save, using color wheel or the
R/G/B adjustments.
b) Click Learn button.
c) Click any one of the buttons on the right.
d) The color that was picked is now stored in this
button.
