EM GUI orientation
This button transitions the Preview into Program according to the transition rate. The transition Rate is
transition rate in frames of the native rate.
Four transition types are available: Linear, S-Curve, Logarithmic and Exponential.
Image 6-61: Available transition types
CUT button
Pressing the CUT button immediately presents the Preview to the Program.

6.30 Multiviewer (MVR) Menu

General
The last card slot on the E2 Lite processor may be either a normal Output slot or a dedicated Multiviewer. (See
the description of the Setup tab in "Configuration Menu > Adjustment > Unit Configuration", page 79 for
instructions on how select this slot as either an Output slot or a Multiviewer slot.)
A Multiviewer enables multiple sources (inputs, Backgrounds, outputs) to be displayed on one or two
monitors. Screen Destinations (Program and Preview) can be used up to two times in any Multiviewer Output.
The position of the window for each copy can be different, but the size of the window for each copy is always
the same." Multiviewer Menu is the module used to setup the Multiviewer outputs.
Description
This menu is accessible by clicking the Multiviewer icon in the menu bar on the left side of the UI.
The three drop-down menus in the title bar select the system, unit or layout displayed in the multiviewer. For
release one, only one system and one unit are supported.
The Multiviewer page is divided in four parts.

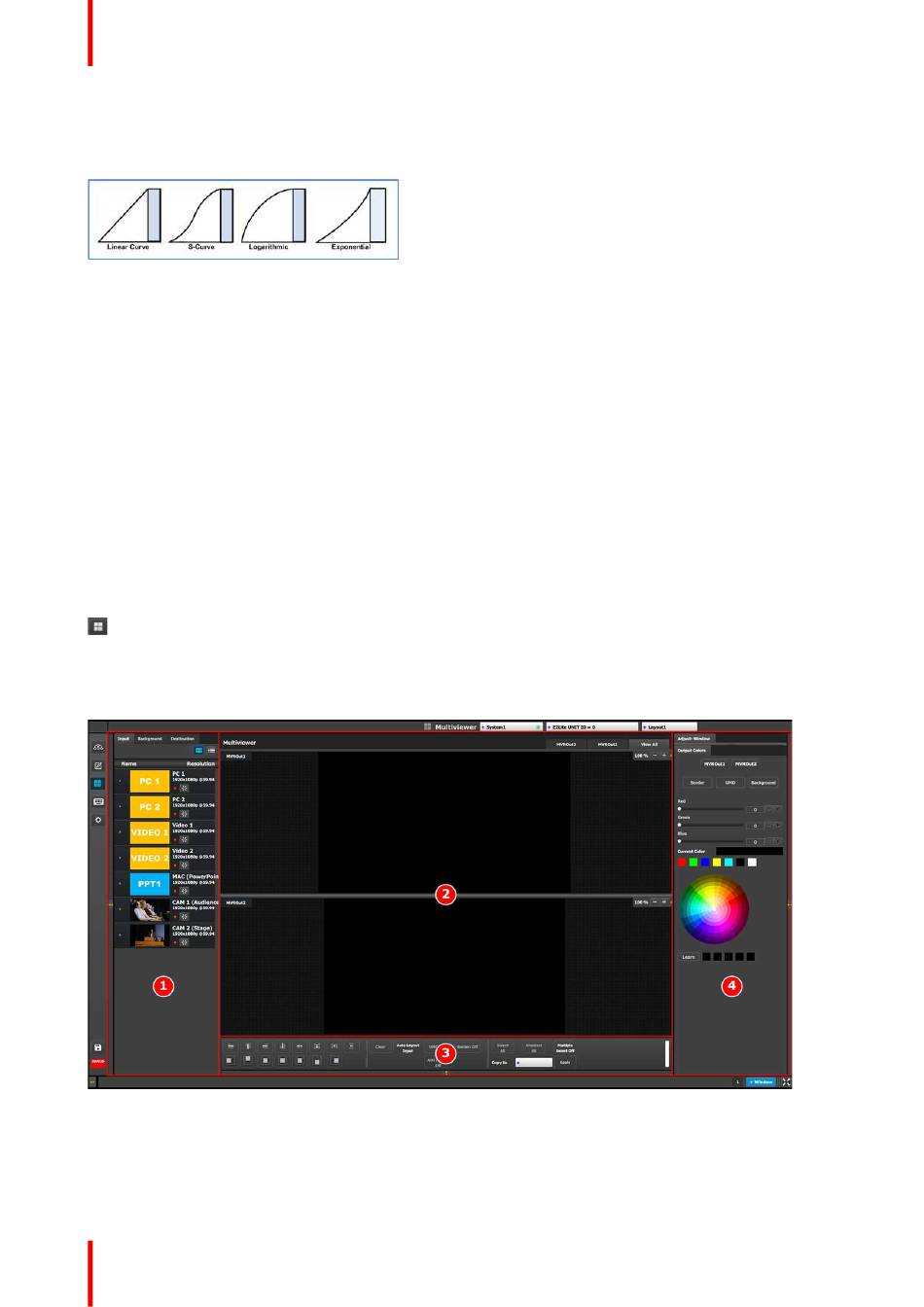

Image 6-62: Multiviewer Menu Overview
