Layer Buttons - Barco Event Master E2 Lite User Manual

Controller Orientation
Description
The 12 destinations buttons have several pages which allows an operator to define custom orders and layouts
of mapped Destinations.
The name of the destination is written in the bottom of the console menu page. It can be shown or hidden on
preference.
The Contextual Display above button 12 will show the range of buttons 1 – 12, 13 – 24 etc. Use the Arrow (up
and down) to change the range.
LED color under the Destinations buttons are BLUE. This indicates the Destination is selected when lit.

9.7 Layer buttons

Overview

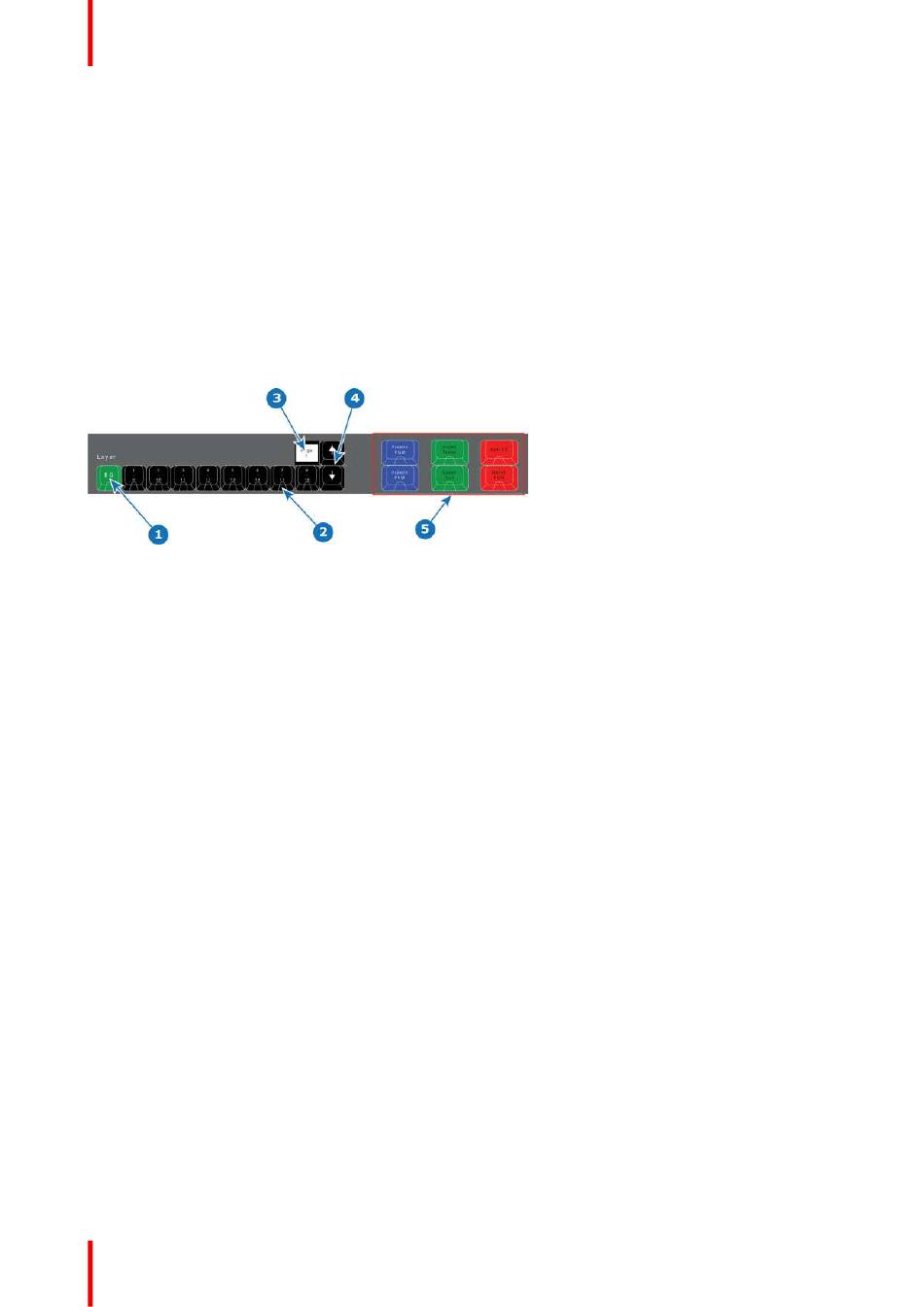

Image 9-6
1 Background button + 8 Layer buttons.
2
LED (Red or Green).
3
Contextual Display (show the range of buttons —
e.g. 1–8).
Description
There are 9 Layer buttons with as many pages as supported by the system. The red or green LEDs under
these buttons indicate the selection of layers. The first button is ALWAYS background layer and therefore
marked BG.
LED color under Layer buttons are RED and GREEN:
LED color Description
Red Selected on PGM
Green Selected on PVW
Button 2 – 9 is marked 1/8 on top and 9/16 on the bottom of the button.
The contextual Display above the button marked 8/16 will show the range of buttons 1 – 8, 9 – 16 etc. Use the
Arrow (up and down) to change the range.
Layer Operator Buttons
The six larger buttons to the left of the Layer buttons are Layer Executor buttons mapped to the corresponding
functions in the EMTS. These are further explained below in chapter "Controller Operation", page 215.
204 R5909934 /00 E2 Lite and EC-40
4 Arrow buttons (up and down).
5
Layer Operator buttons.
