Please note the following important points regarding In Auto Acquire:
• It is recommended that you turn Off Auto Acquire in applications where you have already configured and
saved the system's input setup.
• If Auto Acquire is On and a valid input is selected that does not have a saved input associated with it, the
system attempts to detect and acquire the source. This process may take a few moments.
• If Auto Acquire is Off, the system uses the last-known configuration for each input, to the extent possible,
comparing the input's timing to the configurations in the system's library. These configurations can be
custom files or system default configurations.
• Most users can leave In Auto Acquire on. Advanced users who know the input video timing parameters
may choose to turn In Auto Acquire off and select the parameters manually.

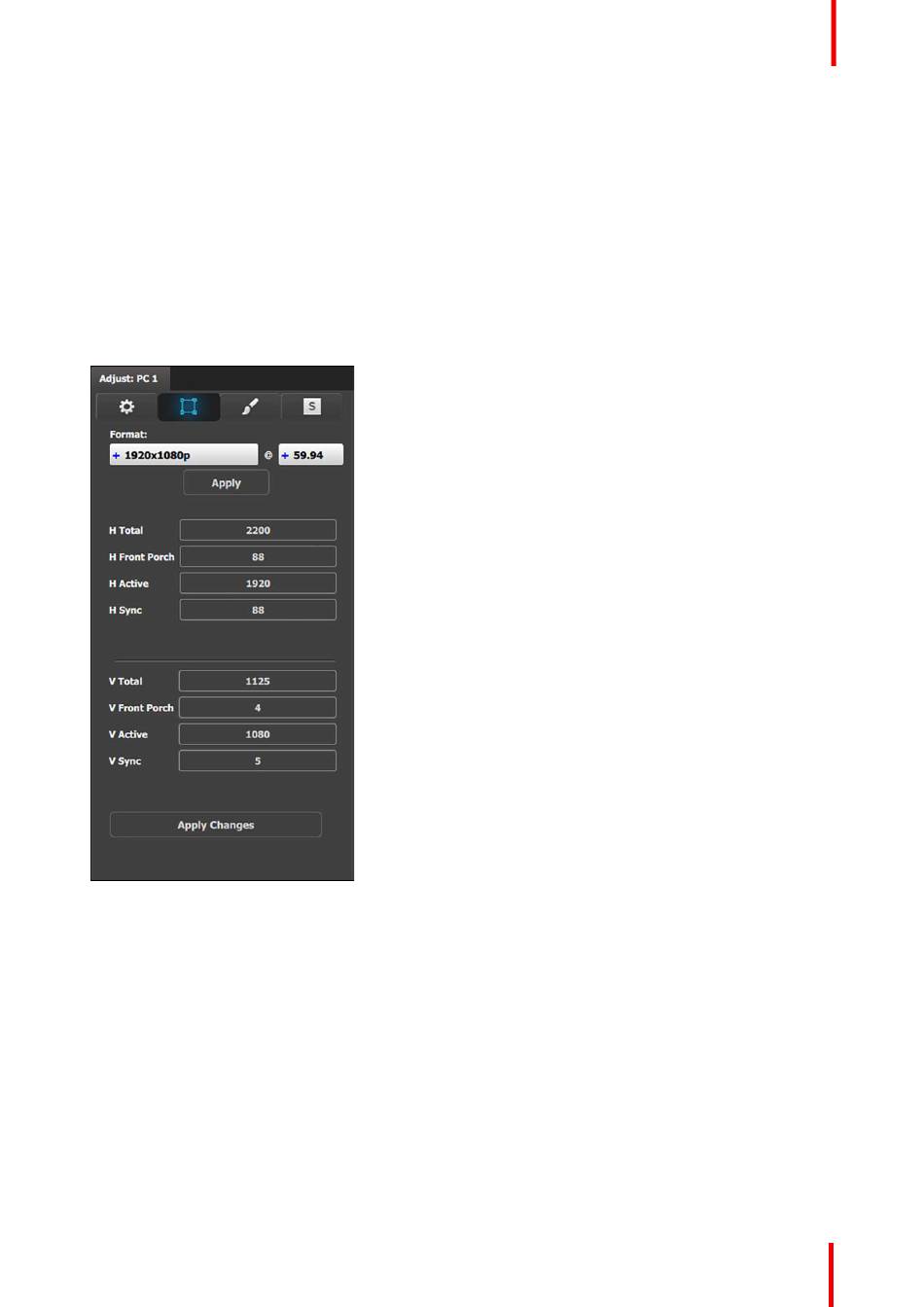

Input adjustment panel > Format & Timing
This is a status and informational menus. No adjustments can be done on this Format and Timing panel.
• Format: Video format of the input
• H Total: Total pixel count per line
• H Front Porch: The offset between the end of the
active area and the beginning of H sync
• H Active: The horizontal size in pixels of the active
area
• H Sync: H sync width in pixels
• H Polarity: Polarity (active High or Low) of the
horizontal sync pulse (N/A in SDI)
• V Total: Total line count per frame
• V Front Porch: The offset in lines between the end
of the output active area and the beginning of V
sync
• V Active: The vertical size of the output active area
• V Sync: V sync width in lines
• V Polarity: Polarity (active High or Low) of the
vertical sync pulse (N/A in SDI)
