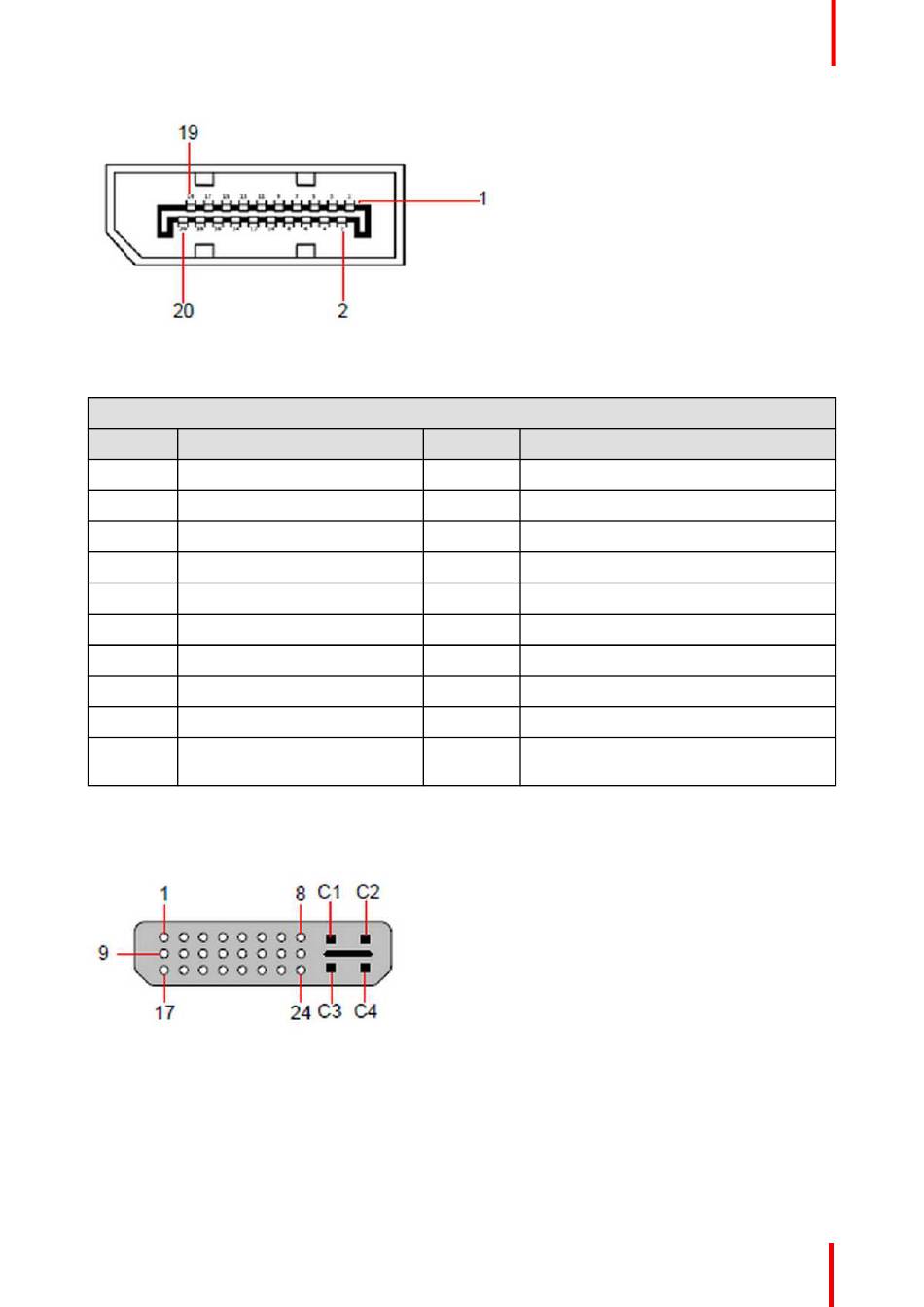

Image A-1: DisplayPort connector
The following table lists the DisplayPort connector pinouts.
DisplayPort connector
Signal
Pin
1 ML_Lane 0 (p)
2 GND
3 ML_Lane 0 (n)
4 ML-Lane 1 (p)
5 GND
6 ML_Lane 1 (n)
7 ML-Lane 2 (p)
8 GND
9 ML_Lane 2 (n)
10 ML_Lane 3 (p)
DVI connector pinouts
The following figure illustrates the DVI connector.
Image A-2: DVI connector
The following tables lists DVI Connector pinouts. Please note:
• T.M.D.S = Transition Minimized Differential Signal
• DDC = Display Data Channel
Signal
Pin
11 GND
12 ML-Lane 3 (n)
13 CONFIG1 (connected to Ground)
14 Config2 (connected to Ground)
15 AUX CH (p)
16 GND
17 AUX CH (n)
18 Hot Plug Detect
19 Return (return for power)
20 DP_PWR Power for connector (3.3 V, 500
mA)
