Controller Operation

11.1 General Overview

Overview
The layout of the keyboard of the EC-40 controller is designed to give direct access to memories and
selections in a live situation.
Programming, Playback, and Edit of any given event is greatly sped up, enhancing the abilities of an operator
to react quickly to any given situation.

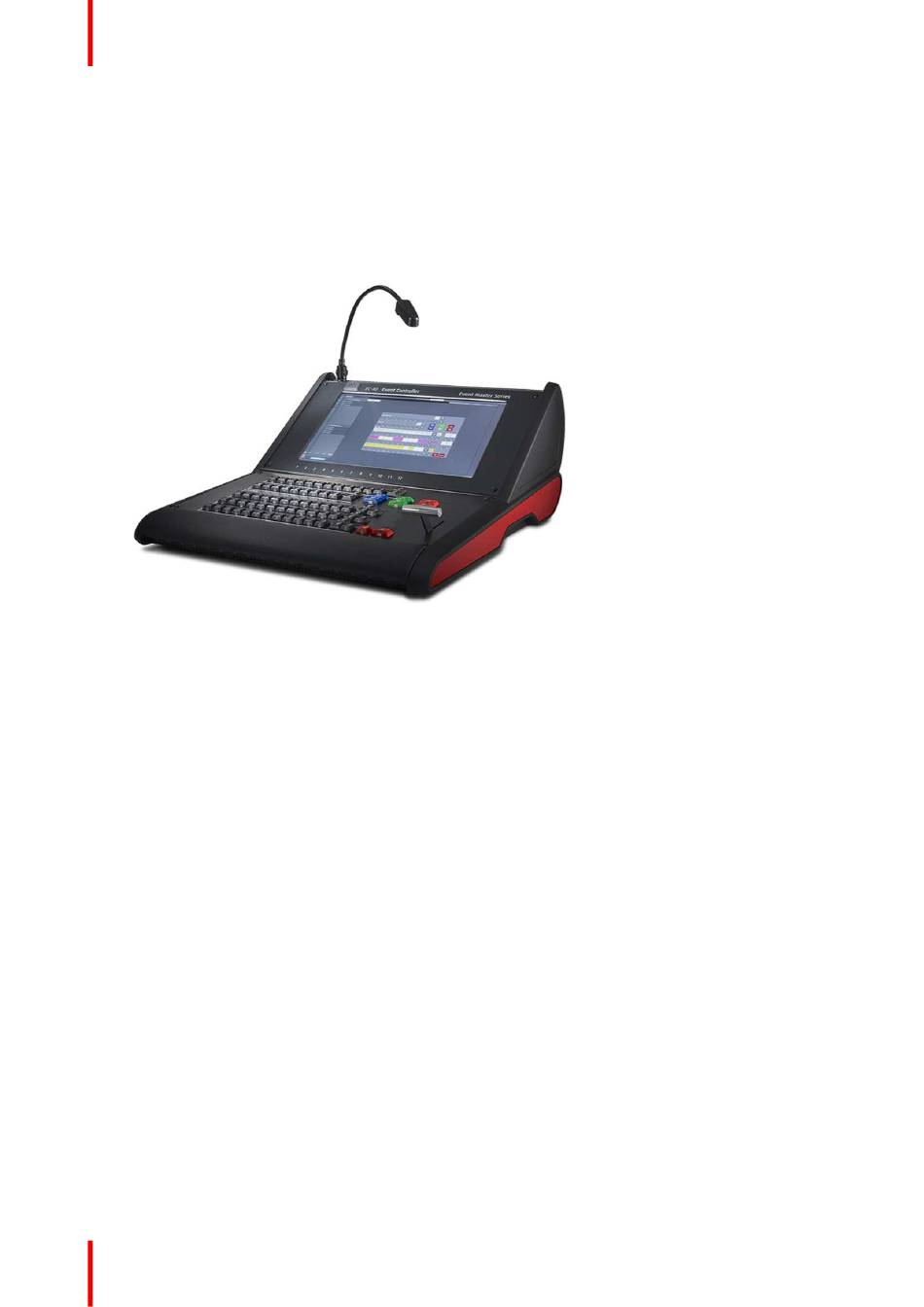

Image 11-1: Event Master EC-40 controller

11.2 How to select destinations

General
Once the row of Destination buttons have been mapped they can be used to select or deselect them.
A range of actions can be performed with this selection:
• Transition via Cut or All-Trans.
• Included in the record of a Preset;
• Prepare the destination for Layer manipulation.
• Change time of the destinations Transition. Note: time is assigned to each destination individually.
In general it can be said that the selected Destination via the console have the same actions available as in
the Event Master Toolset, just in a more hands-on direct way.

11.3 How to use the Layer buttons

General
Similar to the Destination Buttons the Layer buttons create a selection for further actions.
Buttons are as standard in the same select mode as the destinations, latch on, latch off. Other modes will be
available.
A range of actions can be performed with this selection:
• Assign a Source file via the Assign buttons in Source mode.
• Layer Transition or Cut via the Red Layer Executors to the right of the Layer button row.
• Freeze via the Blue Layer Executors to the right of the Layer button row.
• Arm via the Green Layer Executors to the right of the Layer button row.
