EM GUI orientation
Description of the Options tab of the Resources area
• Language: This parameter allows the user to choose the language of the GUI. Note: The only language
available in version 1.5 is English.
• Version Number: version number of the Event Master Toolset (read only).
• Build Version: build version of the version of Event Master (read only).
• Event Master Toolset UI Reset(s)—Factory (Full): A Factory (Full) reset deletes all information and returns
the UI to factory settings.
• Layer position Center of destination, coordinate for PIP's positioning PIP: allows the user to choose the
default layer position.
- If selected the position X=0 and Y=0 will be in the center of the destination and Pixel 0 will be in the
center of the PIP.
- If unselected the pixel X=0 and Y=0 will be on top left of the destination and Pixel 0 will be on top left of
the PIP.
• Preset recall will not force conflict resolution: When this box is checked, conflict resolutions are not forced
when recalling a Preset. A pop-up window appears, requiring user confirmation. The user's choices are:
- Resolve–All Trans
- Resolve–Cut
- Resolve–Wait
- Cancel
• Auto Trans/Cut will not force conflict resolution: When this box is checked, conflict resolutions are not
forced when either the All Trans button or the Cut button is activated.
• Virtual Keyboard Disabled button: This button enables or disables the virtual keyboard.
• Keyboard Shortcuts enabled/disabled button: This button enables or disables keyboard shortcuts.
• Keyboard shortcuts list: The following keyboard shortcuts are available in the Event Master Toolset
software.

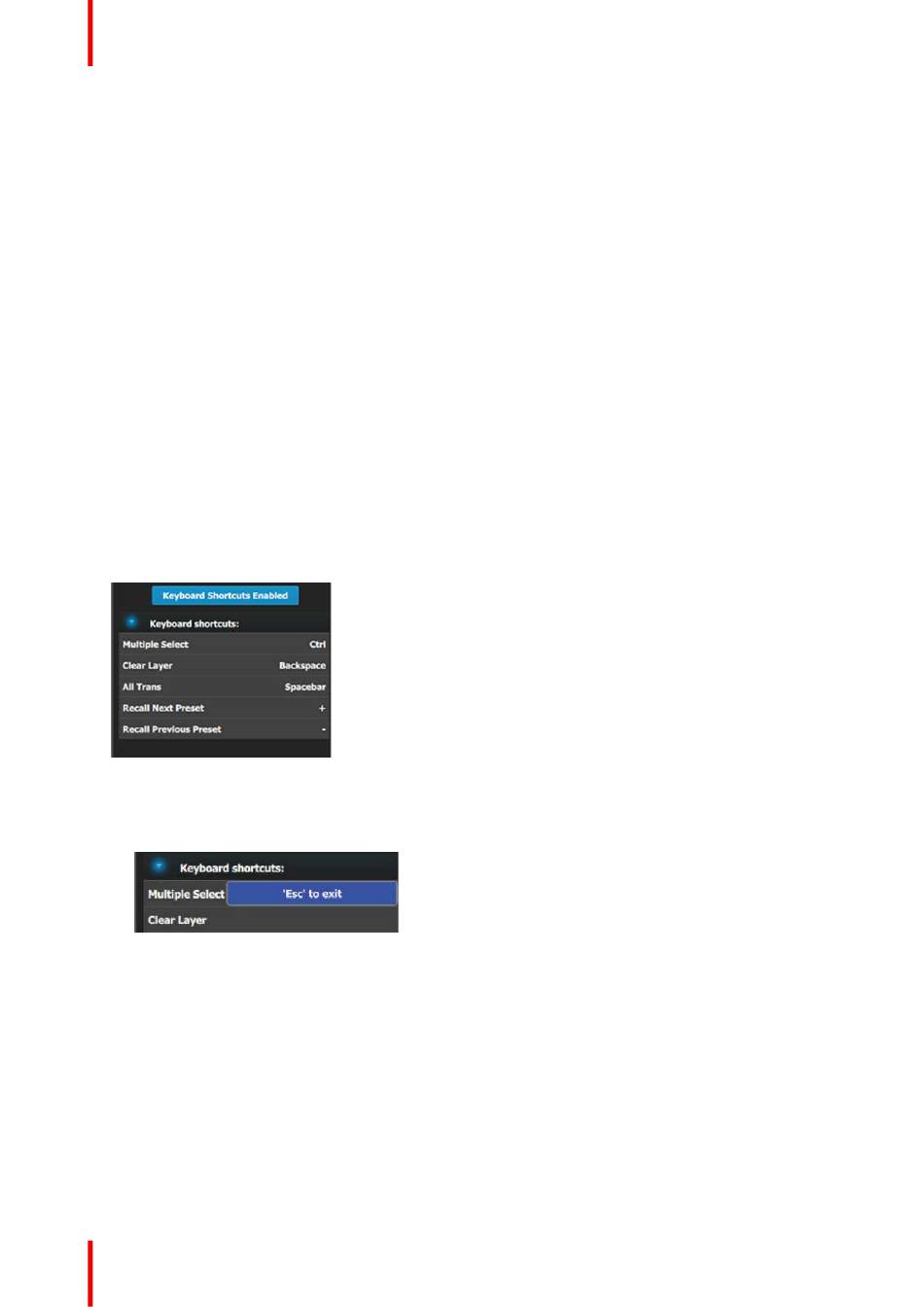

Image 6-74: Keyboard shortcuts
It's possible to change any shortcut key:
a) Double click on the shortcut name (e.g. Multiple Select).
A popup appears near the shortcut name.
Image 6-75
b) Press any key on the keyboard.
This key will affect to the selected shortcut.
Description of the Controller tab of the Resources area
The Controller tab shows EC-50 and EC-200/EC-210 settings and is applicable only when an EC-50 or an EC-
200/EC-210 controller is connected to the system. The Controller tab has three subtabs: Software, User Pref,
and Diagnostic.
