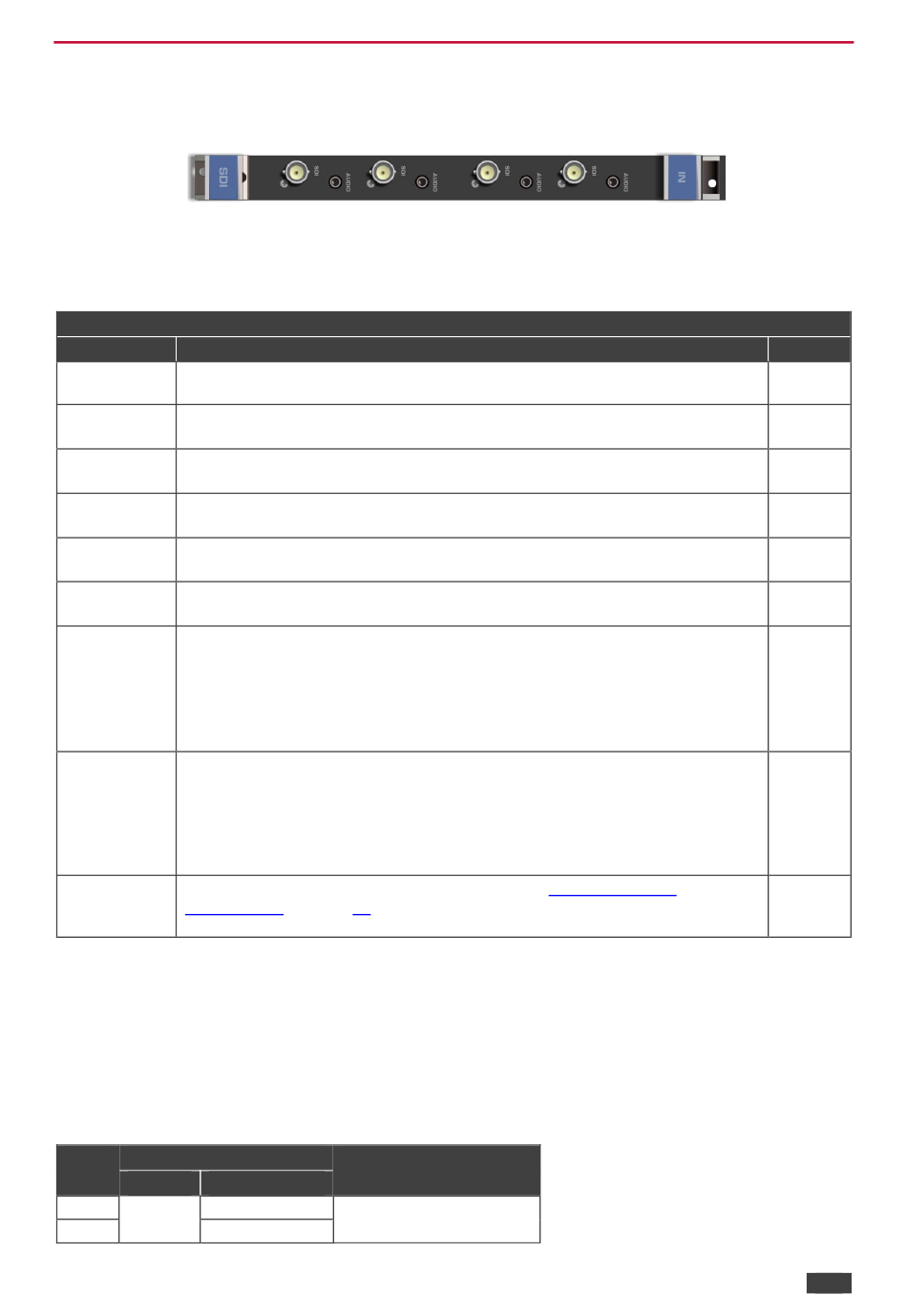

Defining the SDIA-IN4-F32

The SDIA-IN4-F32 is a 4-Input SDI with Analog Audio Card (F-32):
SDIA-IN4-F32 Configuration
The SDIA-IN4-F32 configuration table appears as follows:
SDIA-IN4-F32 Input Card
Parameter Description
Color Space Selects the color space of the internal video bus (input is converted to this
color space for internal processing only): RGB, YUV422, YUV444.
Reset Input Re-power—Power cycles the port.
Factory default—Performs a factory reset to default values of the port.
Volume Sets the volume of audio port. Range: 0-70.
Note: Not applicable when digital audio is selected.
Audio Sets the balance of the audio port. Range: 0-100.
Balance
Note: Not applicable when digital audio is selected.
Audio Bass Sets the bass of the audio port. Range: 0-15.
Note: Not applicable when digital audio is selected.
Audio Treble Sets the treble of the audio port. Range: 0-15.
Note: Not applicable when digital audio is selected.
Audio Mute Enables muting or enabling the audio on the audio port:
MUTE—Mutes the audio input.
Non-MUTE—Unmutes the audio input.
Note: When set to Mute, any change to the audio parameters automatically
sets this to unmute.
Note: Not applicable when digital audio is selected.
Audio Select Selects the audio source:
Auto—Audio signal selection is controlled by the presence or absence of a
plug in the 3.5mm mini jack. When present, AUD-Analog is selected, when
absent, AUD-Embedded is selected.
AUD-Embedded—In-band SDI audio is selected.
AUD-Analog—3.5mm mini jack analog stereo audio is selected.
SDI_AUDIO_ Selects the SDI audio channel. Range: 0-15 (see
SWITCH Configuration
Embedded.
SDI Audio Switch Configuration
The selected in-band SDI channels to be embedded into the HDMI matrix port audio channel
can be configured in the SDI_AUDIO_SWITCH menu. Each input's SDI audio switch can be
configured separately. The card stores the current option for each port.
The following table describes the values in the SDI_AUDIO_SWITCH menu:
Value SDI Audio Number
Group # Channel Pair #
0 1 1
1 2
VS-3232DN-EM – Using the Input / Output Cards
on page 62). Only available when Audio Select is set to AUD-
Description
2 channels (Stereo)
