UHD-IN4-F32 / UHD-OUT4-F32 Technical Specifications
The following table defines the technical specifications.
PORTS:
BANDWIDTH PER CHANNEL:
TOTAL BANDWIDTH:
MAXIMUM RANGE:
3D PASS THROUGH:
HDMI SUPPORT:
POWER CONSUMPTION:
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
HUMIDITY:
DIMENSIONS:
PRODUCT WEIGHT:
SHIPPING WEIGHT:
STANDARD COMPLIANCE:
SAFETY REGULATORY
COMPLIANCE:
ENVIRONMENTAL REGULATORY
COMPLIANCE:

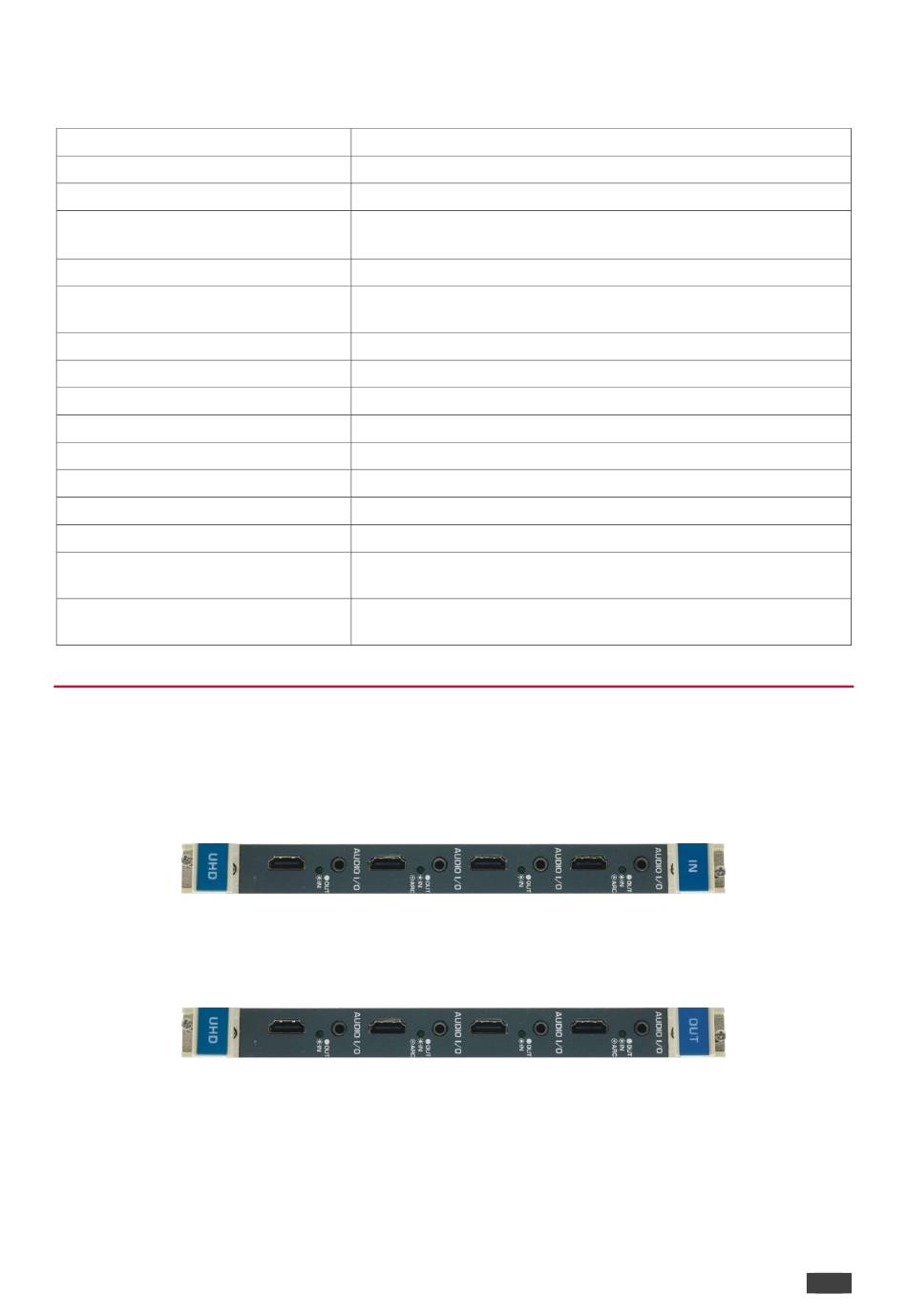

Defining the UHDA-IN4-F32 / UHDA-OUT4-F32

The UHDA-IN4-F32 is a four-channel 4K60 4:2:0 HDMI with analog audio input card. The
UHDA-IN4-F32 inputs four HDMI signals to the chassis with optional embedding/de-
embedding of unbalanced stereo audio to/from each HDMI port on the card:
The UHDA-OUT4-F32 is a four-channel 4K60 4:2:0 HDMI with analog audio output card. The
UHDA-OUT4-F32 outputs four HDMI signals from the chassis with optional de-
embedding/embedding of unbalanced stereo audio to/from each HDMI port on the card:
The UHDA-IN4-F32 and UHDA-OUT4-F32 cards feature:
•
Selectable Analog Audio Mode:
▪
On the top and third jacks, select embedded, de-embedded or ARC.
▪
On the second and bottom jacks, select embedded or de-embedded.
•
EDID capture: Copies and stores the EDID from a display device.
VS-3232DN-EM – Using the Input / Output Cards
4 HDMI
2.97Gbps per graphics channel
8.91Gbps data rate
10m (32ft) – 4K60 4:2:0 or 4K30 4:4:4
15m (49ft) – 1080p 12 bit (deep color)
Supported
3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital
Plus, DTS-HD®, 7.1 multi-channel audio
Input / Output card: 8W
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
10% to 90%, RHL non-condensing
22cm x 18.8cm x 2cm (8.7" x 7.4" x 0.8") W, D, H
0.23 kg (0.51 lbs) approx.
0.37 kg (0.82 lbs) approx.
HDCP 1.4, HDMI 1.4, HDTV compatible
CE
Complies with appropriate requirements of RoHs and WEEE
