Port Numbering

All cards (except DVI dual link cards) have four physical ports. Numbering of ports is
sequential from top to bottom and left to right. Each DVI dual link card provides two physical
ports which causes the loss of two numbers in the numbering sequence of that card only. A
sample numbering is shown in
Diagram #
Actual Port Number
1
IN 1, IN 2, IN 3, IN 4
2
IN 5, IN 6
3
IN 9, IN 10, IN 11, IN 12
4
OUT 1, OUT 2, OUT 3, OUT 4
5
OUT 5, OUT 6, OUT 7, OUT 8
6
OUT 9, OUT 10
There is no IN 7, IN 8, OUT 11, or OUT 12 because these slots contain DVI dual link cards.
VS-3232DN-EM – Connecting the VS-3232DN-EM
Figure
5.

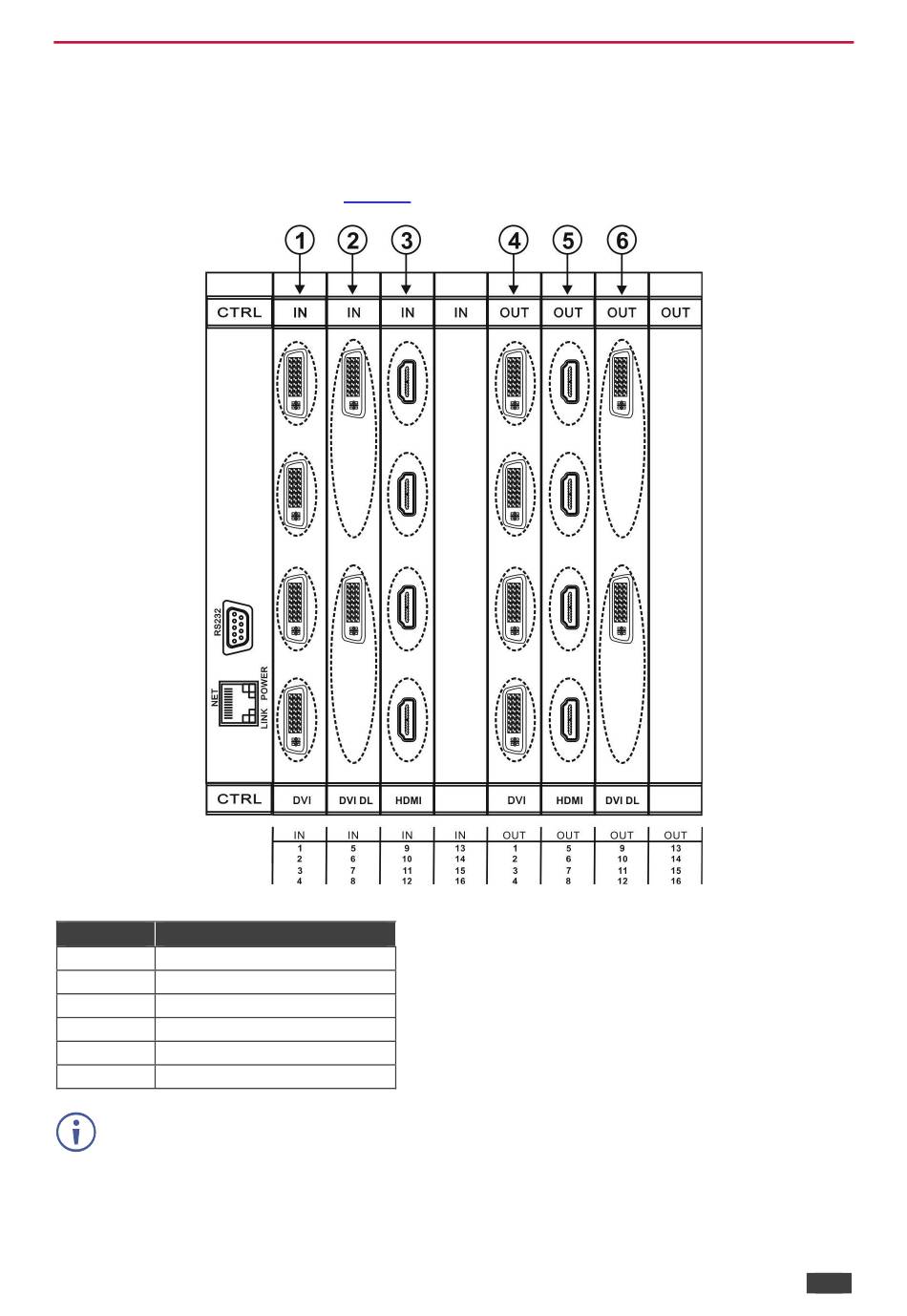

Figure 5: Sample Port Numbering
Kramer Electronics Ltd.
14
