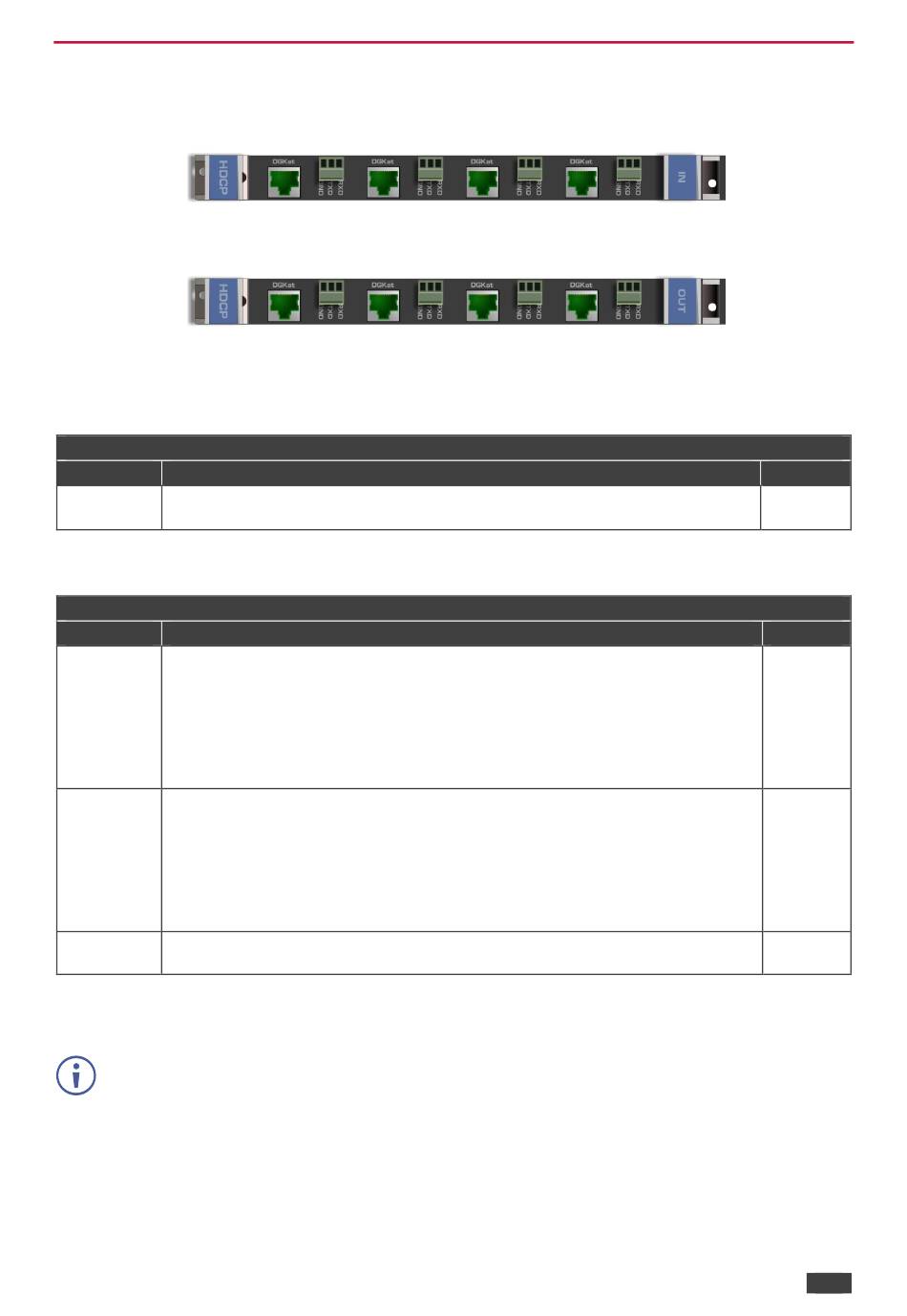

Defining the DGKat-IN4-F32 / DGKat-OUT4-F32

The DGKat-IN4-F32 is a 4-Input HDMI & RS-232 over DGKat Card (F-32):
The DGKat-OUT4-F32 is a 4-Output HDMI & RS-232 over DGKat Card (F-32):
DGKat-IN4-F32 / DGKat-OUT4-F32 Configuration
The DGKat-IN4-F32 configuration table appears as follows:
DGKat-IN4-F32 Input Card
Parameter
Description
HDCP
Turn HDCP on and off.
*0=EN, 1=DIS.
The DGKat-OUT4-F32 configuration table appears as follows:
DGKat-OUT4-F32 Output Card
Parameter
Description
HDMI
Sets the output signal format (Display, HDMI, DVI).
Display—the output is set automatically based on the EDID of the connected
display.
HDMI—Force the output to be HDMI.
DVI—Force the output to be DVI.
Note: When selecting the DVI option and fast switching is enabled, you must
ensure that the source is DVI compatible.
Deep Color
Sets maximum color bit depth (Auto, 8 bit).
Auto—Set the color depth automatically.
8 bit—Limit the color depth to 8 bits.
Note: Deep color on DGKat is not supported at higher resolutions (1080p
@50/60Hz or WUXGA). When setting deep color to on, ensure that the
resolution does not exceed the DGKat maximum data rate of 4.95Gbps
(1.65Gbps per graphic channel).
Switch
When switching between different sources the switching time can be reduced
Speed
by setting the fast switch level (Ex-fast Switch, Fast Switch or Normal Switch).
DGKat-IN4-F32 / DGKat-OUT4-F32 Technical Specifications
DGKat cards must be used with shielded twisted pair cables with RJ-45 connections, such as
the Kramer BC-UNIKAT. For more information, see the DGKat Installation Guide. DGKat
cards support Deep Color only at resolutions of 720p and lower.
VS-3232DN-EM – Using the Input / Output Cards
Kramer Electronics Ltd.
Default
0
Default
Display
Auto
Normal
Switch
56
