Using the Input / Output Cards

This section defines the input / output cards and their relevant parameters.
Not all options are displayed for every menu selection. Some parameters depend on the
specific selection of other parameters.
The volume control provides only attenuation, not gain. Hence, setting volume to 100%
provides 0 attenuation.

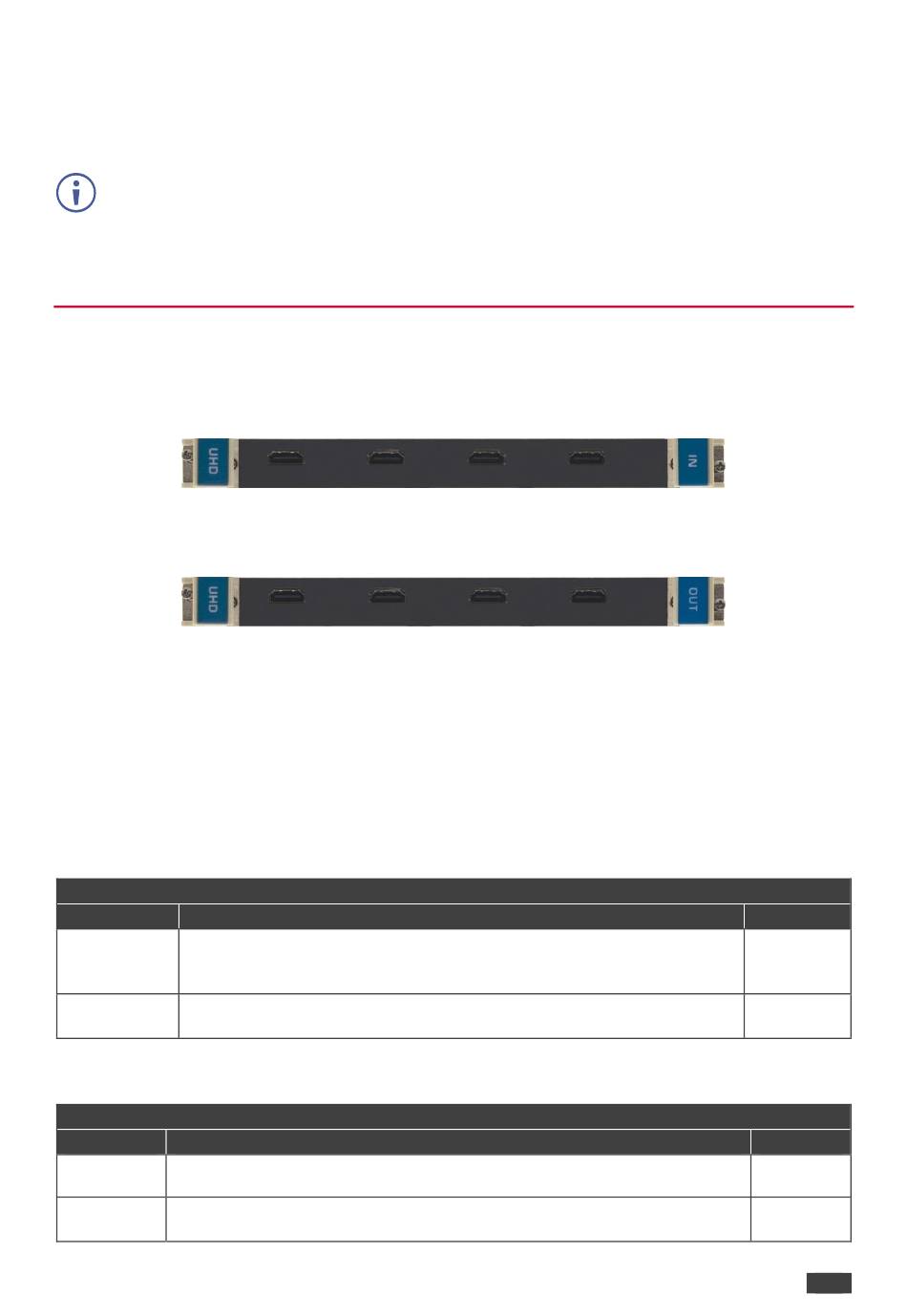

Defining the UHD-IN4-F32 / UHD-OUT4-F32

The UHD-IN4-F32 is a four-channel 4K60 4:2:0 HDMI input card. The UHD-IN4-F32 inputs
four HDMI signals into the chassis:
The UHD-OUT4-F32 is a four-channel 4K60 4:2:0 HDMI output card. The UHD-OUT4-F32
outputs four HDMI signals from the chassis:
The UHD-IN4-F32 and UHD-OUT4-F32 cards feature:
•
ARC support.
•
EDID Capture – Copies and stores the EDID from a display device.
•
Kramer Equalization and re-Klocking™ Technology.
UHD-IN4-F32 / UHD-OUT4-F32 Configuration
The UHD-IN4-F32 configuration table appears as follows:
UHD-IN4-F32 Input Card
Parameter Description
HDCP Turn HDCP on and off.
*0=EN, 1=DIS.
Note: Analog audio is still transmitted when HDCP is disabled.
Reset Input Re-power: power cycles the port.
Factory: performs a factory reset to default values of the port.
The UHD-OUT4-F32 configuration table appears as follows:
UHD-OUT4-F32 Output Card
Parameter Description
Switch When switching between different sources the switching time can be reduced
Speed by setting the fast switch level (Fast Switch or Normal Switch).
Reset Re-power: power cycle the port.
Output
Factory default: perform a factory reset of the port to default values.
VS-3232DN-EM – Using the Input / Output Cards
Kramer Electronics Ltd.
Default
0
Re-power
Default
Normal
Switch
Re-power
