IR Wiring Scheme for HDBT Cards
HDBT cards that support IR include either a 3.5mm jack or a terminal block for connecting an
IR emitter, such as the C-A35M/IRE, or an IR receiver, such as the C-A35M/IRRN.
To connect an IR emitter / receiver:
•
Using the supplied terminal block connector, connect an IR emitter / receiver according
to the wiring scheme in
The terminal block size and supplied connector differs according to the type of HDBT card.
However, the wiring scheme for connecting the IR emitter / receiver is the same for all HDBT
cards.
VS-3232DN-EM – Using the Input / Output Cards
Figure
13:

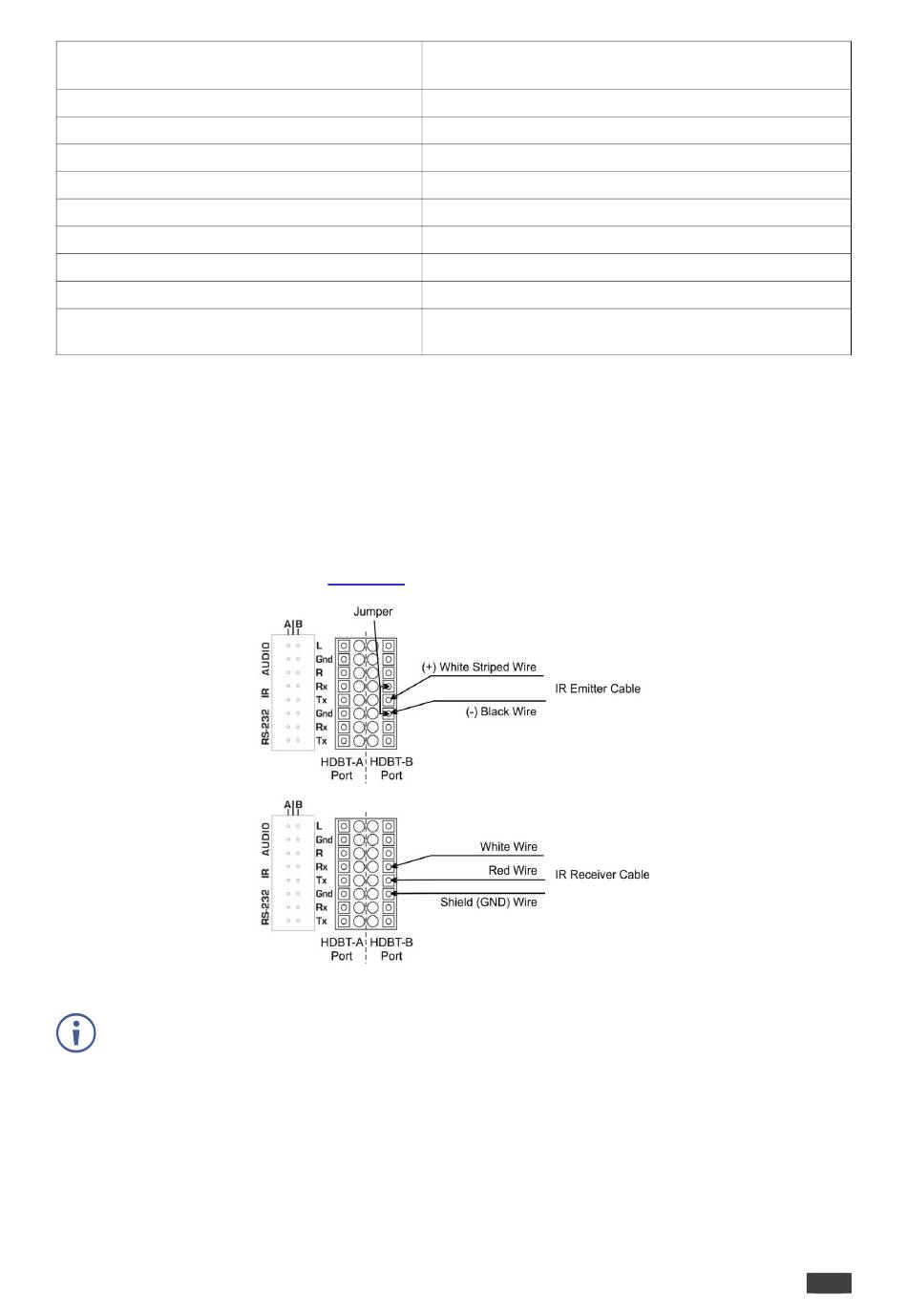

Figure 13: Connecting IR Emitter / Receiver to the HDBT-B Port
Input card: 28W
Output card: 19W
0° to +40°C (32° to 104°F)
–40° to +70°C (–40° to 158°F)
10% to 90%, RHL non-condensing
22cm x 18.8cm x 2cm (8.7" x 7.4" x 0.8") W, D, H
0.23 kg (0.51 lbs) approx.
0.37 kg (0.82 lbs) approx.
HDCP 1.4, HDMI 1.3a, HDBaseT
CE
Complies with appropriate requirements of RoHs and
WEEE
